Connection of shipyard-side wiring
100
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

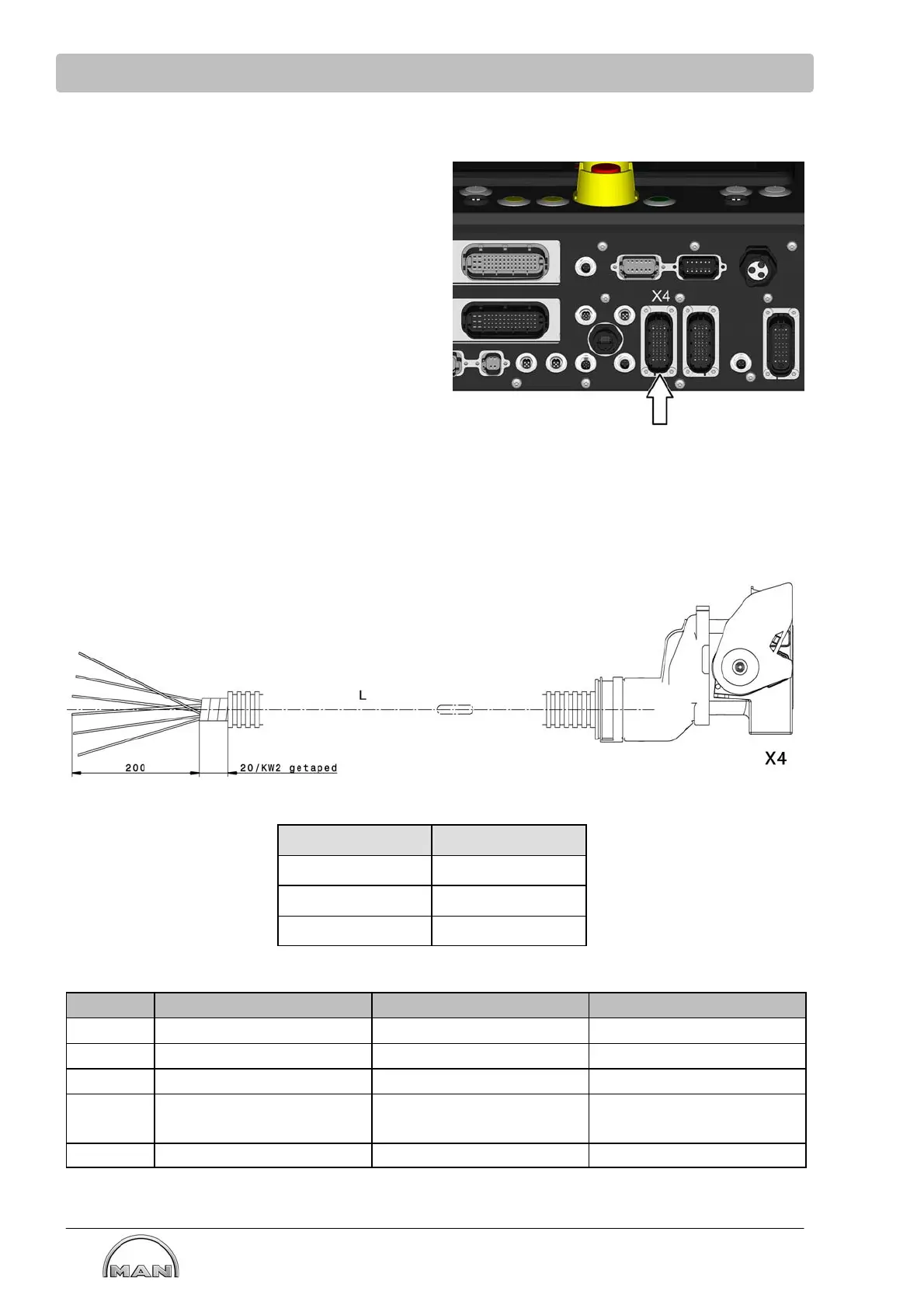

10.2 The shipyard plug X4
The interface for the following connections is at
plug X4 (1) of the E-box:
- Voltage supply
- Ignition lock
- Engine start
- Engine stop
- Emergency stop
- Alarms/horn
- Start blocking
The 32-pin mating plug (shipyard plug) is supplied
by MAN.
A wiring diagram for the connection of a ignition
lock for operation of the ignition can be found on
page 101.
Connecting cable
Length L Part number
10 m 51.25411-6114
20 m 51.25411-6093
29 m 51.25411-6124
Plug X4 consisting of:
Piece MAN part number Designation Part number
1x 51.25435-0278 Plug SRK06-MDA-32A-001
1x 51.25435-0283 Backshell SRK-BS-MD-ST-001
10x 07.91216-0476 Socket 20 1062-20-0244
4x 51.25432-0072
51.25432-0061
Socket 16 1062-16-0144
0462-209-1631
18x Seal Plug 20 0413-204-2005
