Drive lever control unit
53
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

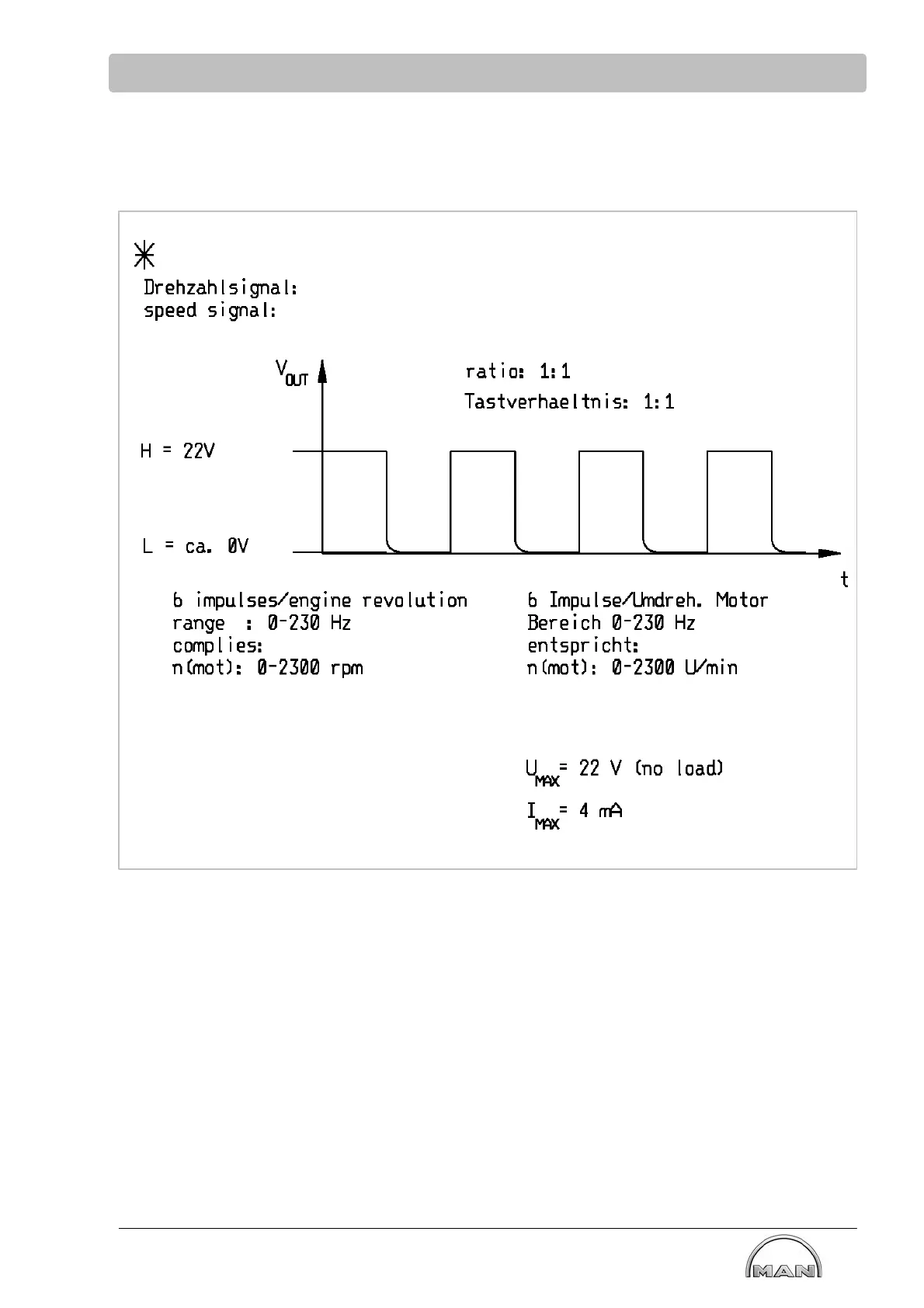

7.2.3 Speed signal for engine synchronization
A supplied speed signal is provided at plug X9, pin B7 (-) and C7 (+).
This can be input into the drive lever control unit for engine synchronization purposes.
R
out
300 Ω
U
max
15V (at idle
I
max
48 mA (with short circuit)
f
max
800 Hz (at 8000 rpm)
Duty cycle 50% (symmetric
signal)
0-8000 rpm ⇔ 0-800 Hz
tmax = 500 ms
