Installation
57
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.
8.2 Installation of electronics box (E-box)
DANGER
Risk of life from incorrectly-installed safety equipment
For this reason:
S In an emergency it must be possible to shut down the engine rapidly and reliably in the engine room.
S It must be possible to reach the red emergency stop button on the E-box rapidly and securely.
S Keep access to the safety equipment/devices clear.
NOTICE
False alarms due to missing or inadequate grounding of the E-box
For this reason:
S Connect ground connection of the E-box with the ship potential and the engine block.
Recommendation: Mount the E-box close to the access (door/hatch) of the engine room.
S Attach the E-box vertically on a side wall of the engine room
S Ensure free space to open the hatch
S Maintain distance of H = 200 mm so that the plug can be connected to the E-box

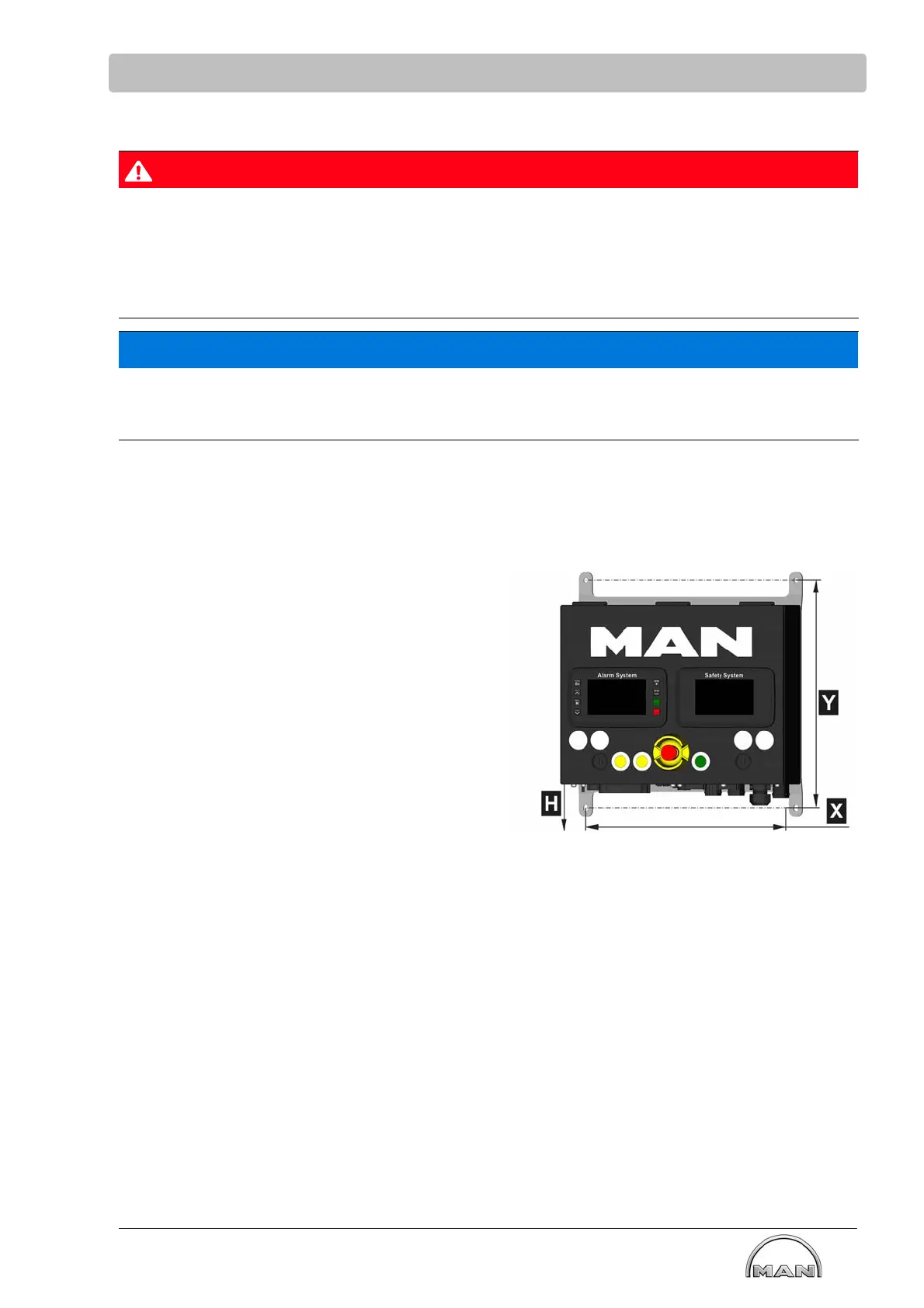

Drilling pattern for bracket:
bore Diameter 8.5 mm (4x)........
Dimension X 392.5 mm.
Dimension Y 419 mm.
To guarantee strain relief of the connecting
cables, the cables must be attached at
approximately H = 400 mm!
