9.1.3 Display menu engine room display
Depending on the equipment and the application of the engines, some display functions are restricted or
not available. The versions shown here show the maximum potential applications of the display functions.

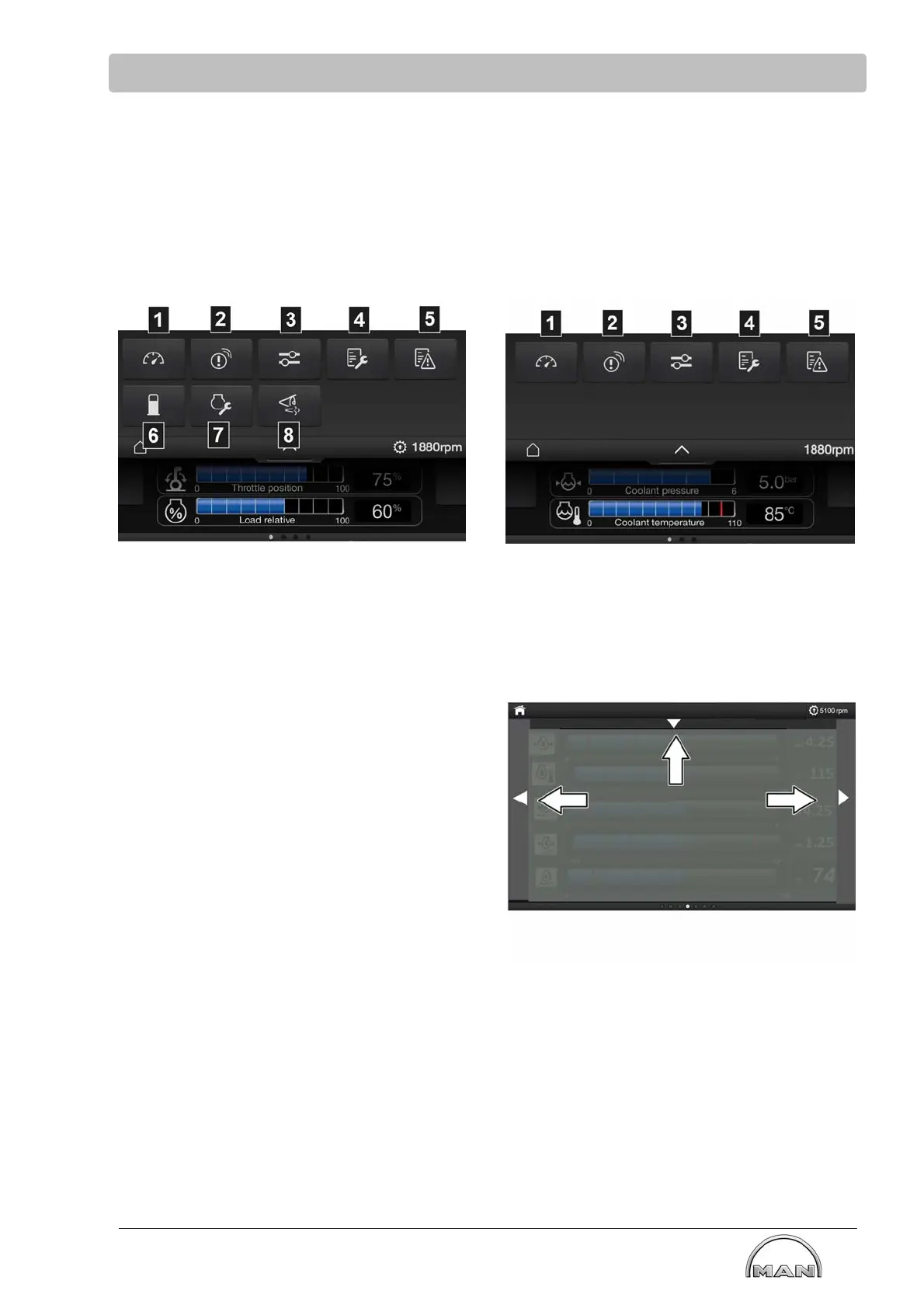

Main menu
Display alarm system Display safety system
(only with classified version)
(1) Main page
(2) Alarm page
(3) Settings
(4) Service page
(5) Electronic control units error memory (output)
(6) Fuel consumption page
(7) Engine settings
(8) Aftertreatment system page
Switch to main menu is effected via an arrow
under the title line.
Further query of operating values is effected via
the arrow on the left/right (page change).
The page number of a sub-menu is shown in the
footer line.
Overview of symbols in the display header line, page 97
