Override system
105
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

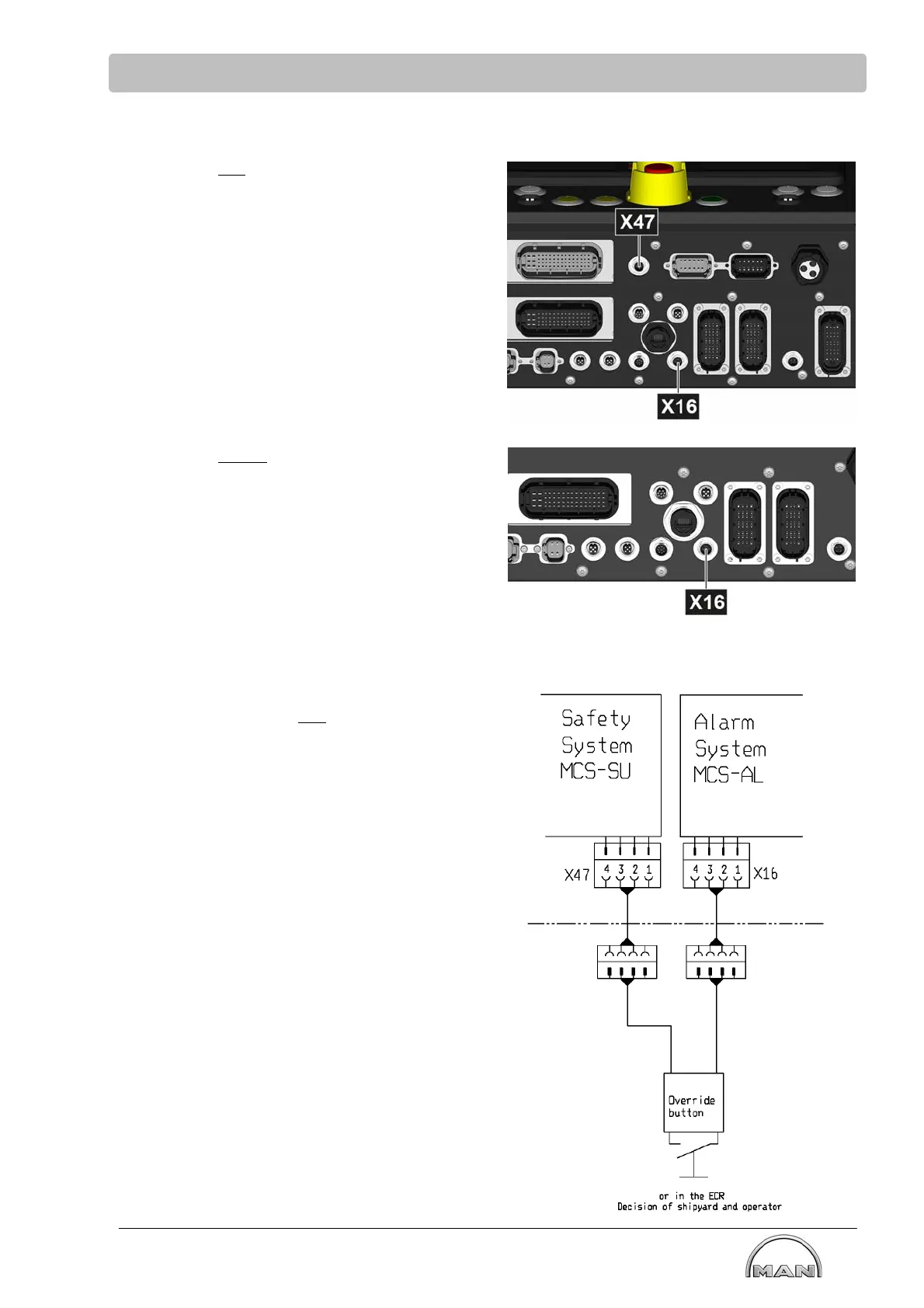

11.3 Wiring of the override button
For the E-box with acceptance:
The override button is connected to the plug X16
(alarm system) and X47 (safety system)
For the E-box without acceptance:
The override button is connected to the plug X16
(alarm system).
Connection of override
- MCS-SU control unit (safety system)
(Only installed for E-box with acceptance)
- MCS control unit (alarm system)
Design and function of the control units,
see page 38.
