9.1.2 Keyboard functions of the engine room display
The engine room display has a resistive touchscreen. Since this responds to pressure it can be operated
with a finger or with gloves. A “swiping” function is not available.
The display is a display system which shows engine operating values that it receives from the alarm
system or the safety system via the monitoring CAN. Among other things, the engine and the gearbox can
also be “locally” controlled via the tactile buttons (only alarm display).

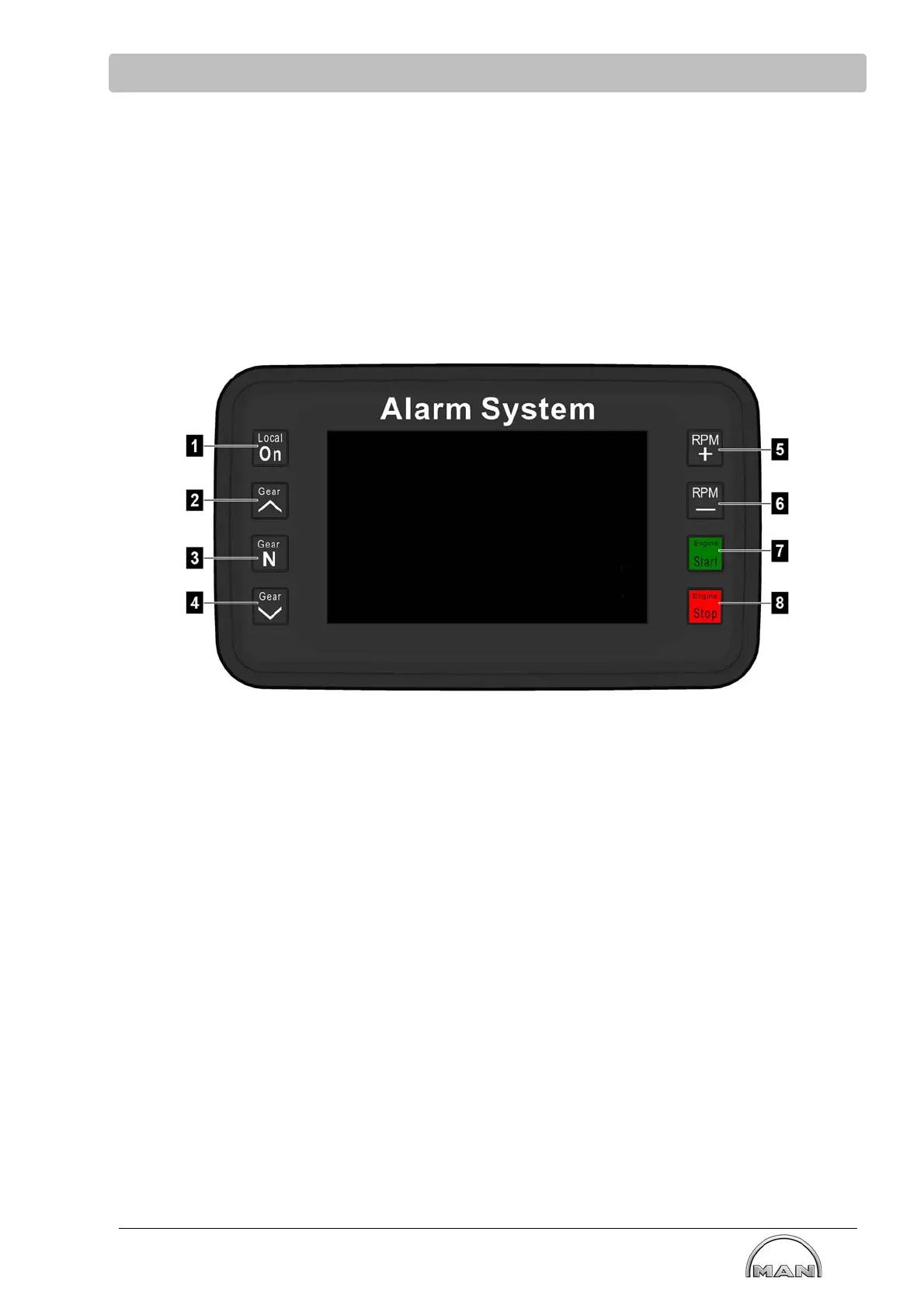

(1) Local ON*
(2) Gearbox forwards
(3) Gearbox “N” (neutral)
(4) Gearbox reverse
(5) Engine speed increase
(6) Engine speed reduction
(7) Engine start
(8) Engine stop
*The “Local ON” button is labeled “Local ON/OFF” in the non-classified version.
