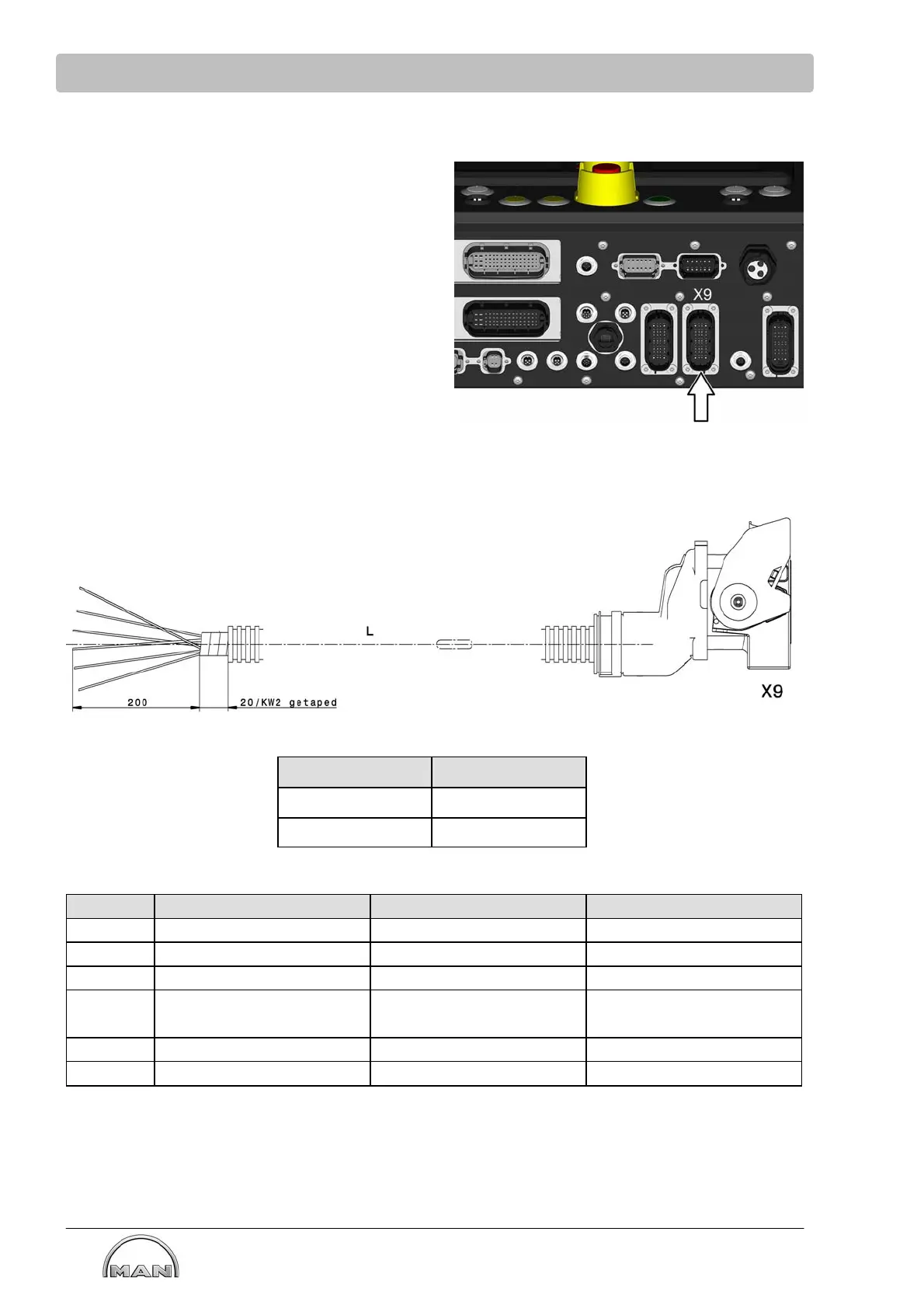

7.2.1 Plug assignment X9
The EDC speed signal is output by the MCS
potential-free and can be used at the E-box at
plug X9 for engine synchronization.
Connecting cable
Length L Part number
3 m 51.25411-6100
5 m 51.25411-6101
X9 connector set consists of:
Piece MAN part number Designation Part number
1x 51.25435-0279 Plug SRK06-MDB-32A-001
1x 51.25435-0283 Backshell SRK-BS-MD-ST-001
14x 07.91216-0476 Socket 20 1062-20-0244
3x 51.25432-0072
51.25432-0061
Socket 16 1062-16-0144
0462-209-1631
14x Seal Plug 20 0413-204-2005
1x Seal Plug 16 0413-003-1605
