Installation
61
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.
8.6 Installation of the bridge display
The touch display is designed for installation in a control panel, e.g. in a bridge control desk. In terms of the
installation position, care should be taken that the optimum field of view of the display matrix is 90°
horizontal (60° left, 70° right), as well as 90° vertical (75° top, 75° bottom).
Displays are to be installed at an accessible distance.
Installation location: Open “Bridge” and/or “Engine control room”
The touch display can be delivered in 5 or 7 inch.
The 5 inch touch display is only available for the non-classified version.

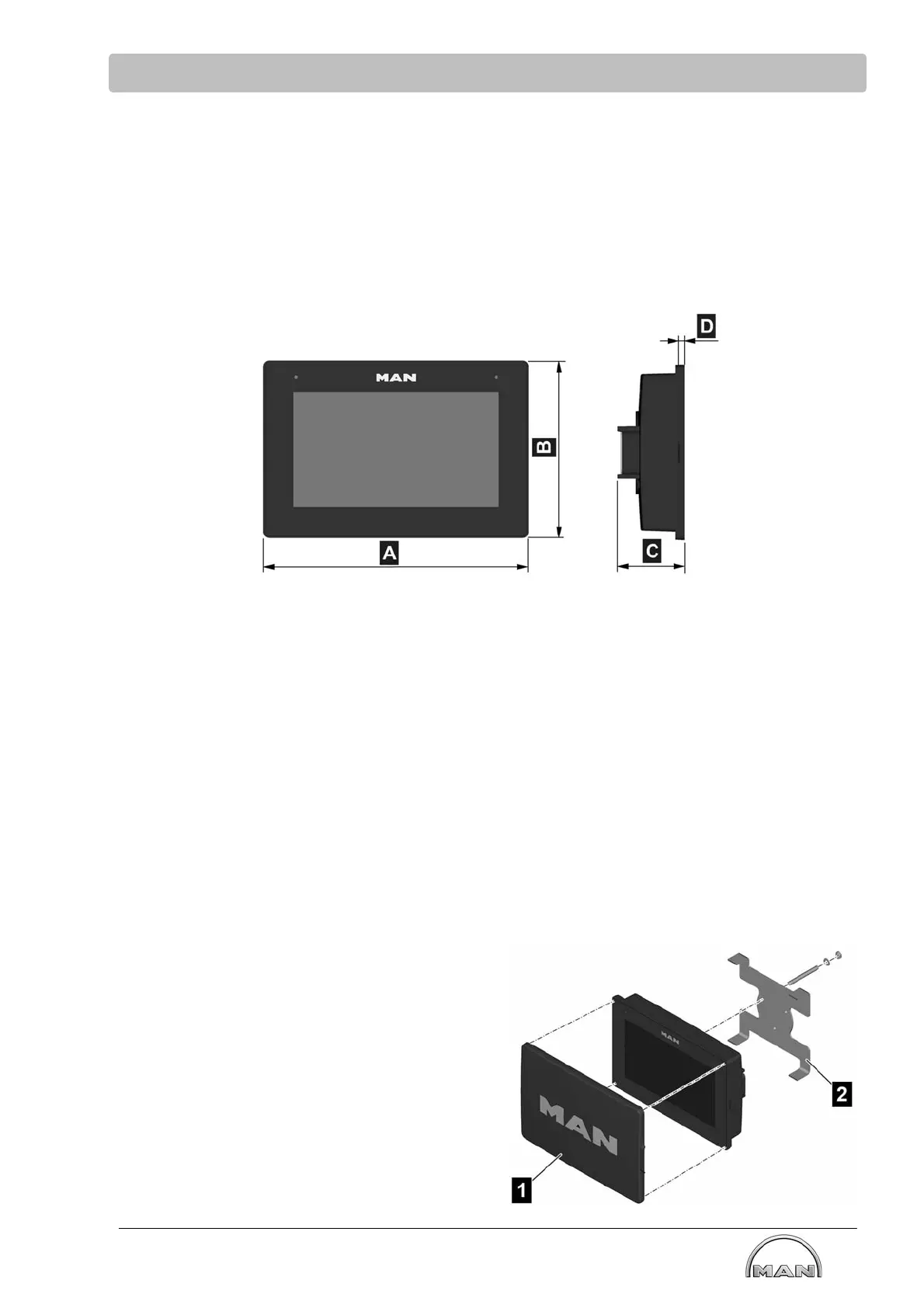

Dimensions:
7 inch display
Dimension A 201 mm...........................................................................
Dimension B 135 mm...........................................................................
Dimension C 51 mm............................................................................
Dimension D 7.4 ± 0.5 mm......................................................................
Control desk cut-out for 7 inch display * 192.6 x 130.6 mm, corner radius 4 mm........................
5 inch display (is only available for the non-classified version)
Dimension A 146.5 mm.........................................................................
Dimension B 113.1 mm.........................................................................
Dimension C 50.9 ± 0.5 mm.....................................................................
Dimension D 4.9 ± 0.5 mm......................................................................
Control desk cut-out for 5 inch display * 136.2 x 107 mm, corner radius 4.2 mm........................
* Drilling jig for control desk cut-out included in delivery
Also included in the scope of delivery:
(1) Cover
(2) Bracket, incl. set screw, washer and nuts
