Installation
62
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

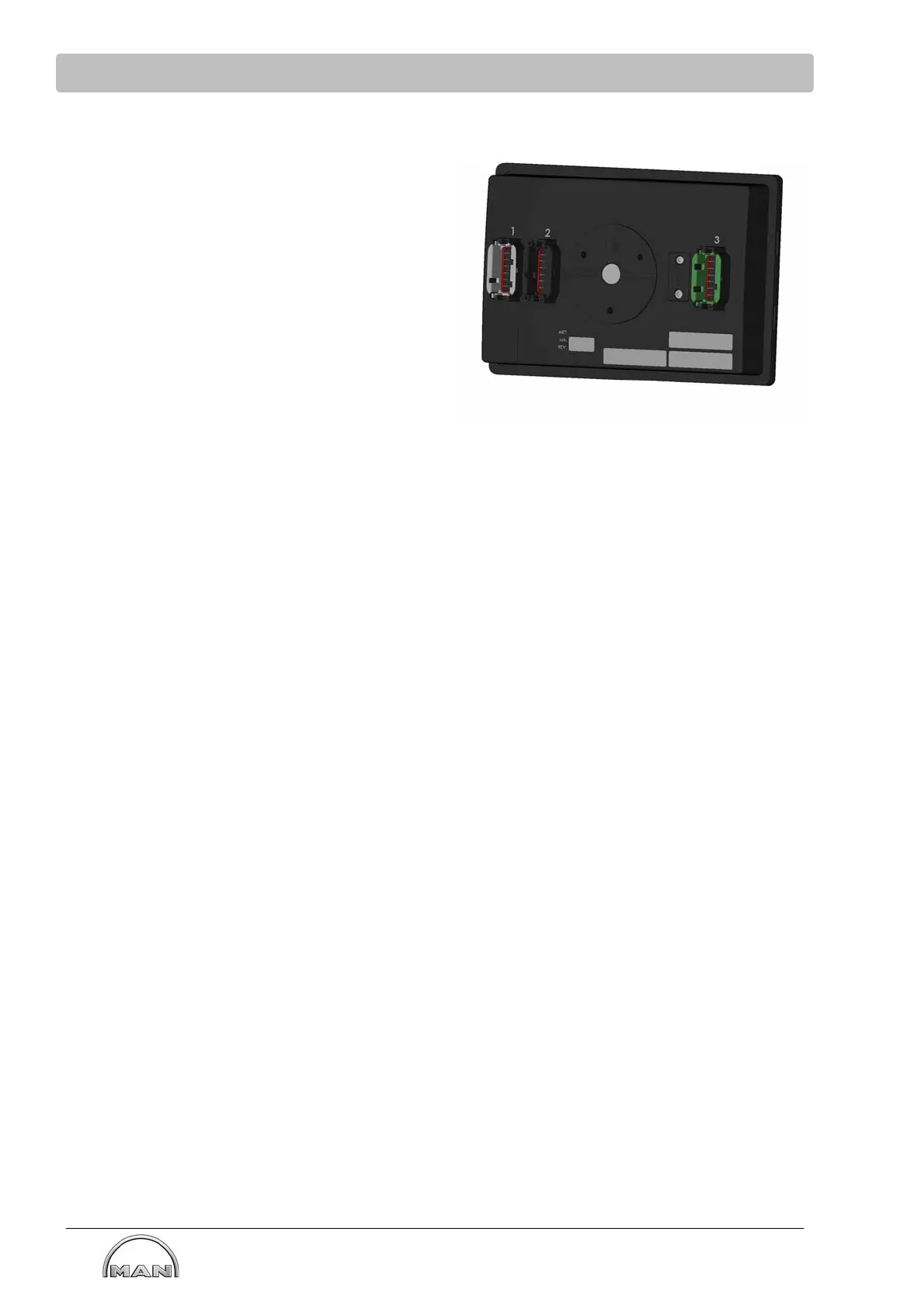

Connections for touch display
Connection (gray) for:
- Voltage supply
- CAN-1
- USB
- Digital output (only with 7 inch display)
Connection (black) for:
- Interface CAN-2, see page 138
- Video (only with 7 inch display)
Only present with 7 inch display,
Connection (green) for:
- Digital input
Connecting cables for bridge display, see page 116.
Technical data
Operating voltage 9 - 32 V......................................................................
Permissible operating temperature -30 to 75 °C....................................................
Protection class (front and back) IP 67...........................................................
