Connection of shipyard-side wiring
98
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.
10 Connection of shipyard-side wiring
10.1 Wiring of the bridge display

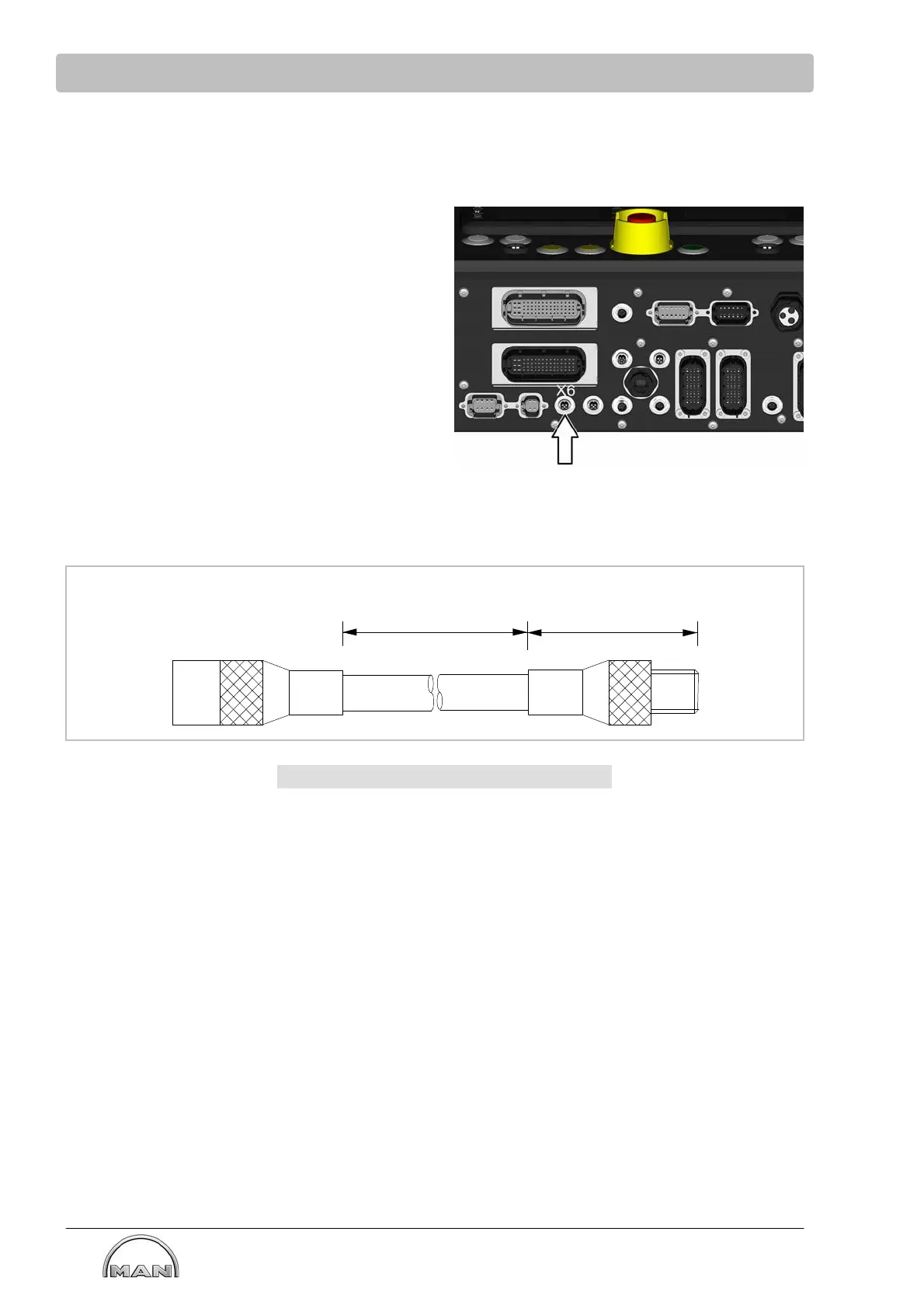

The CAN connecting cable for the display systems
and instruments is connected to the E-box at plug
X6.
The CAN cable must always be ended with a
terminating resistor. The CAN terminating resistor
must fundamentally always be attached to the last
device in the chain.
Connecting cable
Connecting cable/display ↔ E-box
L40
Bush
PIN
Length L Part number
2 m 51.25411-0025
10 m 51.25411-0026
15 m 51.25411-0015
20 m 51.25411-0016
25 m 51.25411-0027
tested/classified up to 29 m
30 m 51.25411-0032
40 m 51.25411-0001
