6 Design and function of the electronics box (E-box)
All important engine parameters are recorded by sensors. This data is captured by the E-box and
compared with saved target values.
If the registered engine parameters lie outside the permissible tolerance specifications, the system triggers
either a warning or an alarm/alarm with engine stop.
In the event of an alarm, the alarm system can reduce the power output and speed of the engine to
prevent consequential damage.
For the non-classified version, an engine stop can (optionally) be specified for certain engine
parameters in case of an alarm
The safety system (only for E-box with acceptance) monitors the engine separately and may/can trigger
an engine stop in the case of an alarm. Int he case of a defective alarm system, minimum monitoring of the
engine is still provided by the safety system.
6.1 Versions of the electronics box
E-box with acceptance (classified system)

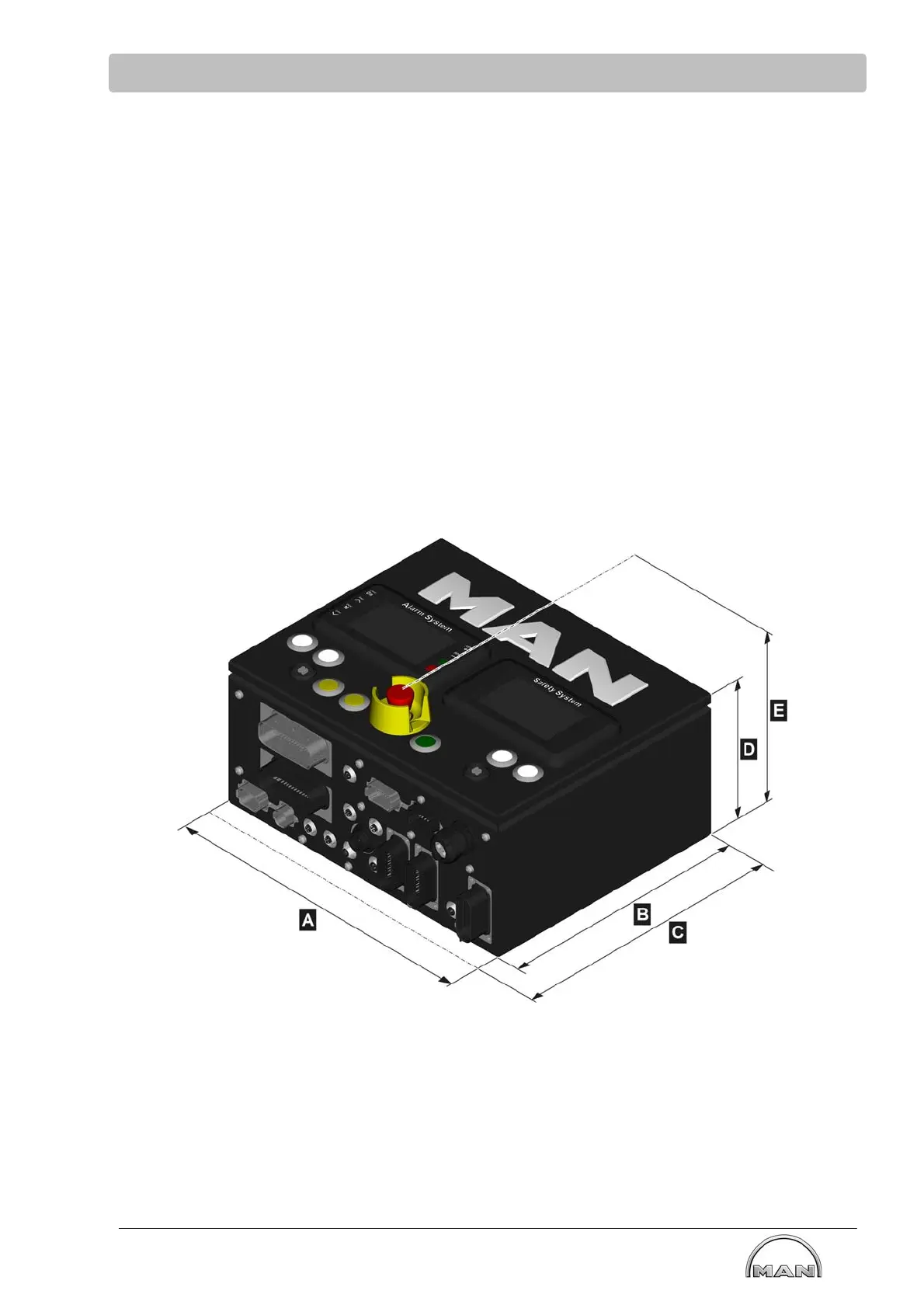

Weight and dimensions
Weight (with drive lever control unit) approx. 20 kg.................................................
Dimension A 417.5 mm.........................................................................
Dimension B 330 mm...........................................................................
Dimension C (with plugs) 370 mm................................................................
Dimension D 190 mm...........................................................................
Dimension E (with emergency stop) 224 mm.......................................................
Installation of electronics box (with bracket), page 57.
