Engine operation panels
112
Read this manual carefully before starting any work!
This is particularly applicable to the chapter General Safety Instructions and the
respective safety instructions in the chapters.
12.2 Engine Operation Panel EOP D
12.2.1 General

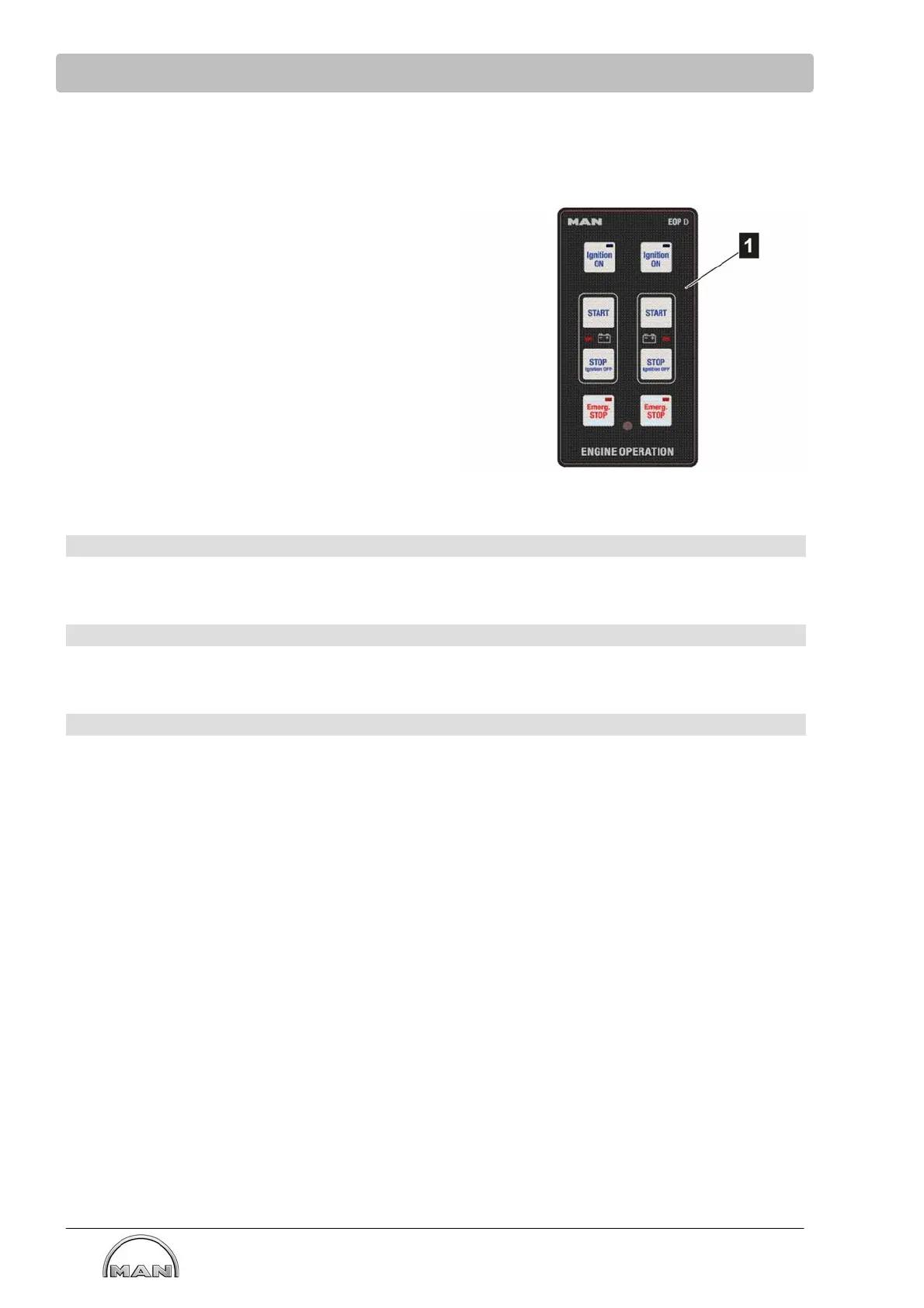

The Engine Operation Panel EOP D (1)
is a supplement to the EOP. The device is
equipped with a 2nd bridge for controlling a
twin-engine system.
It has the following functions:
- Ignition on/off
- Engine start/stop
- Emergency stop
- Monitoring the charge indicator
The Engine Operation Panel EOP D is optionally
available.
It can also be ordered subsequently and integrated
using plug connectors in the existing system.
Technical data
General data
Dimensions, W x H x D: 70 x 130 x 65 mm
Console section, Bx H: 60 x 113 mm
Weight: Approx. 0.5 kg
Environmental data
Operating temperature: -25 °C - +70 °C
Storage temperature: -30 °C - +85 °C
Protection class: IP 67 (front), IP 65 (rear)
Electrical data
Voltage supply: 9 - 32 VDC
Performance/power
consumption:
max. 400 mA
Interfaces, cable end: 2x M12 circular connectors (socket, 8-pin) to EOP
2x M12 circular connectors (socket, 8-pin) to EOP D
12.2.2 Installing the Engine Operation Panel EOP D
The Engine Operation Panel D is connected to the EOPs of both engines (starboard and port),
The last EOP D must be equipped with a terminating resistor.
For the dimensions of the Engine Operation Panel EOP D, see page 114.
