Control and operation
72
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

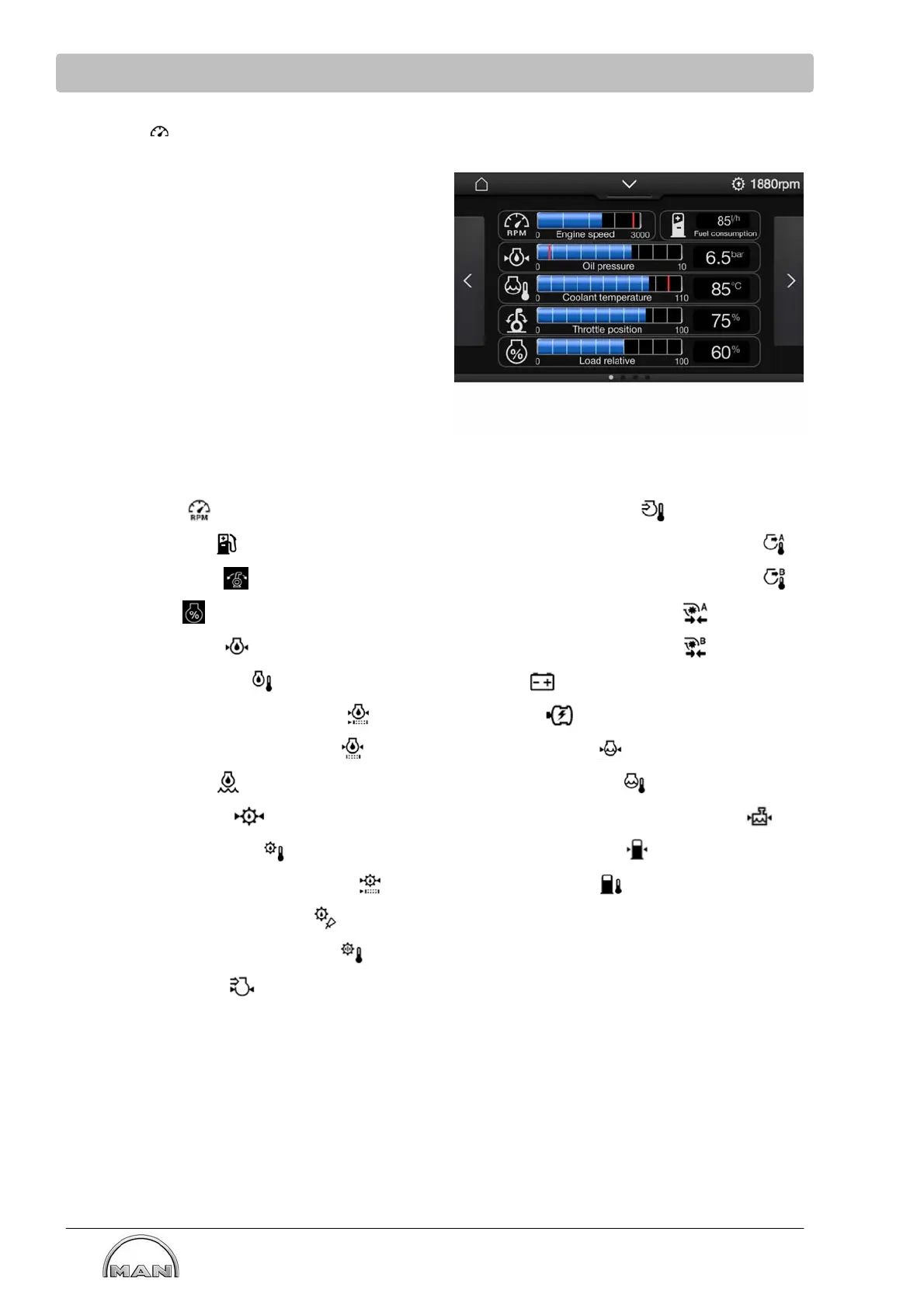

Main page
The main page is represented with bar graphs
(blue).
Some bar graphs have limit value lines.
The graph becomes red if the limit value line is
exceeded or not reached.
Non-acknowledged error message:
→ pulsing light around the bar.
Acknowledged error message:
→ static light around the bar.
The following values can be queried maximum:
S Engine speed
S Fuel consumption
S Drive lever position
S Relative load
S Engine oil pressure
S Engine oil temperature
S Engine oil pressure upstream of filter
S Differential pressure, engine oil filter
S Engine oil fill level
S Gearbox oil pressure
S Gearbox oil temperature
S Gearbox oil pressure upstream of filter
S Gearbox lubrication oil pressure
S Gearbox thrust bearing temperature
S Charge air pressure
S Charge air temperature
S Exhaust gas temperature before turbo A
S Exhaust gas temperature before turbo B
S Exhaust gas back pressure A
S Exhaust gas back pressure B
S Battery
S Alternator
S Coolant pressure
S Coolant temperature
S Coolant temperature in expansion tank
S Fuel supply pressure
S Fuel temperature
