Connecting
cable
120
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

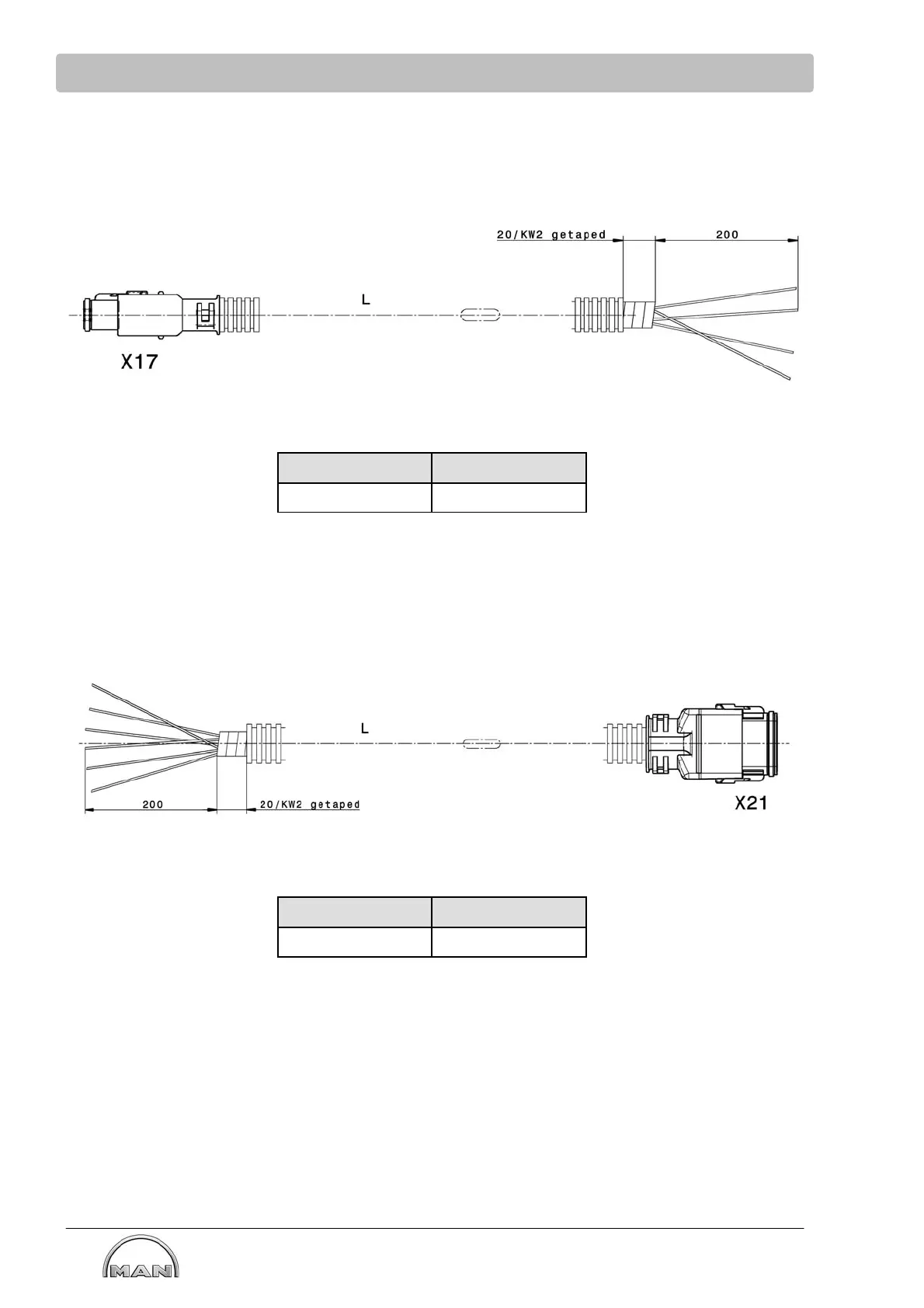

X17 E-box - “Local”/“Remote” display
Only for classified engines
Length L
Part number
8 m
51.25411-6102
X21 E-box - status messages (alarm system) to external ship alarm system
Only for classified engines
Length L
Part number
8 m
51.25411-6105
121
123
Table of Contents
Table of Contents
5
Preface
9
General
9
Copyright Protection
10
Safety Instructions
10
Liability for Material Defects
10
Explanation of Icons
11
General Safety Instructions
12
Introduction
12
Proper Use
12
Conversions and Modifications to the Engine and Aftertreatment System
13
Requirements of Personnel
14
Personal Protective Equipment
15
Special Hazards
16
Safety Equipment
19
Functional Test Emergency Stop on the E-Box
19
Conduct in the Even of Hazards and Accidents
20
Signage
21
Environmental Protection
22
Functional Safety
23
The Following Development Guidelines and Principles Apply
24
Definition of System Scope
24
Non Class" - Application
25
Class" Application
26
Boundary Conditions and Consequences of Non-Observance
27
Electromagnetic Compatibility (EMC)
28
System Overview
31
Design and Function of the Electronics Box (E-Box)
33
Versions of the Electronics Box
33
Components of the Electronics Box
36
Internal Drive Lever Control Unit MPC
36
Motherboards
37
Monitoring and Control System (MCS) - Control Unit
40
Connector Board
41
Drive Lever Control Unit
42
Internal Drive Lever Control Unit
42
Components of the Internal Drive Lever Control Unit
43
Wiring of the Internal Drive Lever Control Unit
44
Drive Lever Control Special Function on the Plug X88
49
External Drive Lever Control Unit
51
Plug Assignment X9
52
Voltage Supply
54
Speed Signal for Engine Synchronization
55
Start Interlock
56
Dimensions of Drive Lever
57
Installation
58
Safety Instructions
58
Installation of Electronics Box (E-Box)
59
Overview of Plugs on the Electronics Box with Acceptance
60
Overview of Plugs at the Electronics Box Without Acceptance
61
Interface E-Box - Engine
62
Installation of the Bridge Display
63
Control and Operation of the E-Box and the Displays
65
Keyboard Functions of the Electronics Box
65
Operating Engine from Engine Room (Classified)
67
Keyboard Functions of the Engine Room Display
71
Display Menu Engine Room Display
73
Bridge Display (Operator's Stand and Engine Control Room)
78
Display Menu Touch Display
79
Aftertreatment/Emissions History/Error Print Process
92
Aftertreatment System
92
Request System
93
Tier 4 Marine Requirements of the Request System
95
Connection of Shipyard-Side Wiring
100
Wiring of the Bridge Display
100
The Shipyard Plug X4
102
Connection of a Start and Stop Apparatus (in Case of Non Classified)
104
Connection of an Emergency Stop Button
105
Connection of an Acoustic Warning Apparatus
105
Override System
106
Function of the Override System
106
Installation of the Override Button
106
Wiring of the Override Button
107
Procedure Example of Override Function
110
Engine Operation Panels
112
Engine Operation Panel EOP
112
General
112
Wiring of the Engine Operation Panel EOP
112
Installing the Engine Operation Panel EOP
113
Engine Operation Panel EOP D
114
General
114
Installing the Engine Operation Panel EOP D
114
Connecting Cables for the Engine Operation Panels EOP and EOP D
115
Engine Operation Panel EOP
116
Engine Operation Panel EOP D
116
Connecting Lines
118
Parametrization Start/Stop on 7" Touch Display
124
Parametrization
124
Possible Error Messages
127
Parametrization of Emergency Drive on 7" Touch Display
129
Parametrization
129
Interface Description - Classified Engines
134
Interface Description - Non Classified Engines
138
Eec1
140
Interface CAN-2 on Bridge Display
140
General Instructions
140
Ship-CAN Interface (CAN-2 of the Displays)
140
Eec2
142
Turbocharger Info 4
142
Turbocharger Info 5
143
Engine Temperature
143
Fluid Level Pressure
144
Intake/Exhaust Conditions
145
Engine Electrical Power
146
Exhaust Fluid Tank
146
Transmission Fluids
147
Time/Date
148
Engine Hours
149
Fuel Economy
149
Fuel Consumption
149
Aftertreatment 1 SCR Service Info 2
150
Aux man Engine
150
DM_1_MAN-Engine
151
