Drive lever control unit
48
Read this manual carefully before starting any work!
This is particularly applicable to the chapter “General Safety Instructions”
and the respective safety instructions in the chapters.

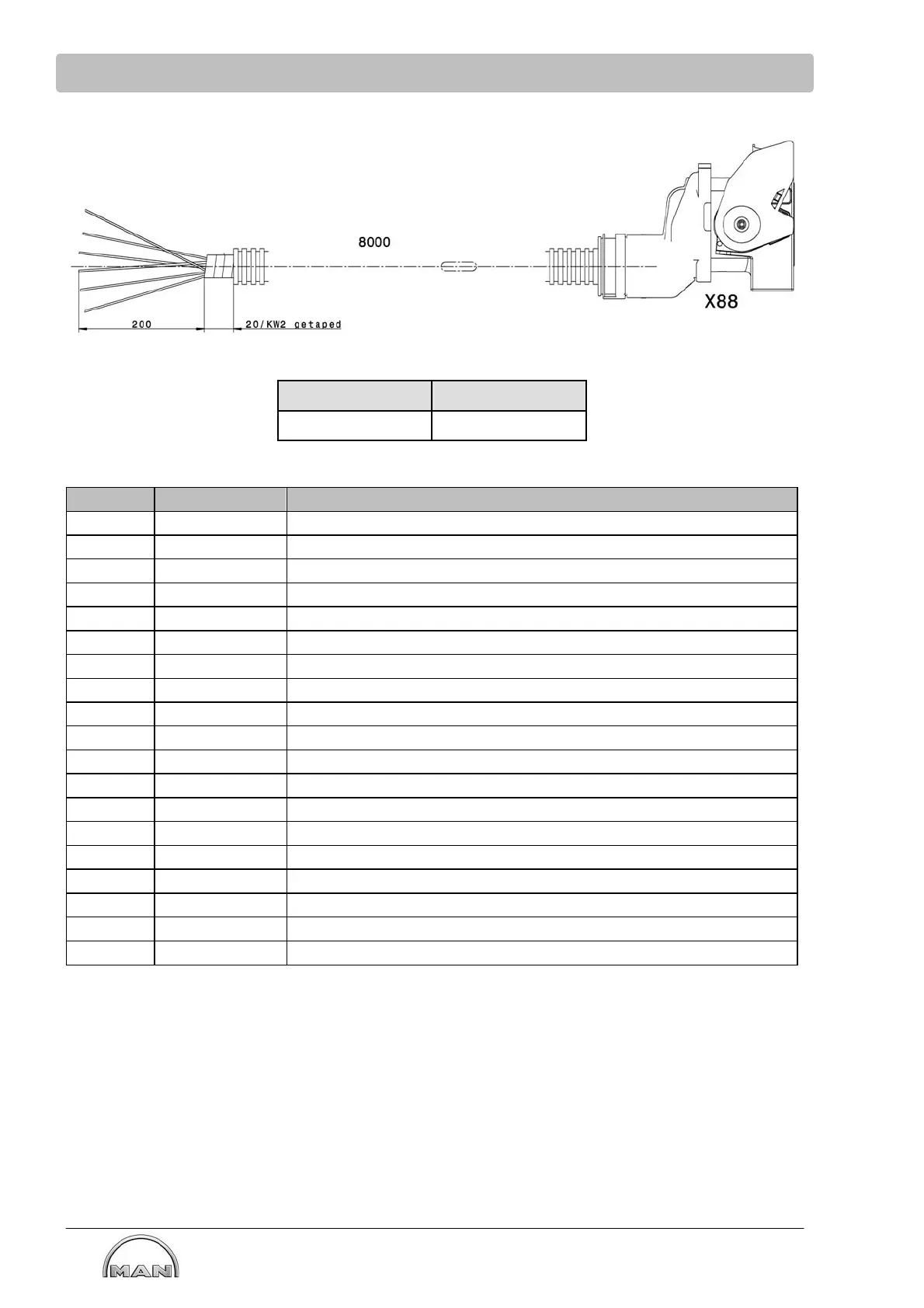

Connecting cable X88 E-box - gearbox function
Length L Part number
8 m 51.25411-6099
Connecting cable X88 - color and function
PIN Cable color Function
B1 black Trolling signal 4-20mA +OUT
C1 red/black Trolling signal 4-20mA -OUT
B2 blue Gearbox Ubat -OUT (oder X4/D1)
C2 red/black Trolling ON/OFF +OUT
B3 red Gearbox Ubat -OUT (oder X4/D1)
C3 black/white Slip & Grip ON/OFF +OUT
B4 green Proportional Ventil A +OUT
C4 blue/black Proportional Ventil A -OUT
B5 yellow Proportional Ventil B +OUT
C5 yellow/black Proportional Ventil B -OUT
B6 white Dig-IN Reserve +IN (DI6)
C6 brown/white Dig-IN Reserve -IN (DI6)
B7 violet Supply pick-up +OUT
C7 violet/black Supply pick-up -OUT
B8 brown Speed signal shaft +IN
C8 orange/black Speed signal shaft -IN
A6 red/black Dig-IN Reserve +IN (DI4)
D6 brown/white Dig-IN Reserve +IN (DI5)
D7 violet/white Dig-IN Reserve -IN (DI4/5)
