Maintenance work on the carrier
7.6 Transmission
7 - 44 3 302 744 en Maintenance manual
GMK5250L
09.03.2018

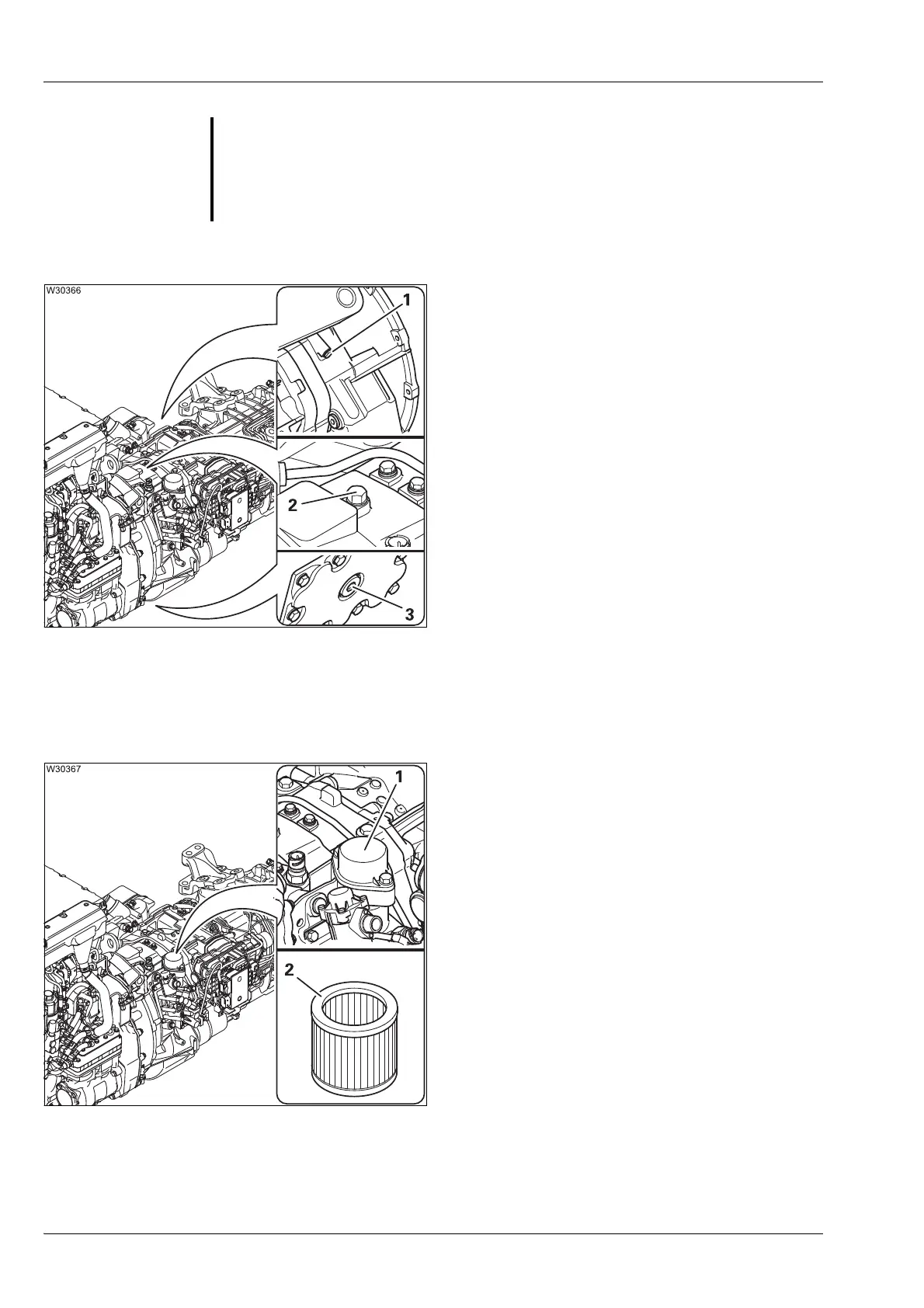

• Remove the drain screw (2).
• Place a receptacle under screws (1) and (3).
• Unscrew the screws (1) and (3) and allow the
oil to drain off.
• Clean the drain screws.
• Replace the gaskets and tighten the drain
screw (3) to torque 55 Nm (40.5 lbf ft).
• Replace the gaskets and tighten the drain
screw (1) to torque 24 Nm (17.7 lbf ft).
Changing the filter
• Remove the cover (1).
• Remove the old filter (2) from the casing.
• Place the old filter (2) in the receptacle.
• Insert a new filter (2) into the casing.
• Replace the cover gasket and the vent valve.
• Bolt the cover (1) on.
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
