Maintenance work on the carrier
7.6 Transmission
09.03.2018
Maintenance manual 3 302 744 en 7 - 45
GMK5250L

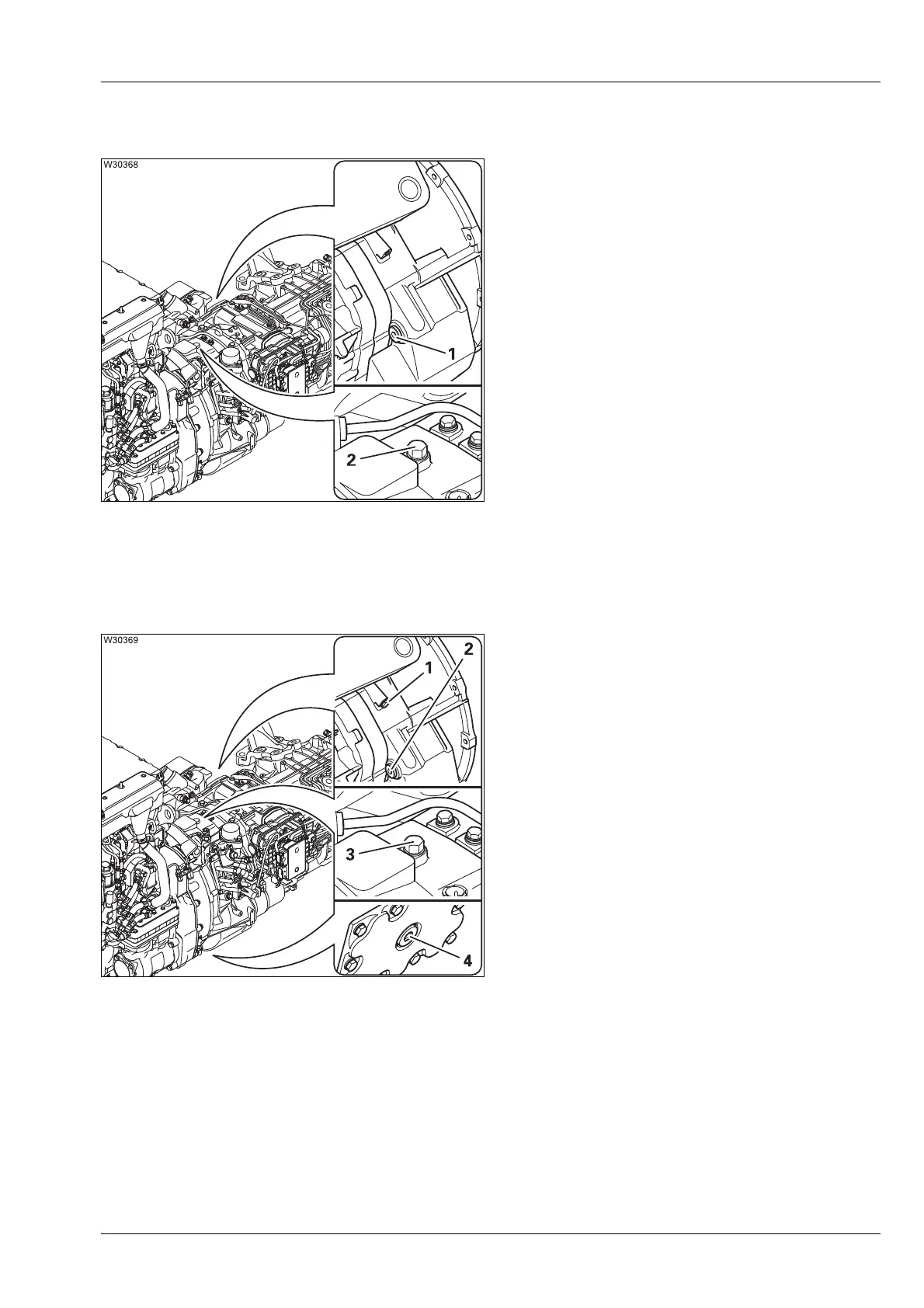

Topping up the oil
• Remove the drain plug (1).
• Top up oil through the hole (2) until oil
comes out of the hole (1).
• Replace the gasket and tighten the drain
plug (1) – torque 55 Nm (40.5 lbf ft).
• Replace the gasket and tighten the drain
plug (2) – torque 55 Nm (40.5 lbf ft).
Inspections after
the oil change
After changing oil, check for leakage:
• Start the engine and let it idle in neutral N.
• Check the screw plugs (1) to (4) for leakage.
