Manitowoc Grove GMK 5250L

Maintenance work on the carrier
7.9 Axle lines
7 - 62 3 302 744 en Maintenance manual
GMK5250L
09.03.2018
2
nd
and 5
th
axle
line

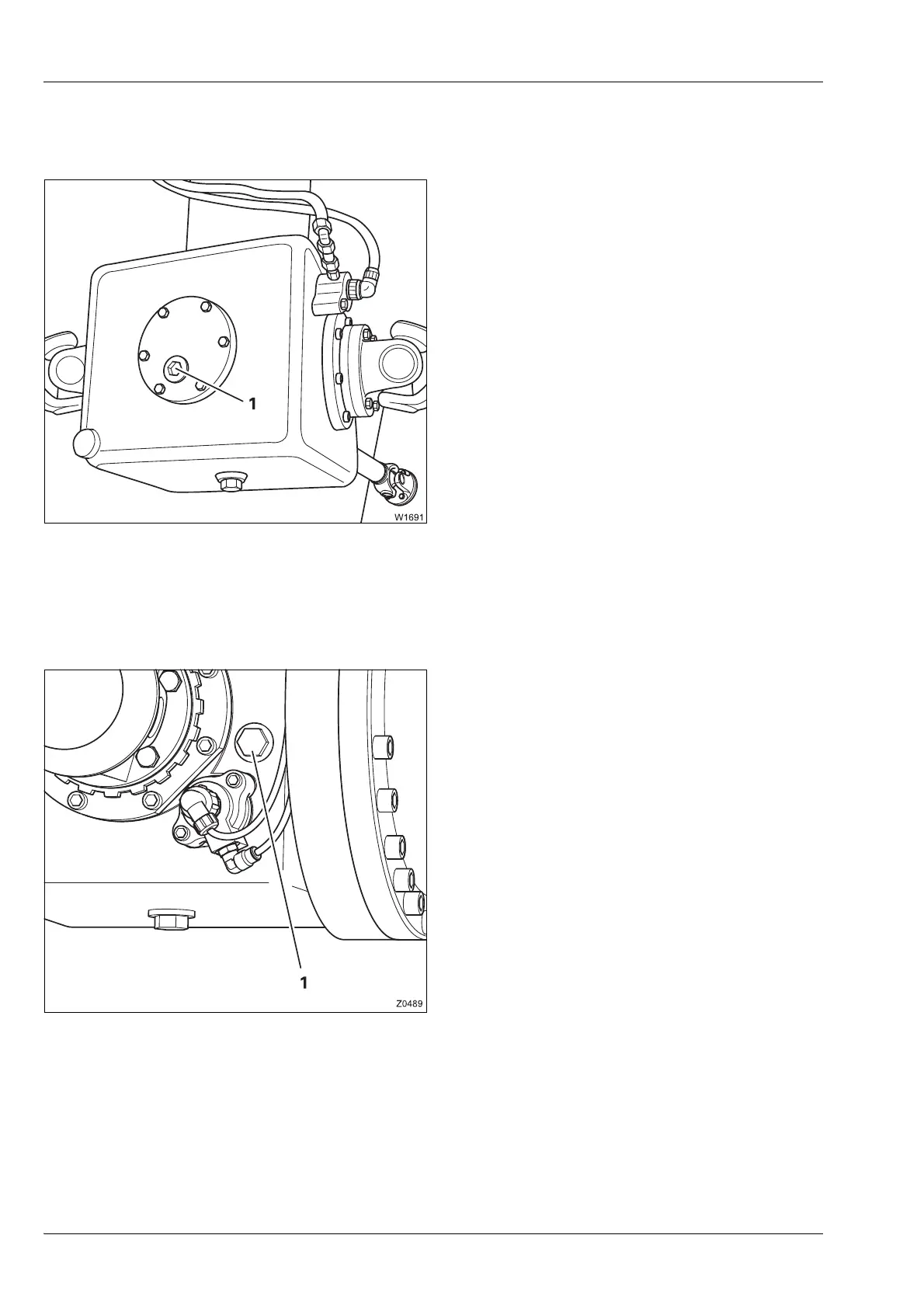

• Remove the drain plug (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the drain plug.
If the oil level is too low
• Top up the oil; à p. 7 - 64.
3
rd
axle line This axle centre drive is available only with the 10 x 8 x 10 drive and is
flanged directly to the transfer case;
à Transfer case, p. 7 - 49.
• Remove the drain plug (1).
• Check that the oil reaches the lower edge of
the opening.
• Fit a new gasket and tighten the drain plug.
If the oil level is too low
• Top up the oil; à p. 7 - 64.
