Grove Published 01-29-2015, Control # 512-01 6-11
TMS700E SERVICE MANUAL SWING SYSTEM
Removal
1. Remove the counterweight. Refer to the Operator
Manual.
2. Fully extend and set the outriggers enough to take up
the slack in the pads.
NOTE: Do not raise the machine on the outriggers.
3. Ensure the boom is in the travel position and the
turntable lock pin is engaged.
4. Elevate the boom slightly and shut down the engine.
5. Tag and disconnect the battery cables from the
batteries.
6. Remove the boom and lift cylinder following the
procedures outlined in Boom, page 4-1.
7. Tag and disconnect all water and oil lines from the
bottom of the swivel. Cap or plug all lines and openings.
8. Locate the connectors and ground wire that joins the
swivel wiring harness to the receptacles and ground
stud on the carrier.
1
2
3
4
5
6
7

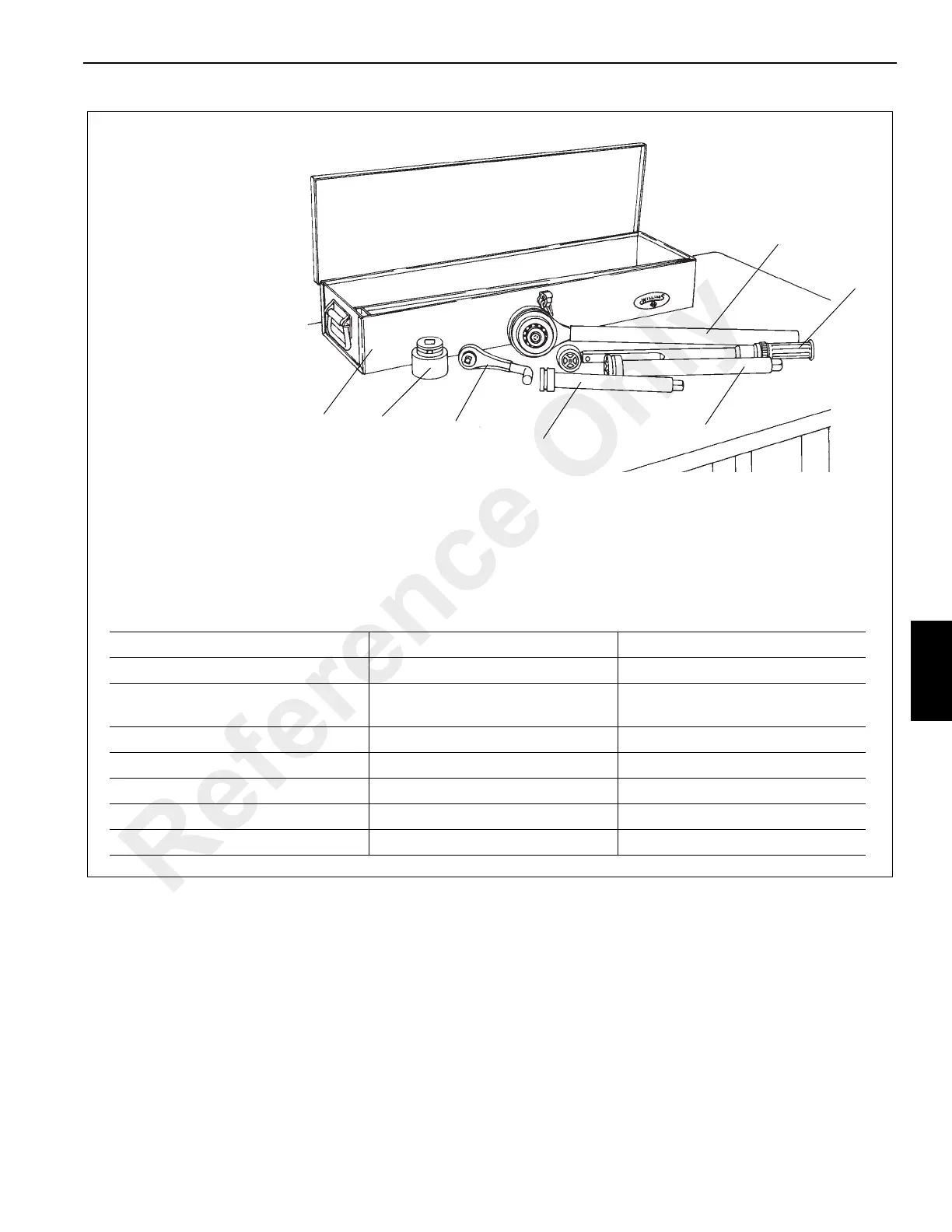

FIGURE 6-3
6633
Orders for special tools shall be referred to:
Manitowoc Crane Care
1565 Buchanan Trail East
P.O. Box 21
Shady Grove, PA 17201
Phone: 717-598-8121
Fax: 717-597-4062
Description Grove Part Number Quantity Required
1. 1 1/2” Socket 3/4” Drive 9999100143 1
2. 4 to 1 Torque Multiplier (1/2” Input
3/4” Output)
9999100134 1
3. Backlash Adapter 9999100141 1
4. 1/2” Drive Torque Wrench 9999100136 1
5. 10” Extension 3/4” Drive 9999100138 A/R
6. 13” Extension 3/4” Drive 9999100137 A/R
7. Tool Box (Optional) 9999100146 1
Reference Only
