SWING SYSTEM TMS700E SERVICE MANUAL
6-10 Published 01-29-2015, Control # 512-01
Torque Values
Refer to Fasteners and Torque Values, page 1-12 for the
torque value for the turntable bolts.
Tools Required
Figure 6-3 illustrates and lists the complete set of special
tools required to torque the turntable bolts.
Inner Race Torquing
1. Extend and set the outriggers. Fully elevate the boom.
2. Torque eight bolts to 80% of their specified torque value
using the following sequence pattern; 1, 23, 12, 34, 9,
28, 19, and 42 (see Figure 6-2). Tools used are the
socket, multiplier, backlash adapter, necessary
extensions, and torque wrench.
3. Return to bolt 1 and torque all bolts sequentially in a
clockwise direction to their final torque value specified.
The same tools are used as in step 2 (see Figure 6-2).
Outer Race Torquing
1. Extend and set the outriggers. Fully elevate the boom.
2. Torque eight bolts to 80% of their specified torque value
using the following sequence pattern; 1, 21, 11, 31, 6,
26, 16, and 36 (see Figure 6-2). Tools used are the
socket, multiplier, backlash adapter, necessary
extensions, and torque wrench.
3. Return to bolt 1 and torque all bolts sequentially in a
clockwise direction to their final torque value specified.
The same tools are used as in step 2 (see Figure 6-2).

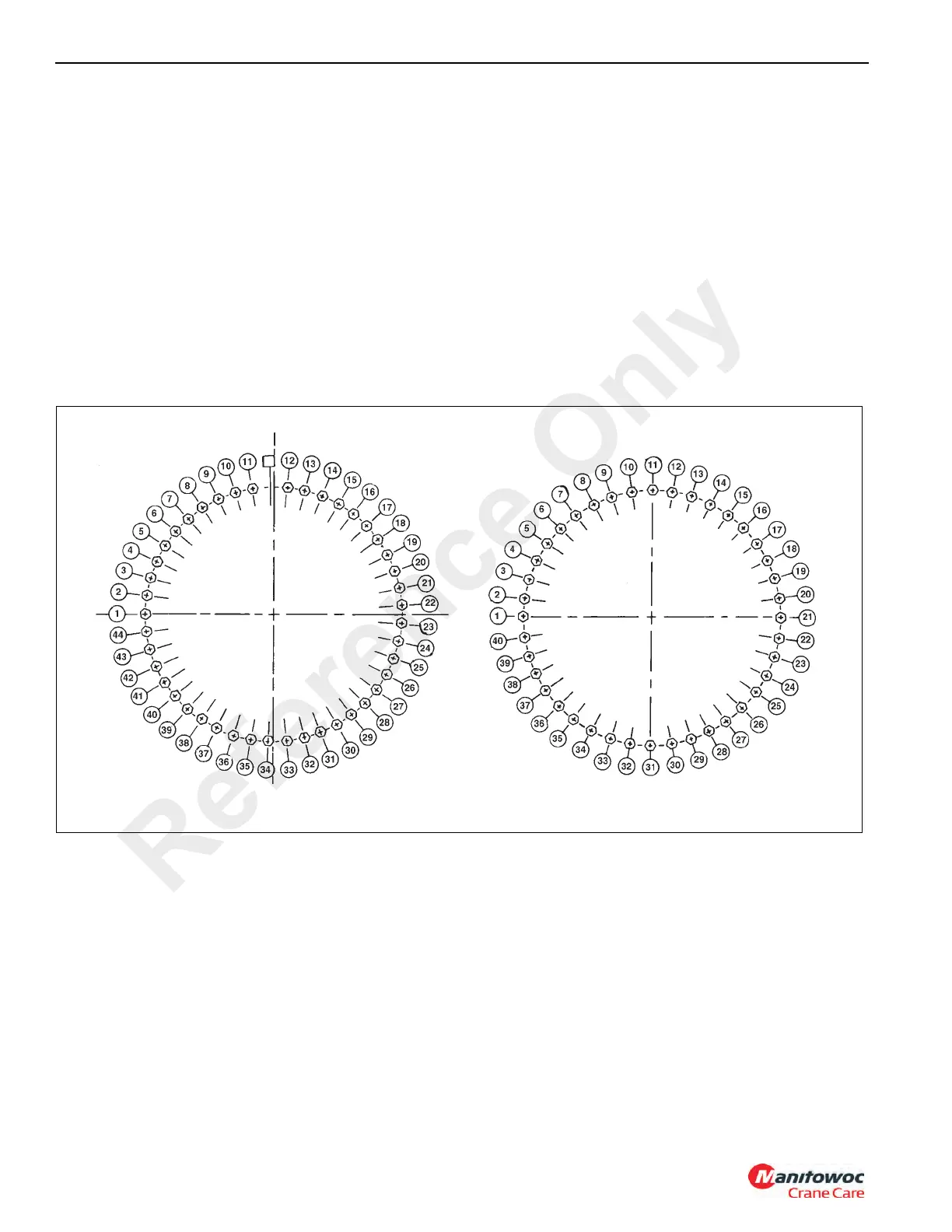

FIGURE 6-2
INNER RACE
OUTER RACE
