HYDRAULIC SYSTEM TMS700E SERVICE MANUAL
2-18 Published 01-29-2015, Control # 512-01
13
10
14
4
7
5
3
1
12
2
9
6
8
5
11

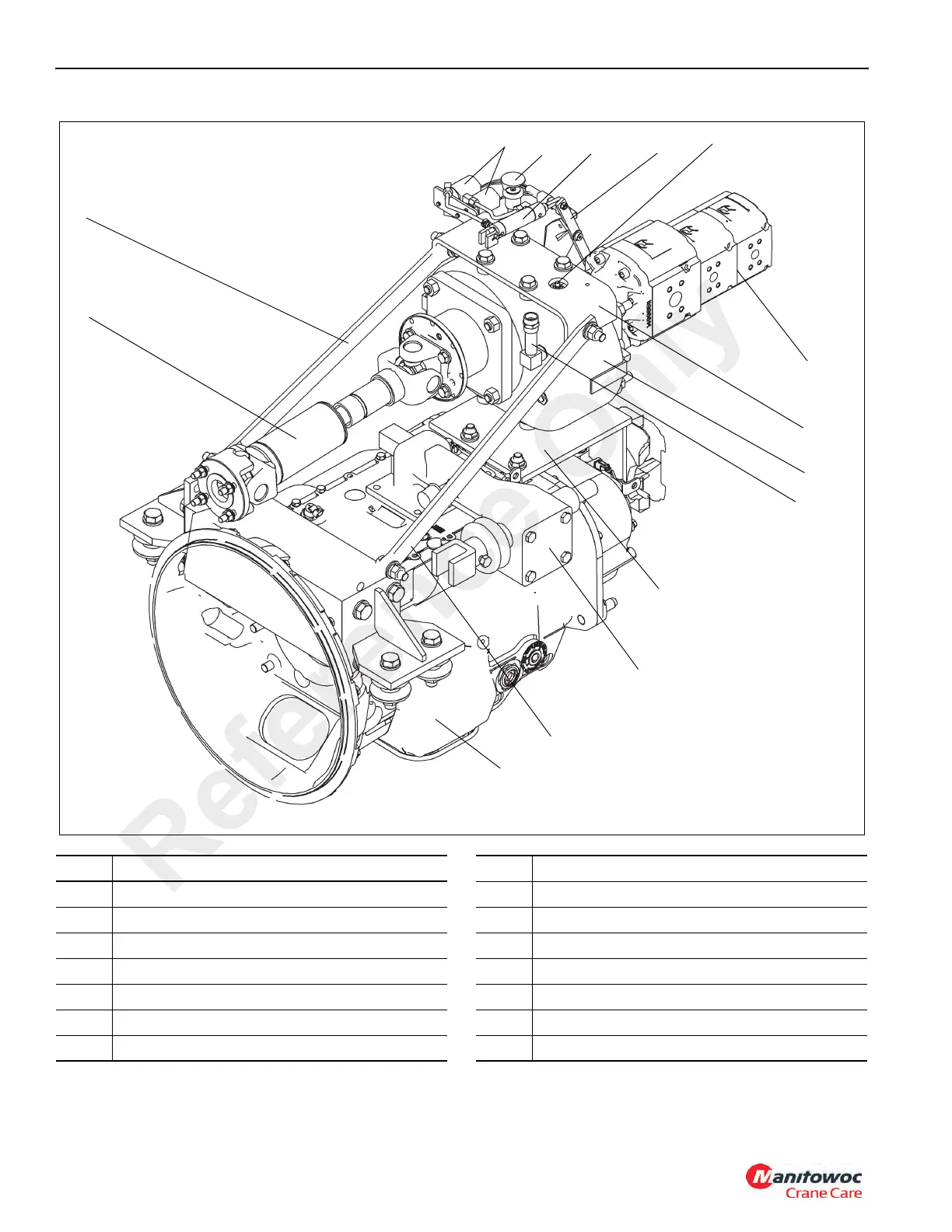

FIGURE 2-5
6875
Item Description
1 Hydraulic Pump
2 Pump Drive
3 Pump Drive Shaft
4 Disconnect Lever
5 Pump Drive Support Straps
6 Pump Drive Mounting Plate
7 Disconnect Indicator Light Switch
Item Description
8 Transmission Shift Control
9 Breather
10 Pump Drive Dipstick
11 Transmission
12 Pump Drive Upper Support
13 Disconnect Air Solenoids
14 Disconnect Air Cylinder
