Grove Published 01-29-2015, Control # 512-01 2-35
TMS700E SERVICE MANUAL HYDRAULIC SYSTEM
Telescope Pedal Control Valve Functional
Check (with Auxiliary Hoist Option)
1. Start the engine and run it at normal speed.
2. Telescope the boom the whole way out and then the
whole way back in. Verify proper telescoping.
3. Check valve and lines for leakage. Make repairs as
needed.

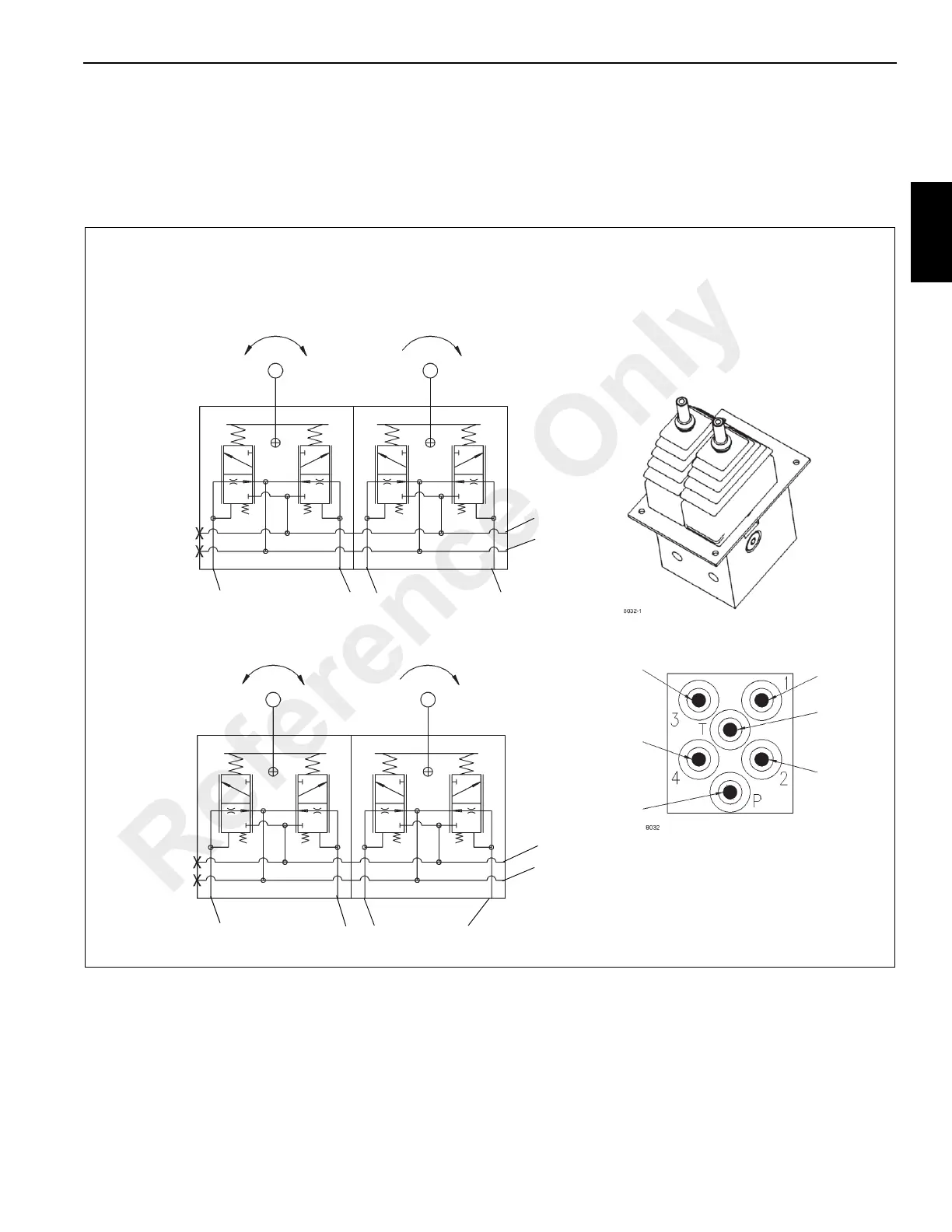

NOTE: R.H. and L.H. controllers oriented from seated operator.
Ports of control lever seen facing aft looking at seat with armrest in up position.
65
4
1
2
3
10
7
8
9
FIGURE 2-23
Swing
Main Hoist
Telescope or
Aux Hoist
Lift
3
4
5, 9
1, 7
4
3
6, 10
2, 8
FWD BACK
BACKFWD
FWD
BACK
BACKFWD
6461-3
Reference Only
