Manitowoc Grove TMS700E User Manual

Grove Published 01-29-2015, Control # 512-01 2-55
TMS700E SERVICE MANUAL HYDRAULIC SYSTEM
2
6146
15
16
1
2
4
16
9
12
18
14
13
17
5
6
10
11
8
20
19
7
3

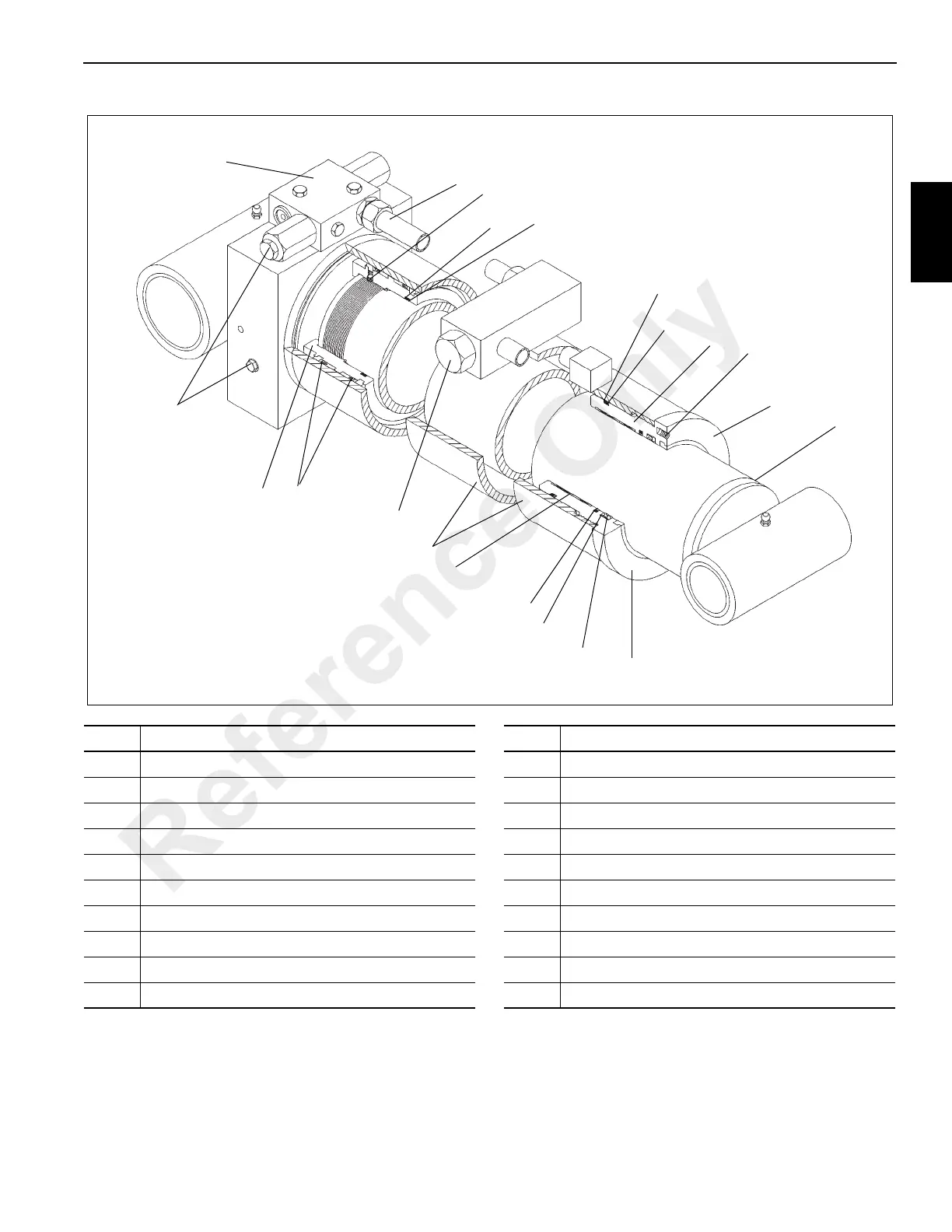

FIGURE 2-39
Item Description
1 Barrel
2Piston
3 Setscrew
4 Hydrolock Seal
5O-ring
6 Backup Rings
7Rod
8 Head
9 Wear Ring
10 O-ring
Item Description
11 Backup Ring
12 Buffer Seal
13 Deep Z Rod Seal
14 Wiper Ring
15 Holding Valve
16 Plugs
17 Tube Assembly
18 Backup Ring
19 Head Retainer Ring
20 Socket Head Capscrew
Reference Only
