HYDRAULIC SYSTEM TMS700E SERVICE MANUAL
2-58 Published 01-29-2015, Control # 512-01
6228

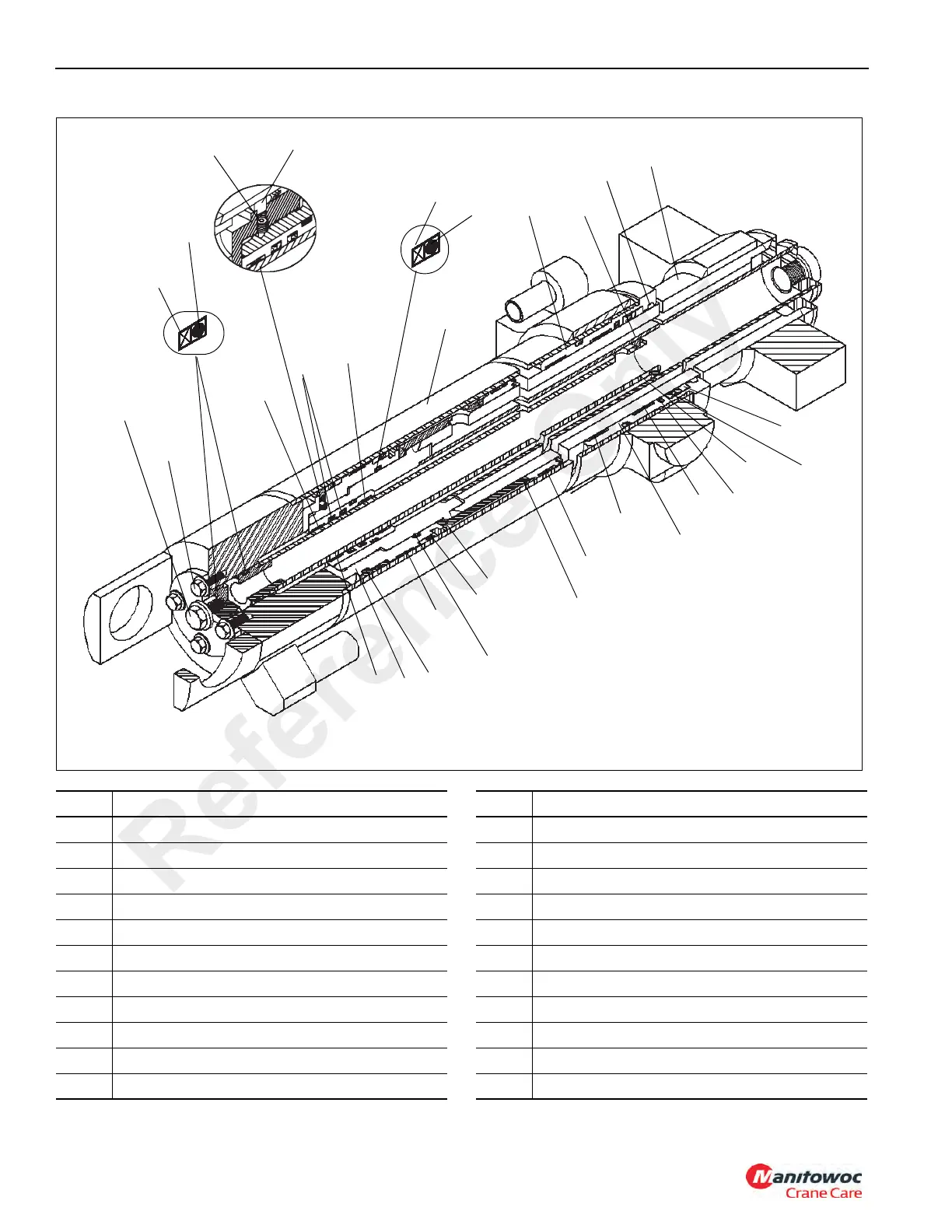

FIGURE 2-42
32
29
6
24
25, 26
23
7
31
22
19
20, 21
17
19 18
15
17
16
1, 33
2, 34
30
7
8
3
5
11
6
9
10
13
12
14
Item Description
1 Rod End Bolt (Inner Rod)
2 Retaining Plate Bolt
2 Backup Ring
4 Low Temperature O-ring
5 Setscrew (Self-Locking)
6 Guide Lock Ring
7 Wear Ring
8 Deep Z Rod Seals
9 Backup Rings
10 Low Temperature O-ring
11 Barrel
Item Description
12 Wiper Ring
13 Guide Lock Ring
14 Outer Rod
15 Inner Rod
16 Backup Ring
17 Deep Z Rod Seal
18 Buffer Seal Assembly
19 Wear Ring
20 Low Temperature O-ring
21 Backup Ring
22 Piston Wear RIng
Reference Only
