Manitowoc MLC165-1 Service Maintenance Manual

Reference Only
POWER TRAIN MLC165-1 SERVICE/MAINTENANCE MANUAL
7-14
Published 05-26-17, Control # 238-02

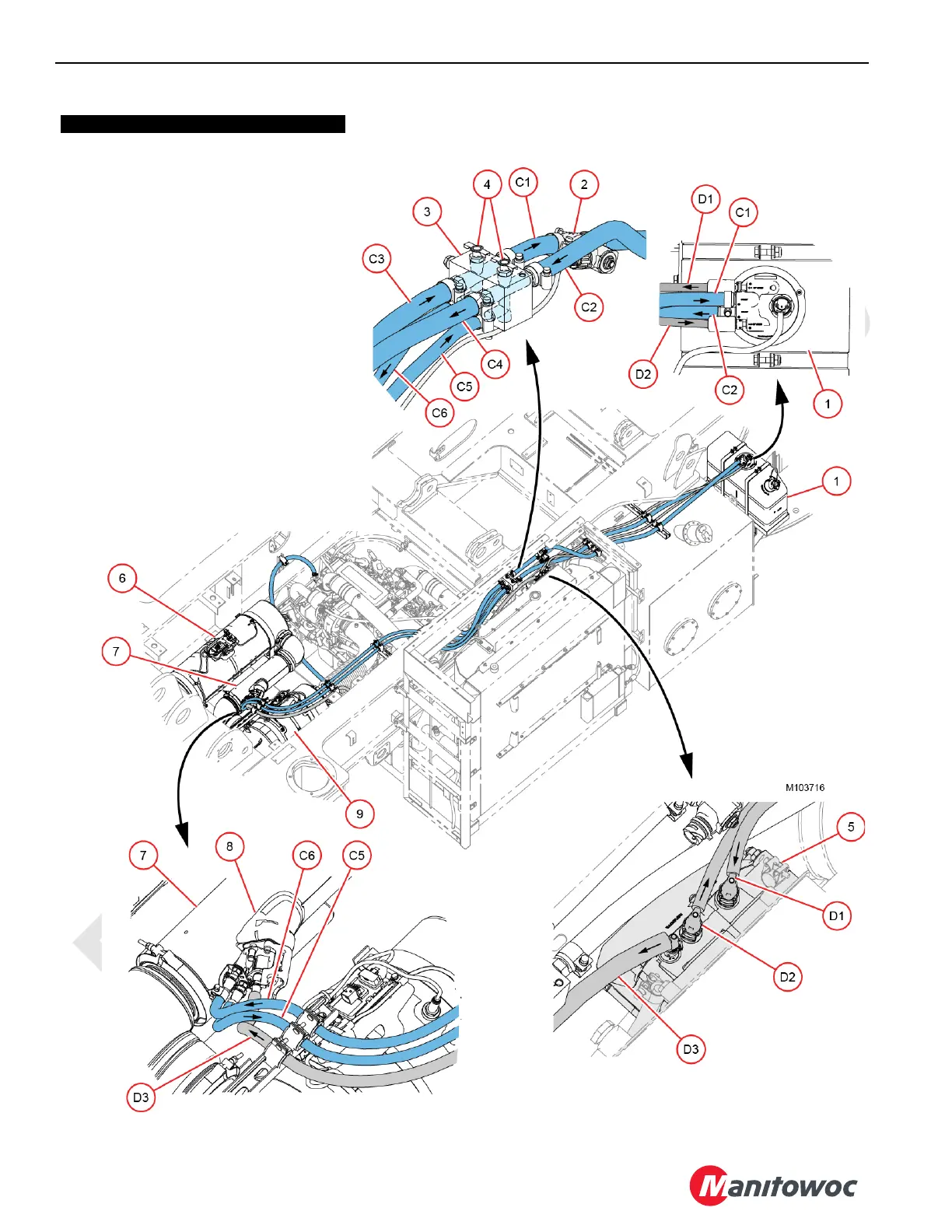

FIGURE 7-11
Item Description
Components
1DEF Tank
2 Coolant Flow Control Solenoid Valve
3 Coolant Manifold
4 Air Bleed Valves
5 DEF Supply Module
6SCR Module
7 DRT Module
8 DEF Dosing Module
9 DOC Module
Coolant Hoses (BLUE)
C1 From Coolant Manifold to DEF Tank
C2 From DEF Tank to Coolant Manifold
C3 From Engine
C4 Return to Engine
C5 From DRT Module to Coolant Manifold
C6 From Coolant Manifold to DRT Module
DEF Hoses (GRAY)
D1 DEF Suction
D2 DEF Return
D3 DEF Pressure
