Mark-10 F Series User Manual

Series F Test Frames + IntelliMESUR
®
Software User’s Guide
65
TOC 
11. Subsequent steps are the same as in compression:
- Exercise the force sensor
- Install necessary fixtures
- Apply the required loads

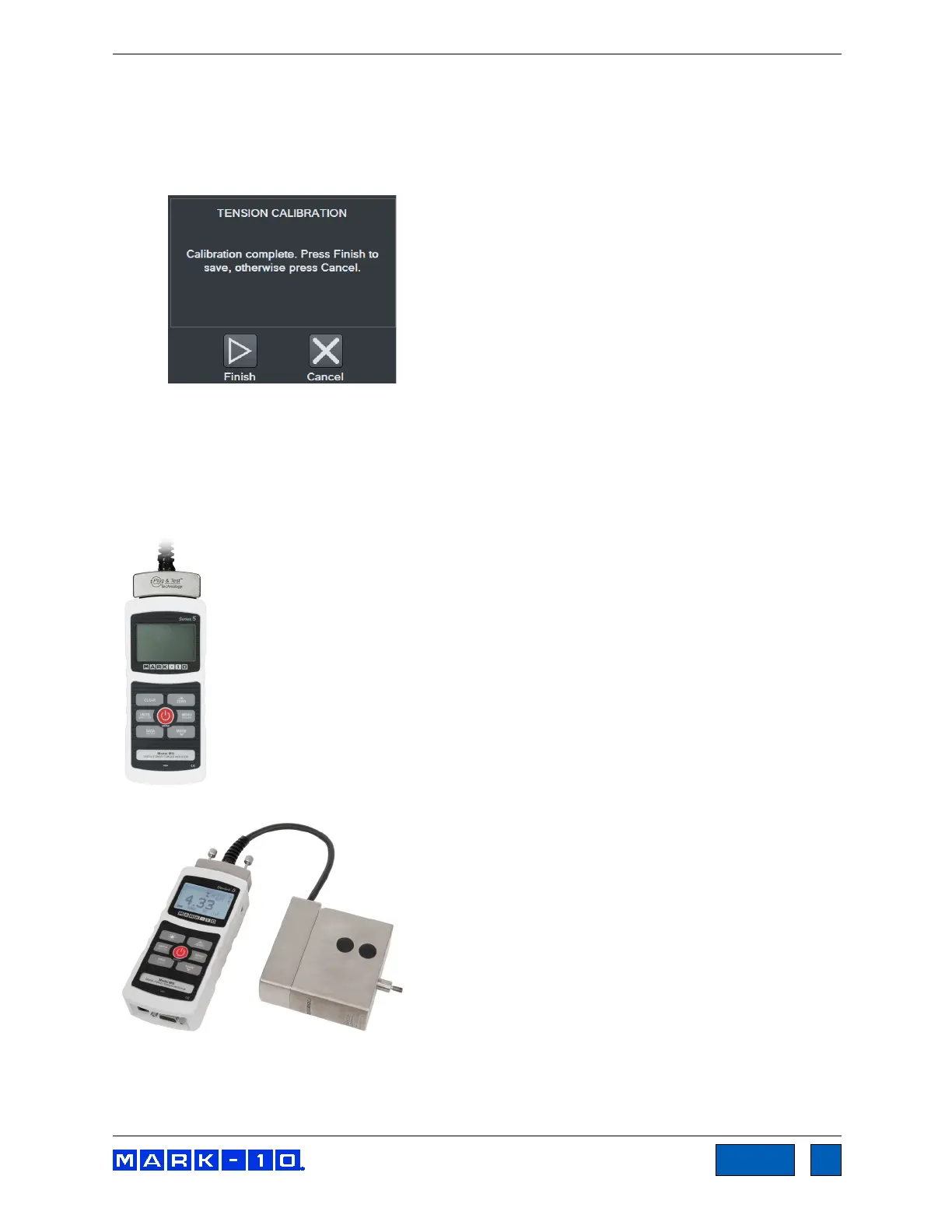

12. When tension calibration is complete, the screen appears as follows:
Select Finish to complete the calibration, or Cancel to exit without saving the calibration.
11.1.2 Calibrating with a Mark-10 Indicator
Series FS05 and R07 force sensors may be removed and calibrated in a different location with a Mark-10
model M5I or M7I indicator with minimum firmware version of 2.2.8.
Series R07 force sensors plug directly into an indicator via its Plug & Test
®
connector, as shown below:
Series FS05 force sensors require an adapter part no. AC1083 to plug into an indicator, as shown below:
The optional extension cable part no. AC1084 can be useful in addition to AC1083 where the indicator
cannot be positioned close to the force sensor.
For calibration instructions, refer to the indicator’s user’s guide.
