2. Lay the test frame on its side and remove the six screws from the underside of the base.

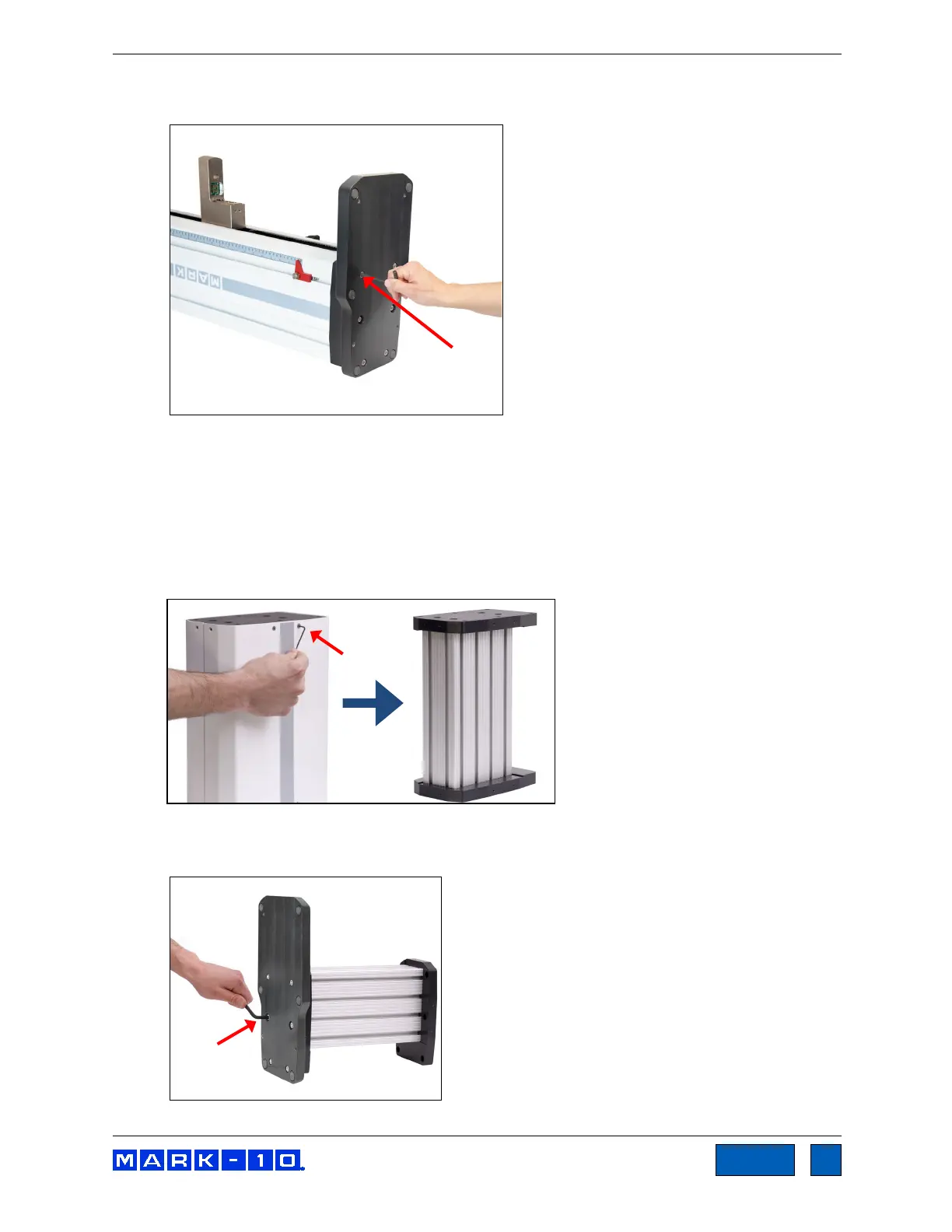

Carefully remove the base from the frame. Refer to the image below:
14.2.2 Retrofitting a Mark-10 AC1094-1 / -2 / -3 single column extension (optional)
If a single column extension is ordered upfront, it is pre-installed at the factory and shipped assembled.
To retrofit in the field, follow these instructions:
1. Remove the two sheet metal covers from the column extensions by loosening the 16 screws, as
identified in the images below:
2. Using the 6 screws removed from the test frame base, reinstall the base onto the lower flange of
the column extension, as shown in the image below:
