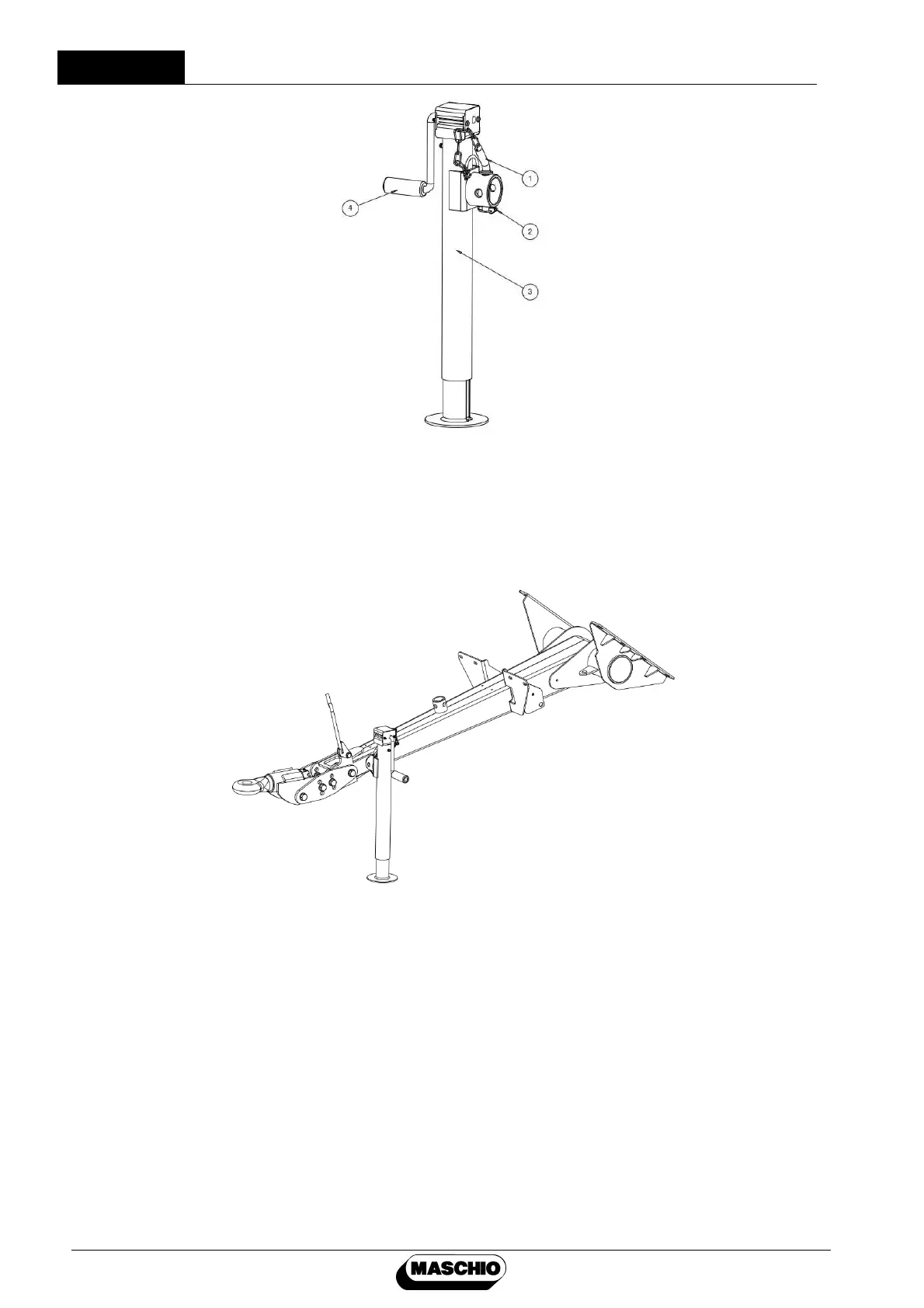

Figure 1. Jack
The jack can be turned to horizontal position by removing safety pin (2) and jack pin
no. (1). (Figure 2).
Figure 2. Horizontal jack positioning.
After connecting to the tractor, safety pin (2) and jack pin (1) can be removed for
horizontal positioning to switch to drive and work state. (Figure 3).
