Maschio PITAGORA INLINE - Switching the Machine from Drive Position to Work Position

OPERATOR'S MANUAL
ENGLISH
Cod. EKE0002OM
31

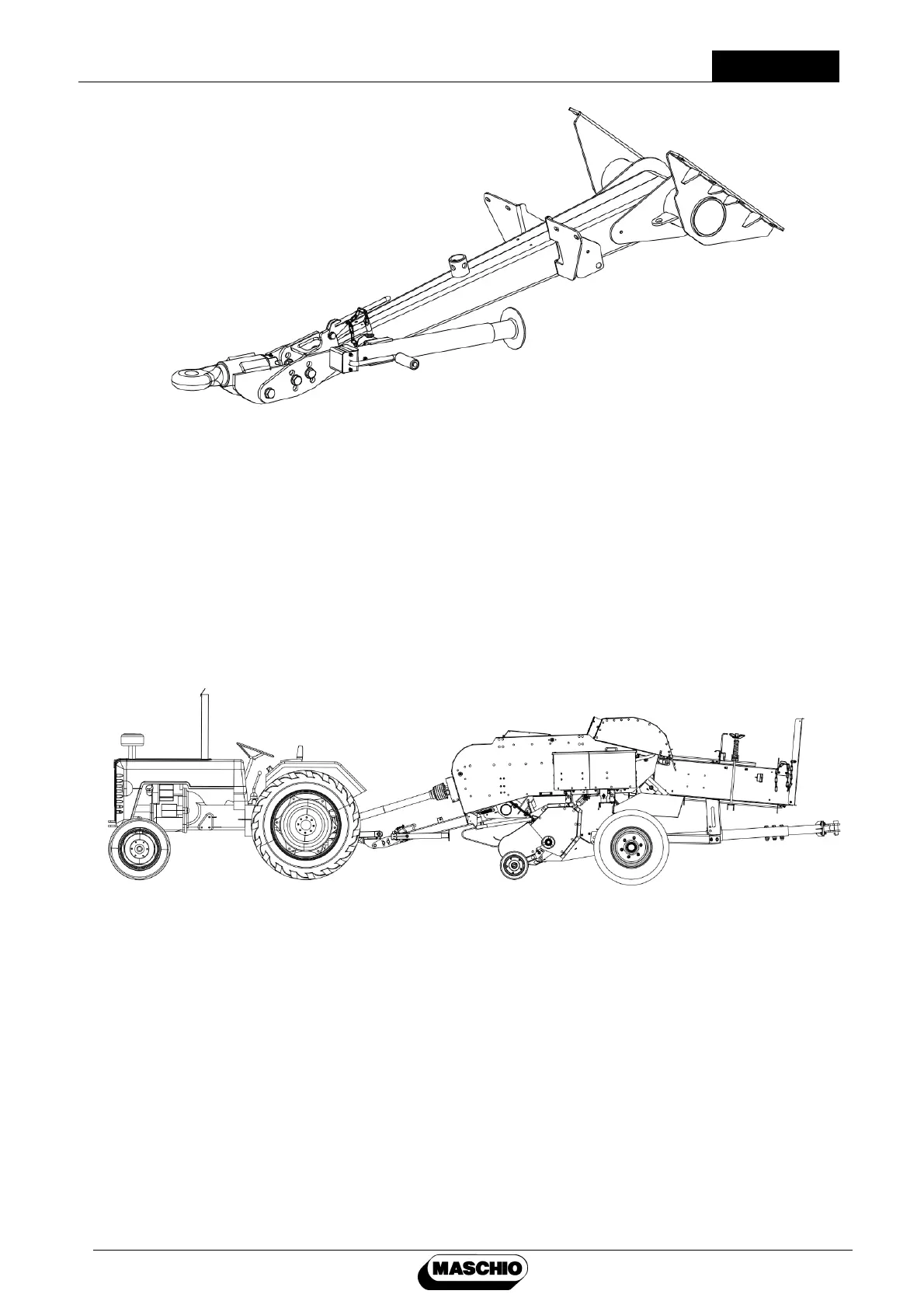

Figure 3. Vertical Jack Positioning
4.4. Switching the Machine from Drive Position to Work Position;
The machine looks as in Figure 1 when in road/drive position. The jack must be
brought to vertical position and locked with jack pin and safety pin.
Road/Drive Position
Figure 1
Tail bale drop plate must be closed as in Figure 2, and secured with the chain.
