5.6. Adjustments Following Transmission Chain Breaks (Filler Timing Setting)
Procedures to follow when any of the following occurs; new transmission chain is to
be installed, or transmission chain breaks or the 3 share bolts holding the flange on
transmission chain gear breaks;

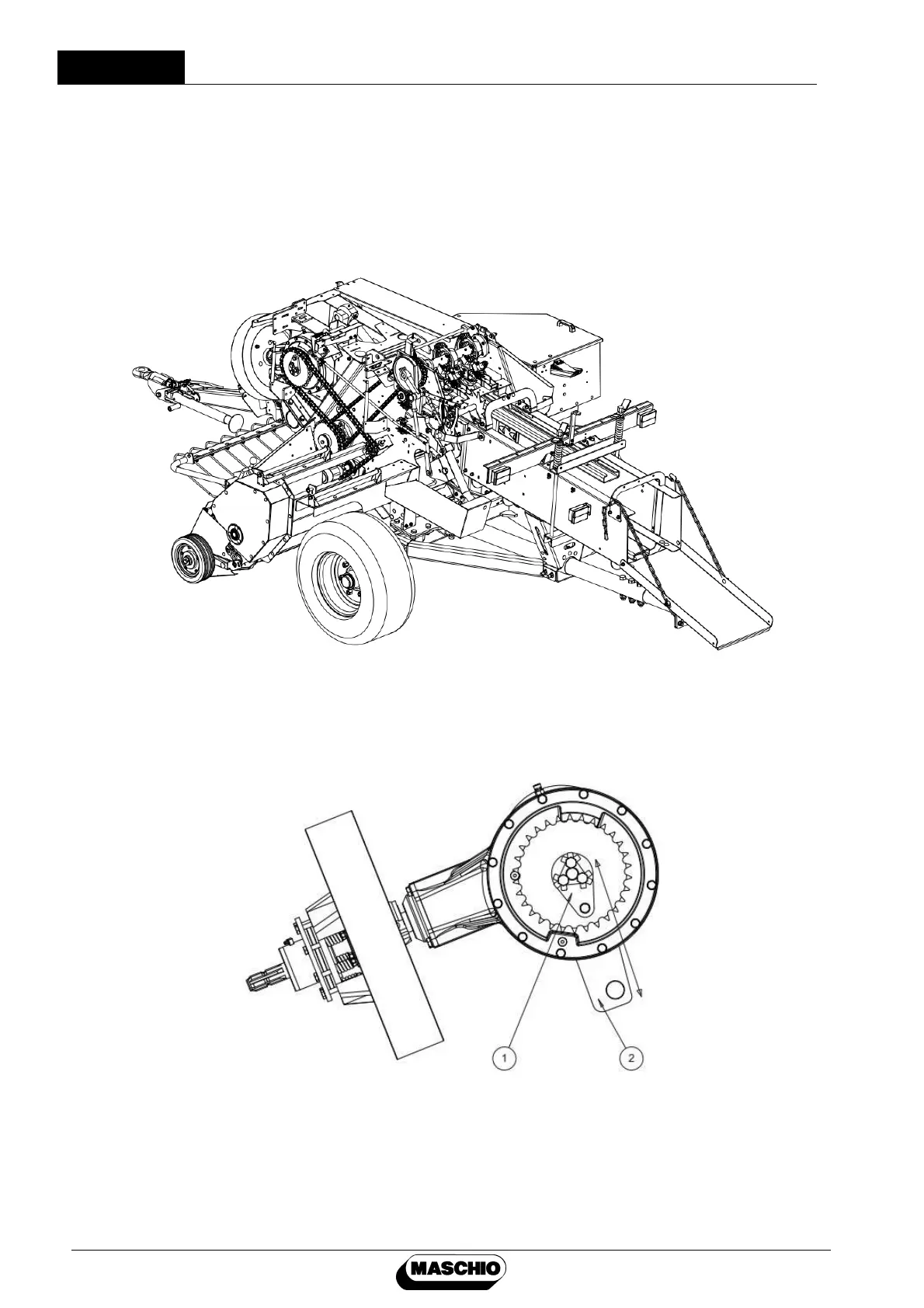

• Facing the rear of the machine, turn the flywheel clockwise. (Figure 1) Flywheel is the
unit storing motion energy required to move the piston located in baling chamber.
Figure 1
• Transmission shear bolt flange (1) and transmission rod (2) are always in alignment
(Figure 2)
Figure 2
