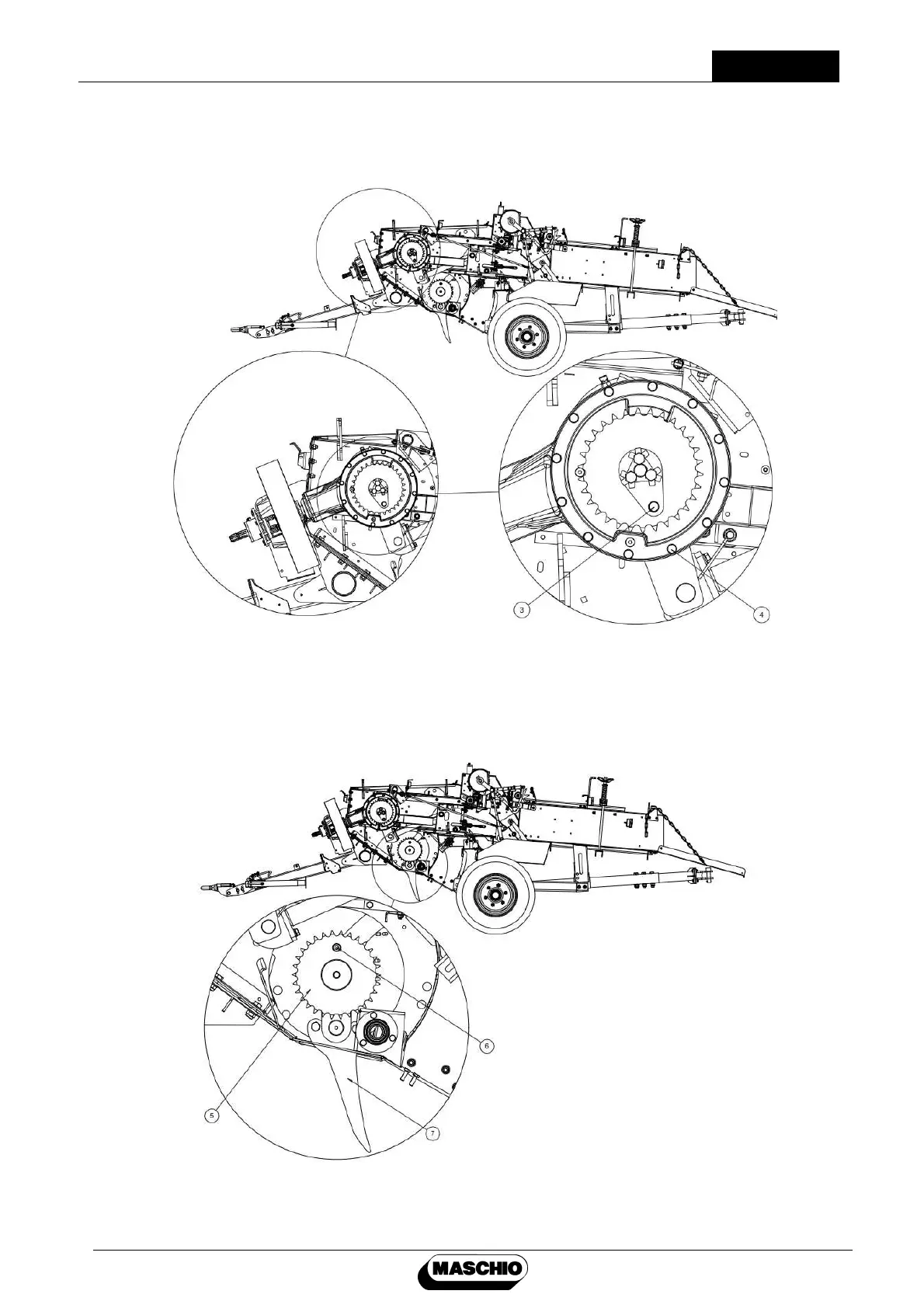

• Turn the flywheel and align M12X45 hayfork shear bolt (3) on transmission chain with
the bolt on transmission cover (4) (Figure 3).
Figure 3
• Align M6X35 knotter set shear bolt (6) located on hayfork group drive chain gear (5)
with straight angle to the ground as shown in Figure 4. Thus, position of hayfork plates
(7) in relation to the ground will be as illustrated in Figure 4.
Figure 4
