Maschio PITAGORA INLINE - Adjustments Following Knotter Set Drive Chain Breakage (Center Adjustment)

ENGLISH
OPERATOR'S MANUAL
56
Cod. EKE0002OM

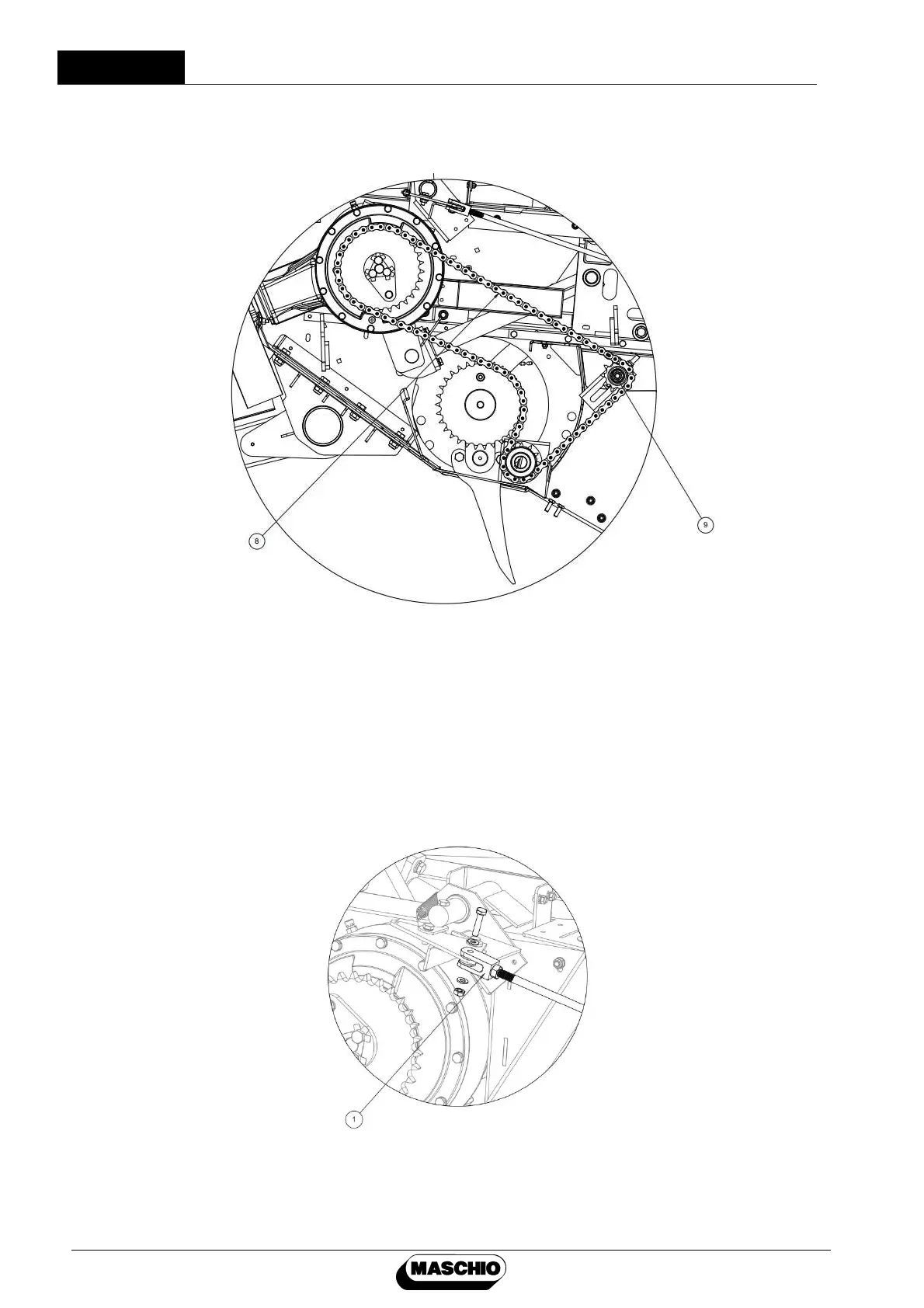

• Install transmission chain as illustrated in the figure and tension the chain from
tensioning section (9). Install chain seam point from section no (8) for ease of
assembly. (Figure 5)
Figure 5
5.7. Adjustments Following Knotter Set Drive Chain Breakage (Center
Adjustment)
Procedures to follow when any of the following occurs; when a knotter set chain is
to be installed on the machine or knotter set chain breaks;
* Remove the fork (1) that conveys the motion to piston braking pivot (Figure 1)
Figure 1
