Knotter Set Drive Chain

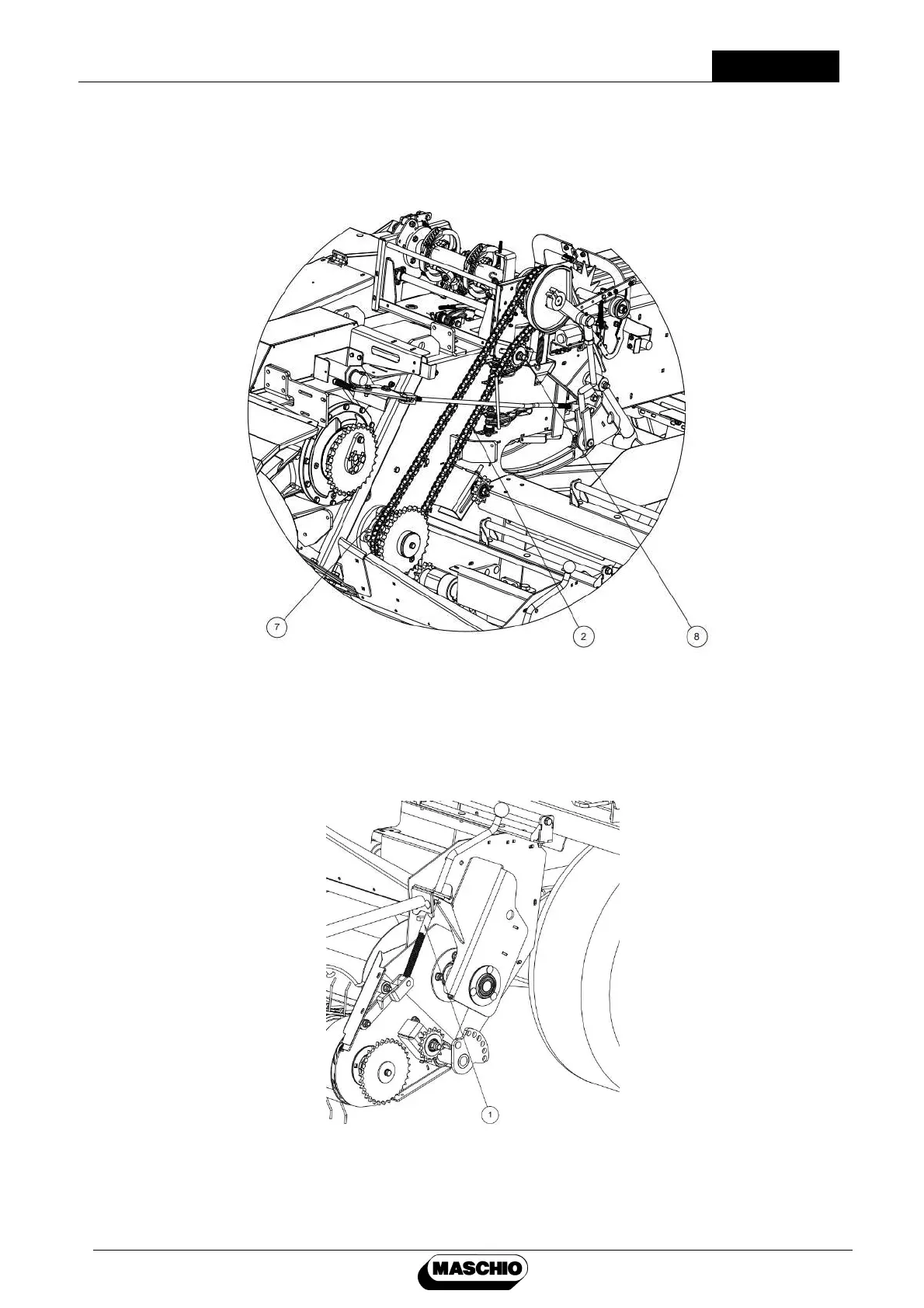

Install ASA60-H type knotter set drive chain (7) as illustrated in Figure 5. Tension the
chain using chain tensioning gear (8) and check deviation from location no (2).
Figure 5
5.4. Pick-Up Unit Settings
Height of collection harrows is adjusted using collection height adjustment screw (1).
(Figure 1) Turning the adjustment screw clockwise will lower down the collection group.
Figure 1
