Maschio PITAGORA INLINE - Needle Saddle Lining

OPERATOR'S MANUAL
ENGLISH
Cod. EKE0002OM
71
5.12. Needle Saddle Lining

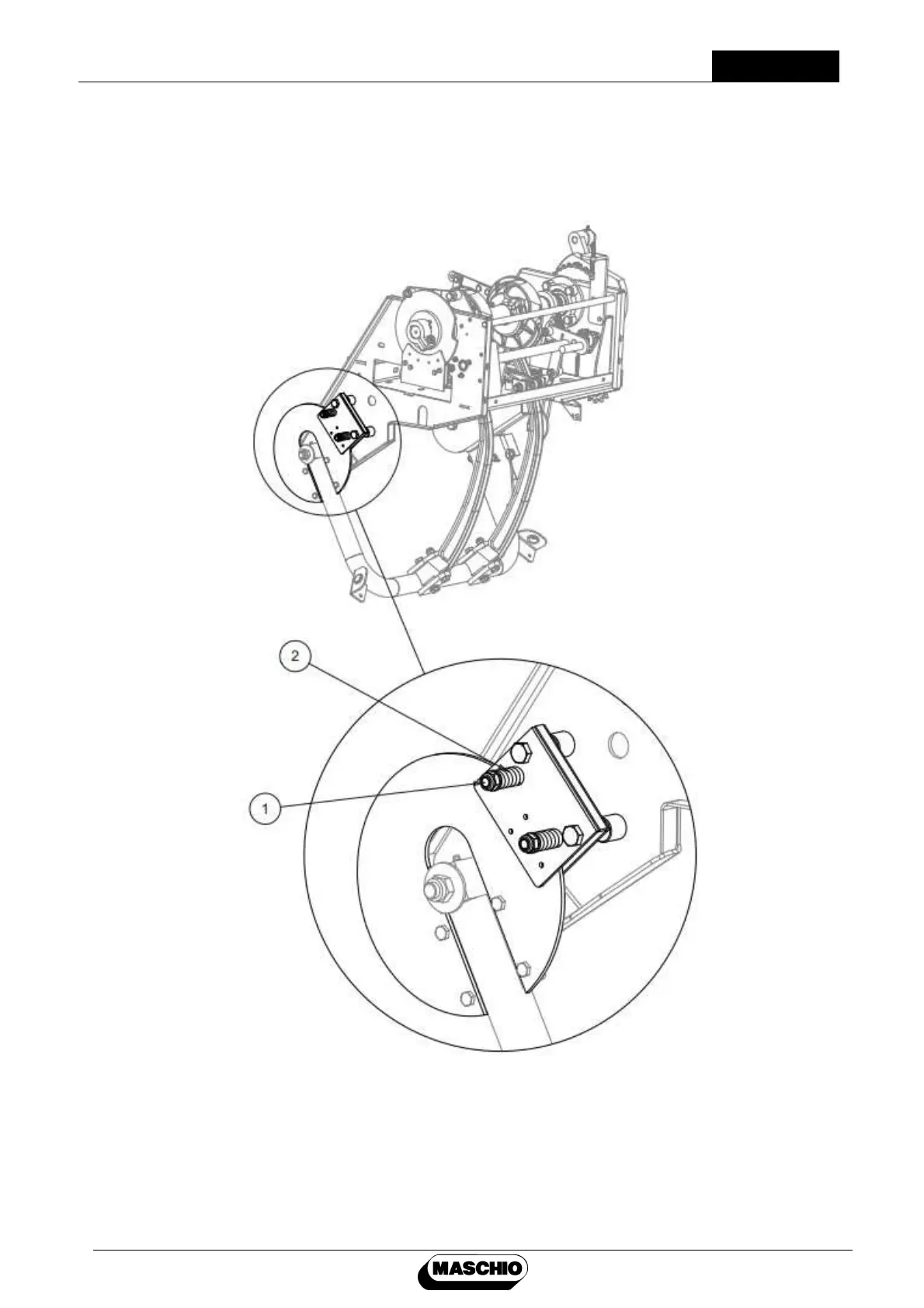

Compression springs (1) inserting into M10X70 adjustment bolts that are used to
adjust needle saddle lining must be tightened between 29-31 mm measured from the washer.
(Figure 1,2)
Figure 1
