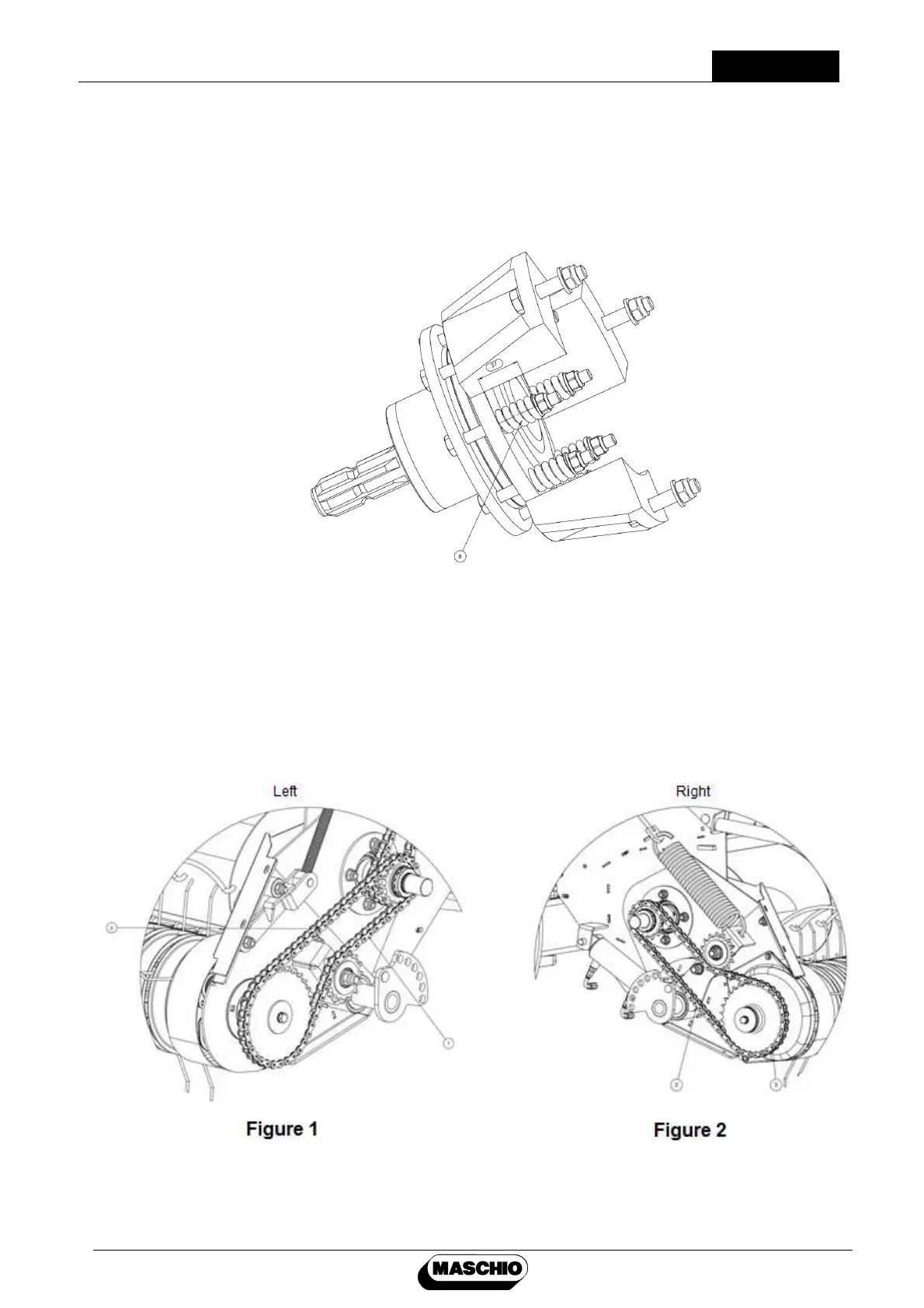

Adjustment is required for clutch lining depending on condition of the springs
(tensioning springs) after making 10.000 bales on the machine. After new lining replacement,
compression spring adjustment should be made as illustrated in Figure 2, at a height of 37
mm (3,7 cm) together with the washer. Do not adjust groove drive pivot skid-belt cutch more
than the maximum specified torque. Tightening to a value more than maximum specified
torque may result in breaking of other components.
Figure 2
5.3. Chain and Tension Setting
Collection Unit
12b-1 type collection chains shall be installed as in Figure 1 and Figure 2 on left (1)
and right (3) sides, and once chain tensioning is completed as illustrated in the figure, chain
deviation shall be adjusted as 10-6.35mm.
