ENGLISH
OPERATOR'S MANUAL
50
Cod. EKE0002OM
Helical Unit

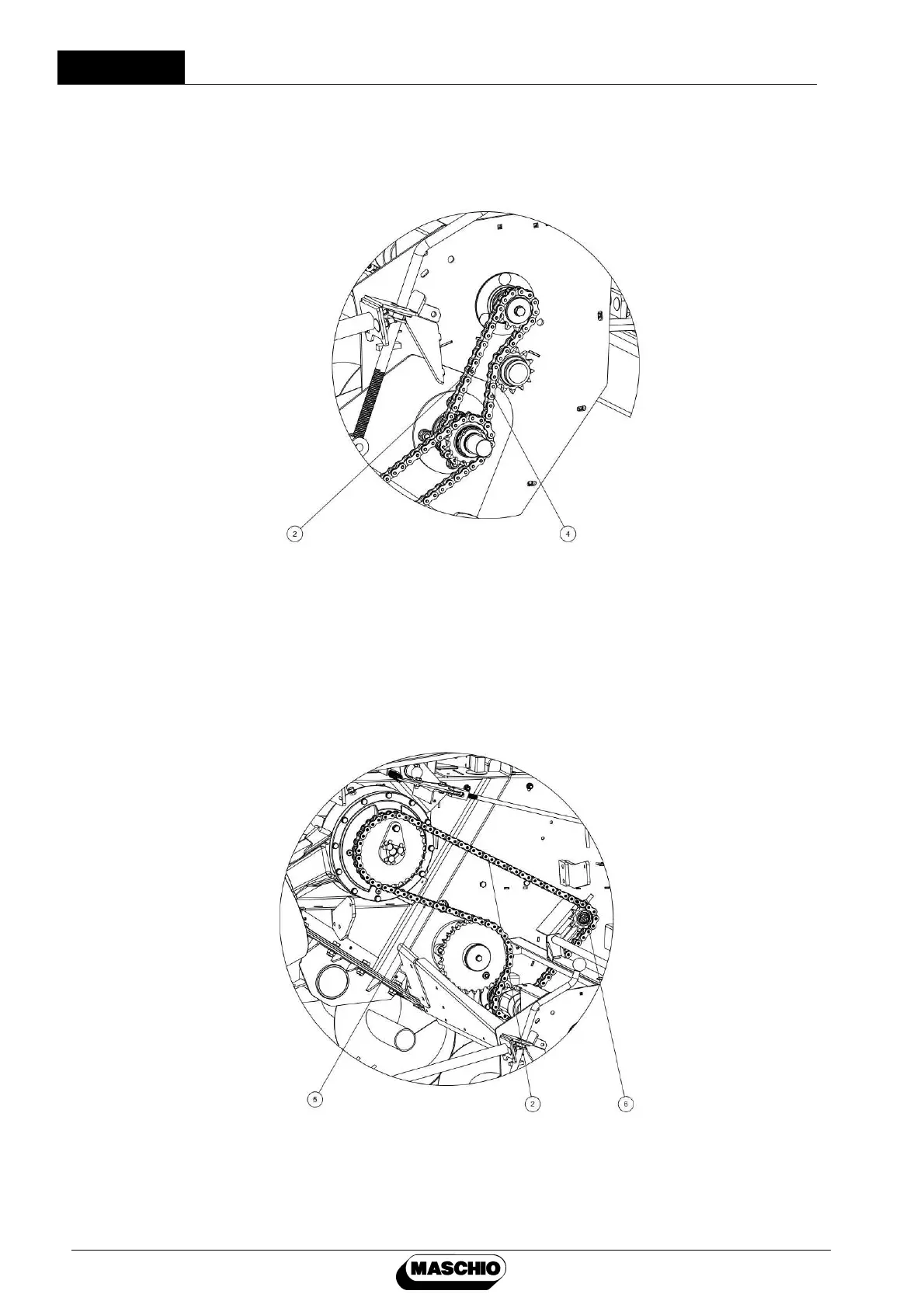

Install 12B-1 type helical unit chain (4) as in Figure 3, and check deviation from
location no (2).
Figure 3
Transmission Unit Main Drive Chain
Install 16B-1 type transmission unit main drive chain (5) as illustrated in Figure 4.
Tension the chain using chain tension gear (6) and check deviation from location no (2).
Adjust deviation value as 15-9.5mm.
Figure 4
