ENGLISH
OPERATOR'S MANUAL
40
Cod. EKE0002OM

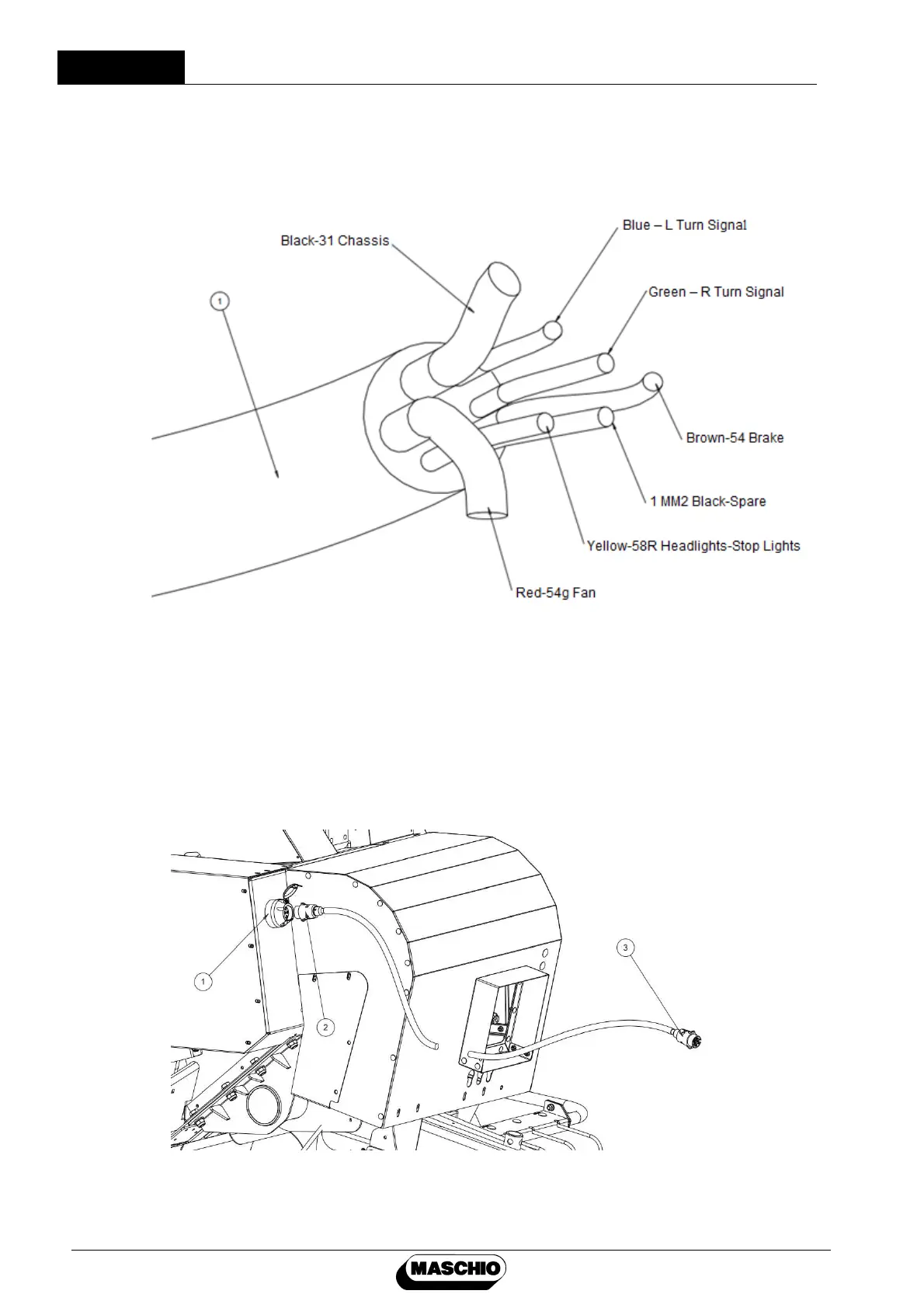

4.7. Connecting Electrical System
PITAGORA INLINE Baler power cable (1) is 2x6+5x1 mm
2
TTR NYM cable. Cable
color coding and associated units are indicated in Figure 1.
Figure 1
Female electric socket (1), Baler side electric socket (2) and Tractor side electric
socket (3) of the machine are illustrated in Figure 2. The plug on the electric power cable
supplied as spare part is connected to the machine side. Other end of the cable is connected
according to Connection Diagram to the tractor by authorized dealer. Ends of power cable
are marked as “Baler” and “Tractor”.
Figure 2
