OPERATOR'S MANUAL
ENGLISH
Cod. EKE0002OM
39

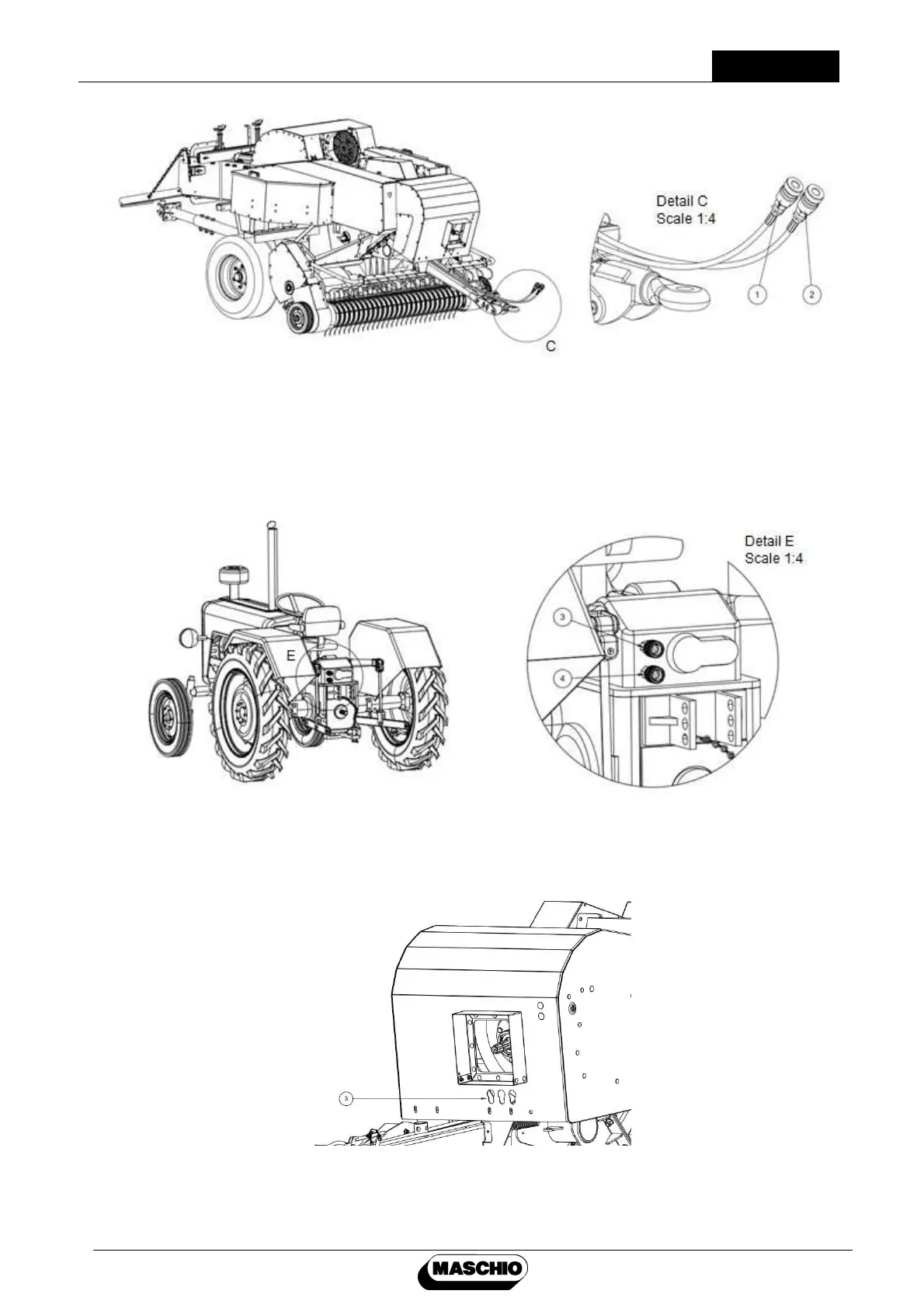

Figure 2
Female couplings on tractor side are illustrated in Figure 3. Male couplings on the
collection piston hoses are connected to female couplings (3) and (4) on tractor side. Push
the ring on female coupling forward for removal. It should be pushed forward to seat it in the
housing for installation.
Figure 3
The eyelets (3) on front hood are illustrated in Figure 4. You can install hydraulic
couplings on those eyelets when machine is not operated.
Figure 4
