5.14. Needle Adjustment
Performing needle adjustments;
For Deering Knotter Set;
• Loosen needle locking bolts (1) and bring the needle saddle drive rod (2) to upper
dead point. (Figure 1)

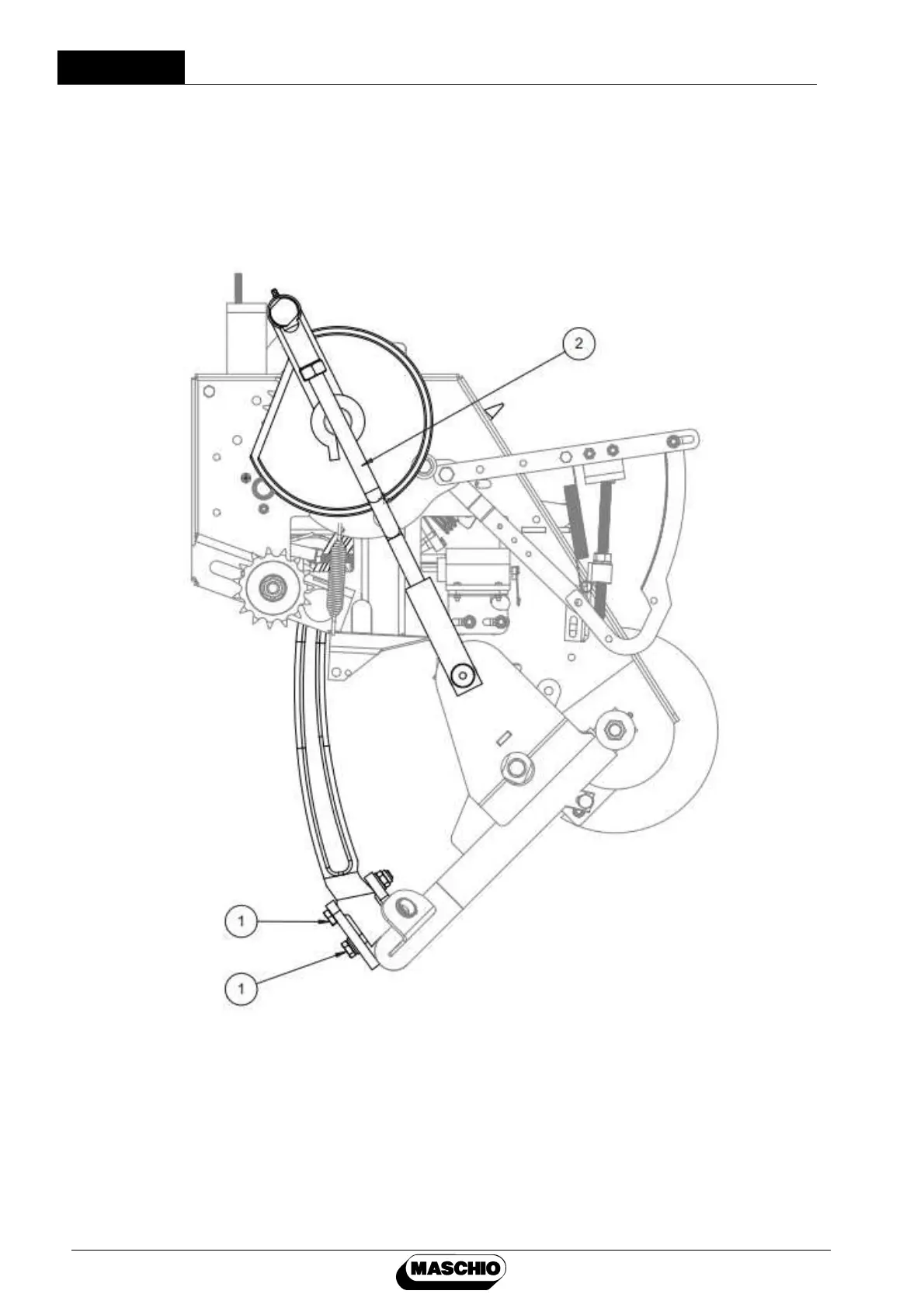

Figure 1
• When the needle saddle drive rod is in this position, distance between needle tip (3)
and pinion gear (4) center should be in the range of 100-110 mm. Tighten needles
from needle adjustment bolts according to given measures. (Figure 2)
