OPERATOR'S MANUAL
ENGLISH
Cod. EKE0002OM
53

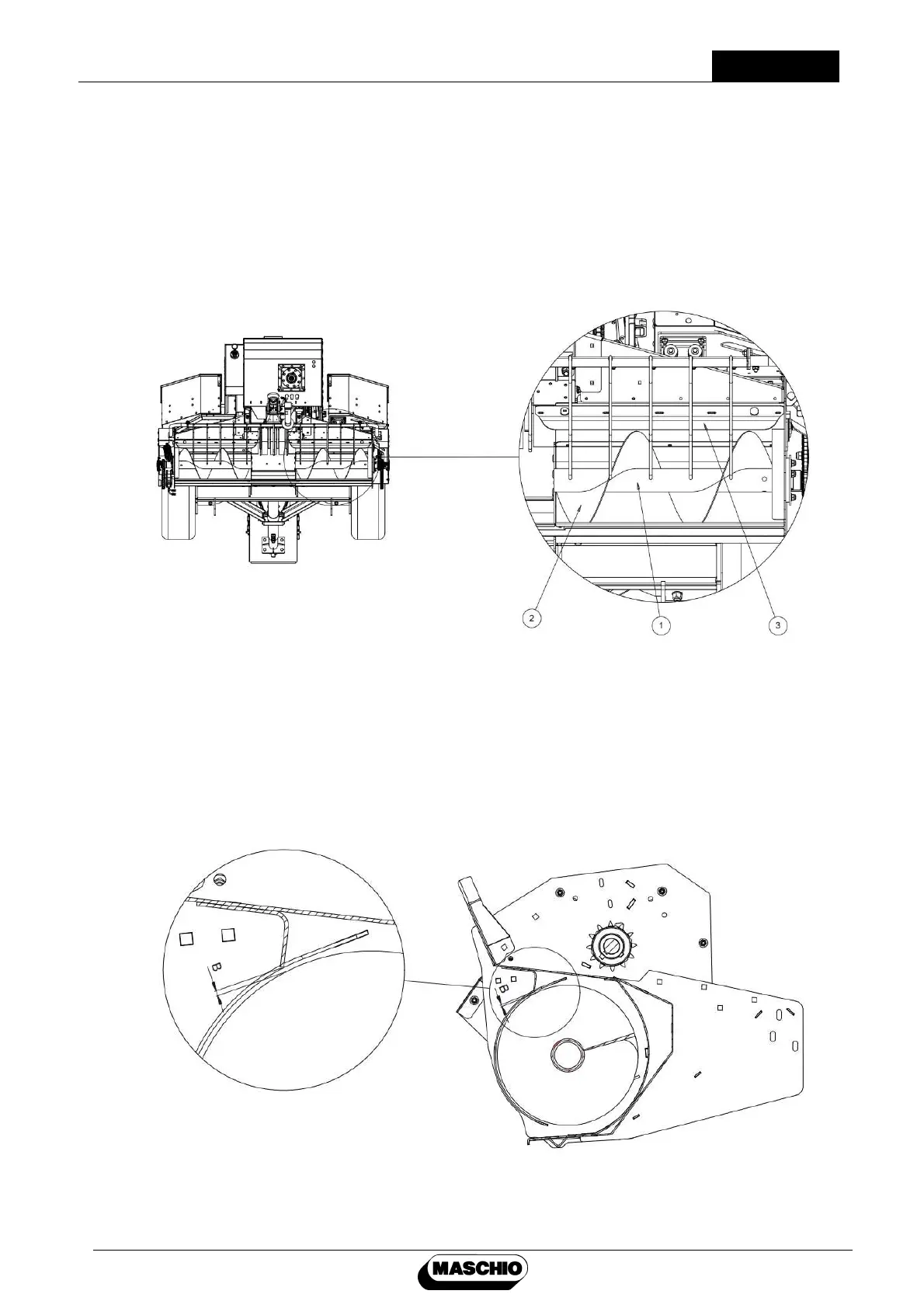

5.5. Auger Settings
PITAGORA INLINE bale machine is equipped with scrapers (3) to prevent crops
jamming in helices (1) on upper part of helical chassis and rolling of crops together with
helical blades (2). Proper distancing should be ensured between helical scrapers and helical
blades. This appropriate gap allows continuous flow of crops throughout helical chassis
compartment and prevents further crop load to ensure longer service life for shear bolts.
Figure 1
Rotation of crop around helical blades result in flywheel tripod clutch lining to slip and
clogging of collection unit. Appropriate B spacing between helical scraper and helical blade is
shown in Figure 2. Adjust an appropriate spacing of 6,5-9,5 mm between edge of scraper
and edge of helical blade.
Figure 2
