ENGLISH
OPERATOR'S MANUAL
68
Cod. EKE0002OM

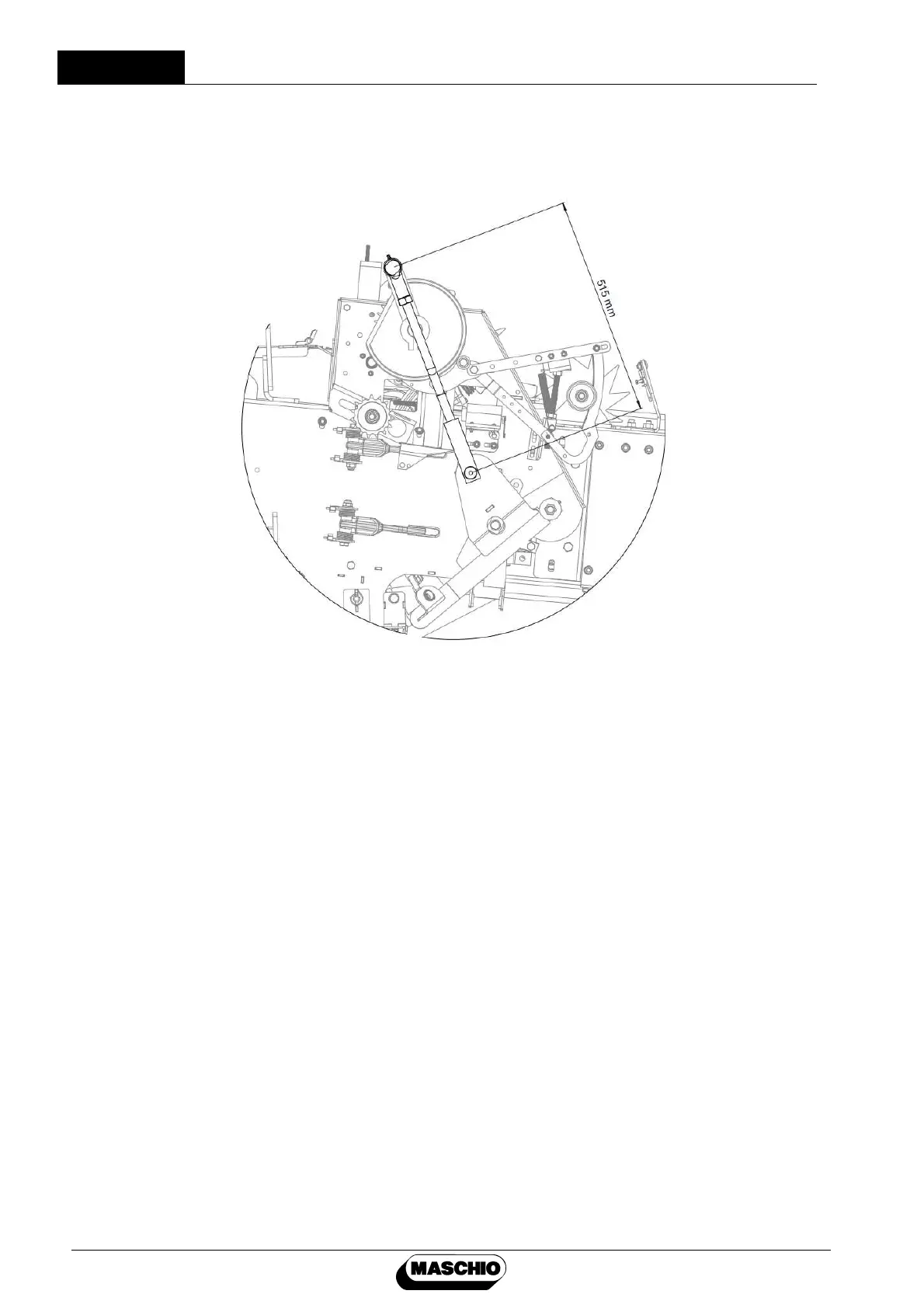

5.10. Needle Saddle Lever Adjustment
Needle saddle lever length should be adjusted as 515 mm (51,5 cm).
Figure 1
5.11. Safety Latch Adjustment and Maintenance
Remove safe stop spring (2) from safety latch connection plate. Remove the fork (3)
from the connection plate. Loosen tightening nut (4) and adjust the fork inwards-outwards to
achieve correct spacing on the connection plate. Once you get the correct spacing, tighten
the nut back and connect the plate. Install safe stop spring (2). Always check functioning of
safety latch system during daily maintenance. (Figure 1).
