OPERATOR'S MANUAL
ENGLISH
Cod. EKE0002OM
67

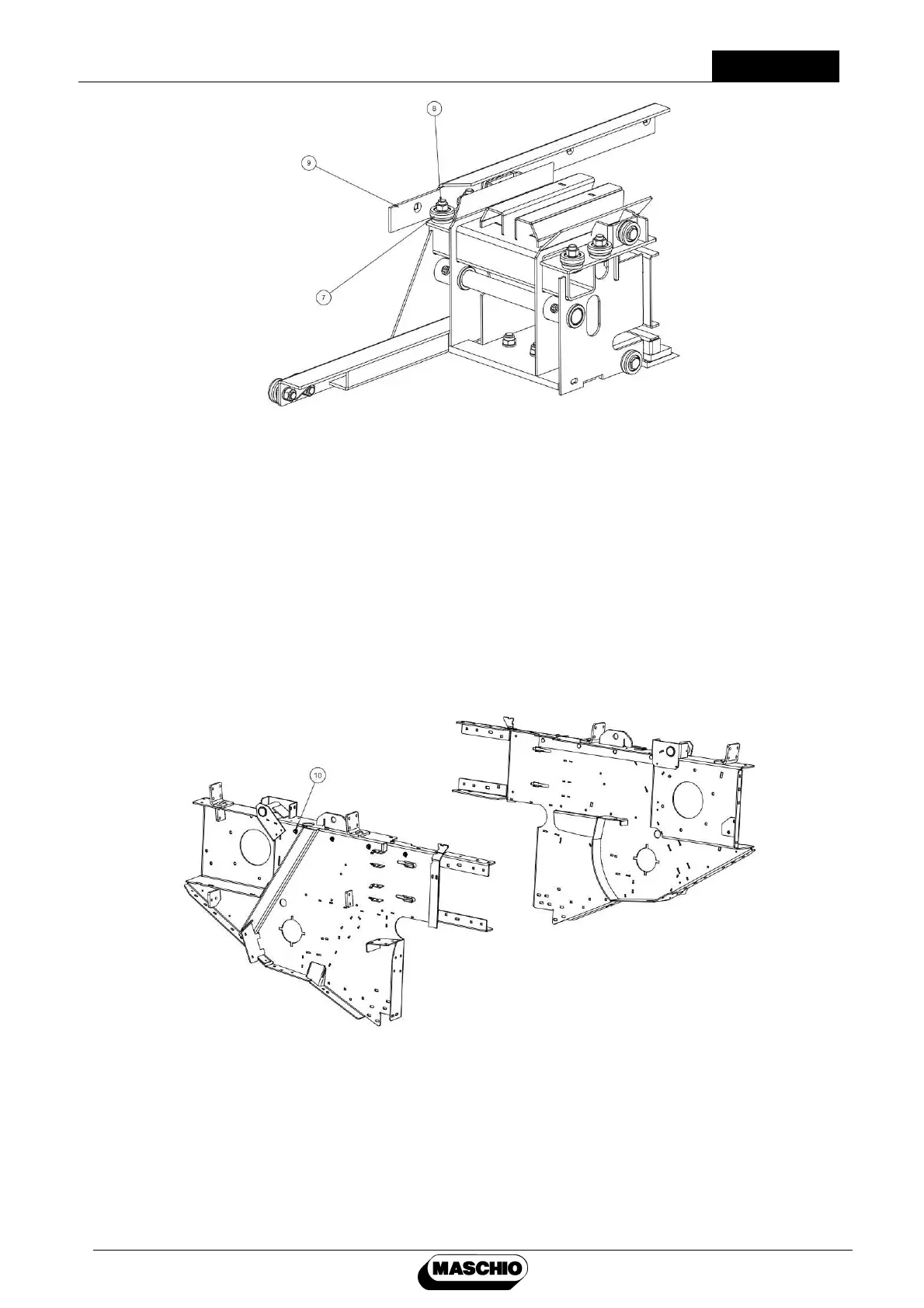

Figure 8
Before centering pistons vertically, rotate the flywheel 1 cycle to check its horizontal
centering. There are two fixed rails at the bottom of bale machine. The top two L twist rail can
be adjusted up and down. Move the piston all the way back and start vertical centering of the
piston. Loosen 4 each bolts (10) that secure the two L twist upper rail plates on the baling
room and move the rails vertically. Rotate the flywheel again to move the piston all the way
forward. Adjust the rails vertically and tighten. Ensure that the distance between top twist rails
and vertical wheel bearing is 0,38-0,76 mm. (Figure 9)
Figure 9
