Maschio PITAGORA INLINE - Page 57

OPERATOR'S MANUAL
ENGLISH
Cod. EKE0002OM
57

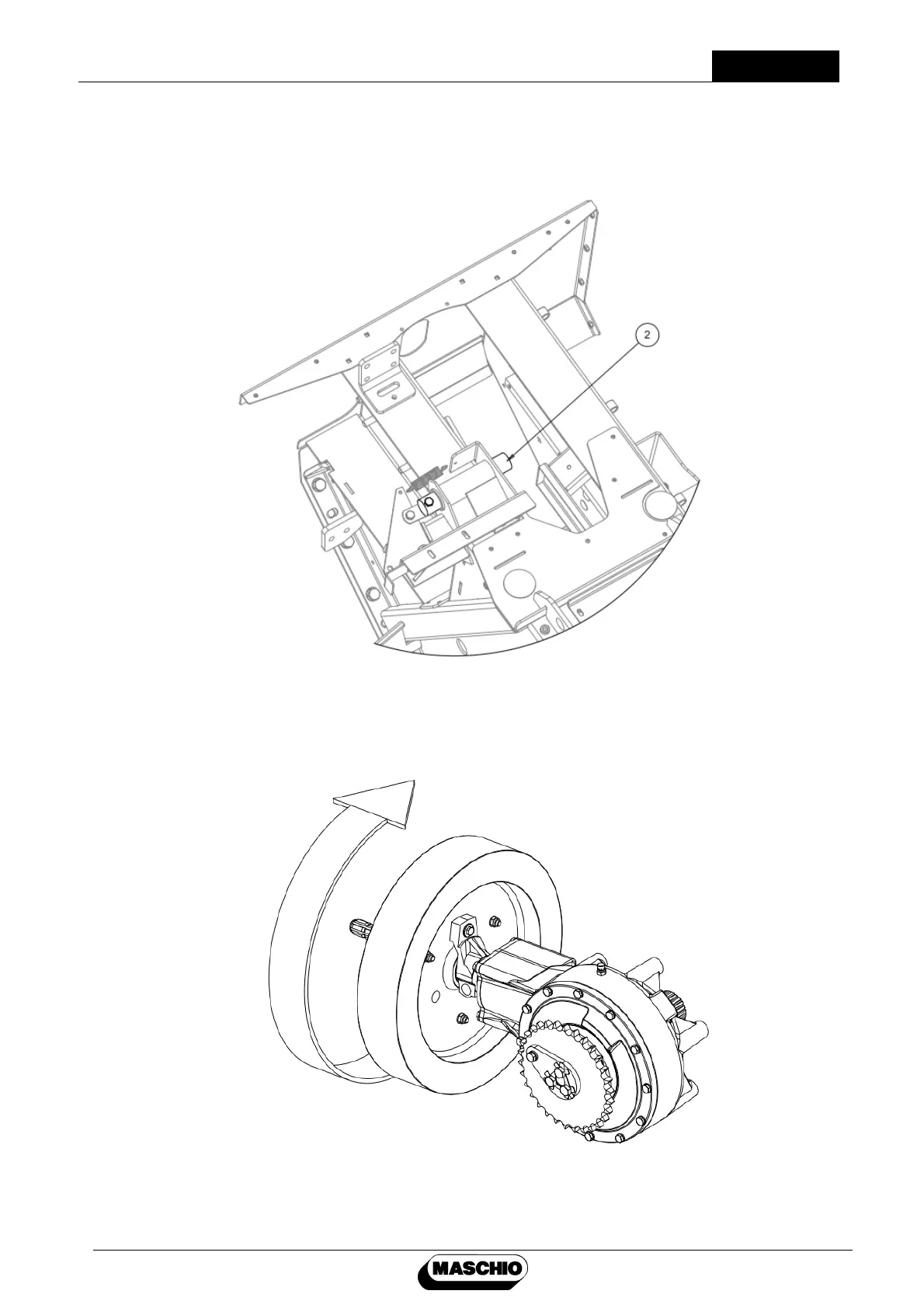

• Move piston braking pivot (2) to forward position. When the fork is removed, piston
braking pivot spring pull will come to desired position.
Figure 2
• Facing rear of the machine, turn flywheel clockwise. (Figure 3)
Figure 3
