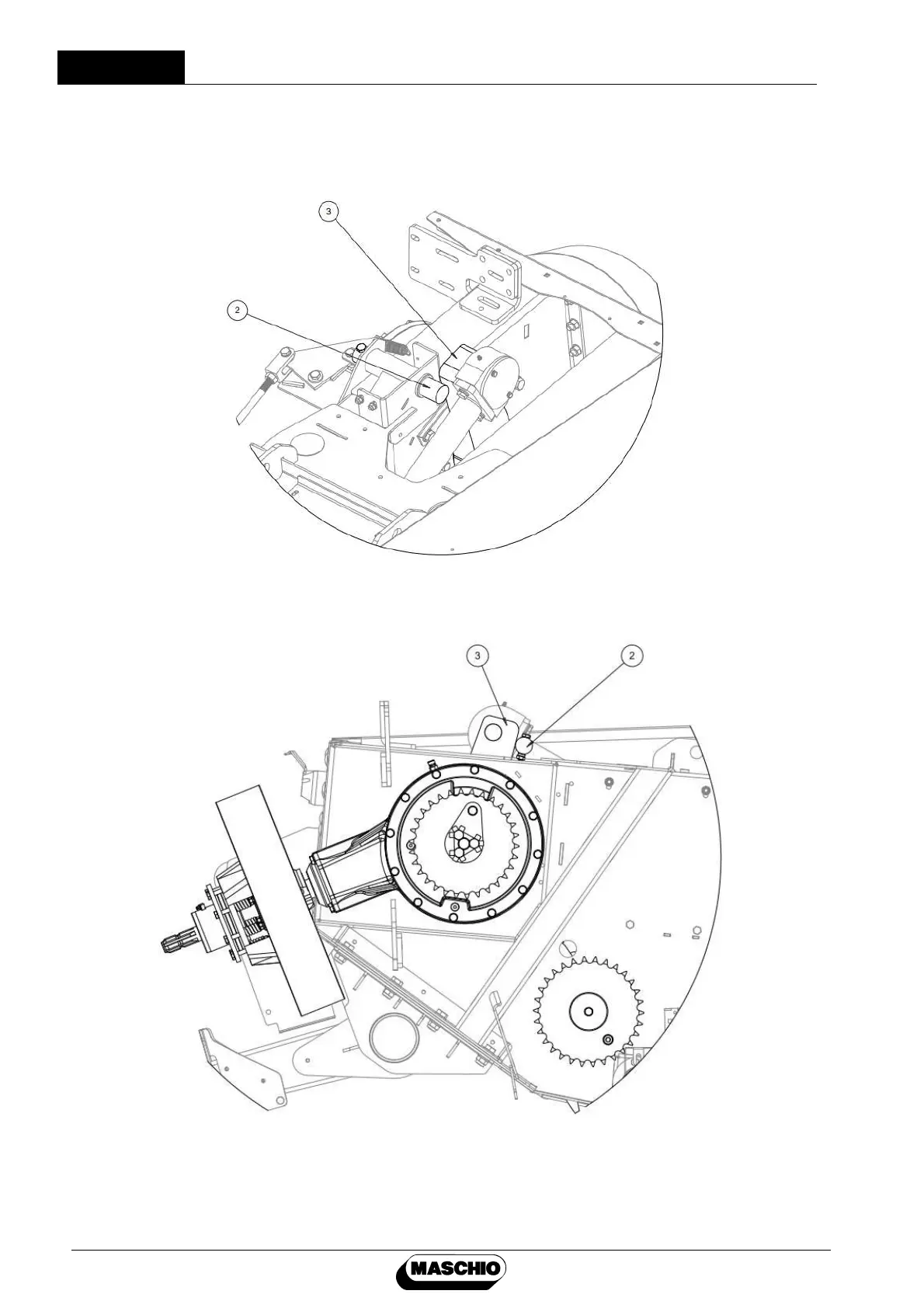

• Press the transmission lever (3) to piston brake pivot (2) as shown in Figure 4.
Transmission chain gear shearbolt flange and hayfork drive chain shearbolt flange will
appear as illustrated in Figure 5.
Figure 4
Figure 5
