• Release bale size adjustment mechanism (4) and bale size adjustment seat (5) as
illustrated in Figure 6.

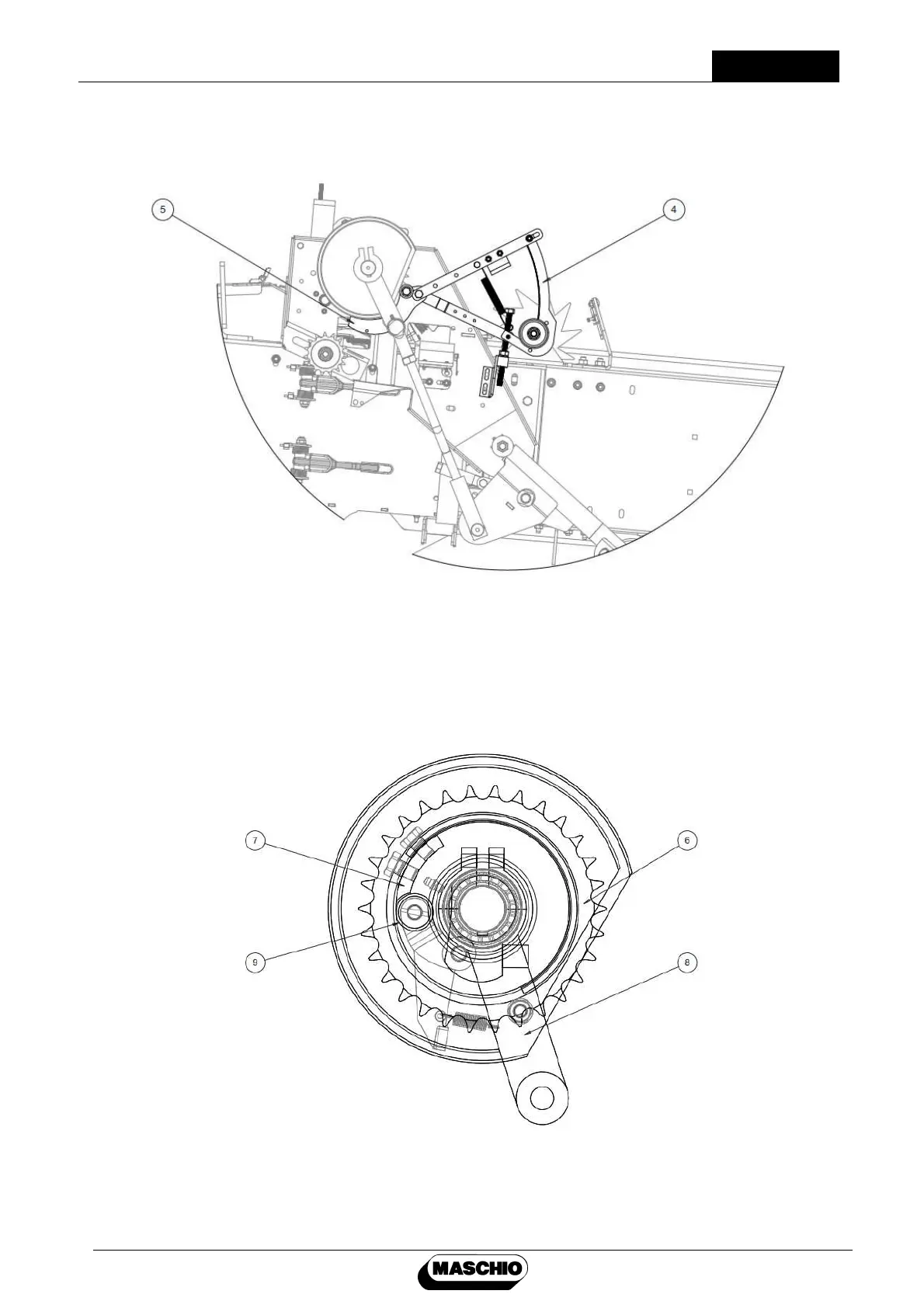

Figure 6
• (Figure 7) Turn the knotter set drive gear (6) counter-clockwise and press the interior
safety latch seat (7), cast drive rod (8) against automatic latch reel (9) which is also
located inside. (Figure 8)
Figure 7
