ENGLISH
OPERATOR'S MANUAL
60
Cod. EKE0002OM

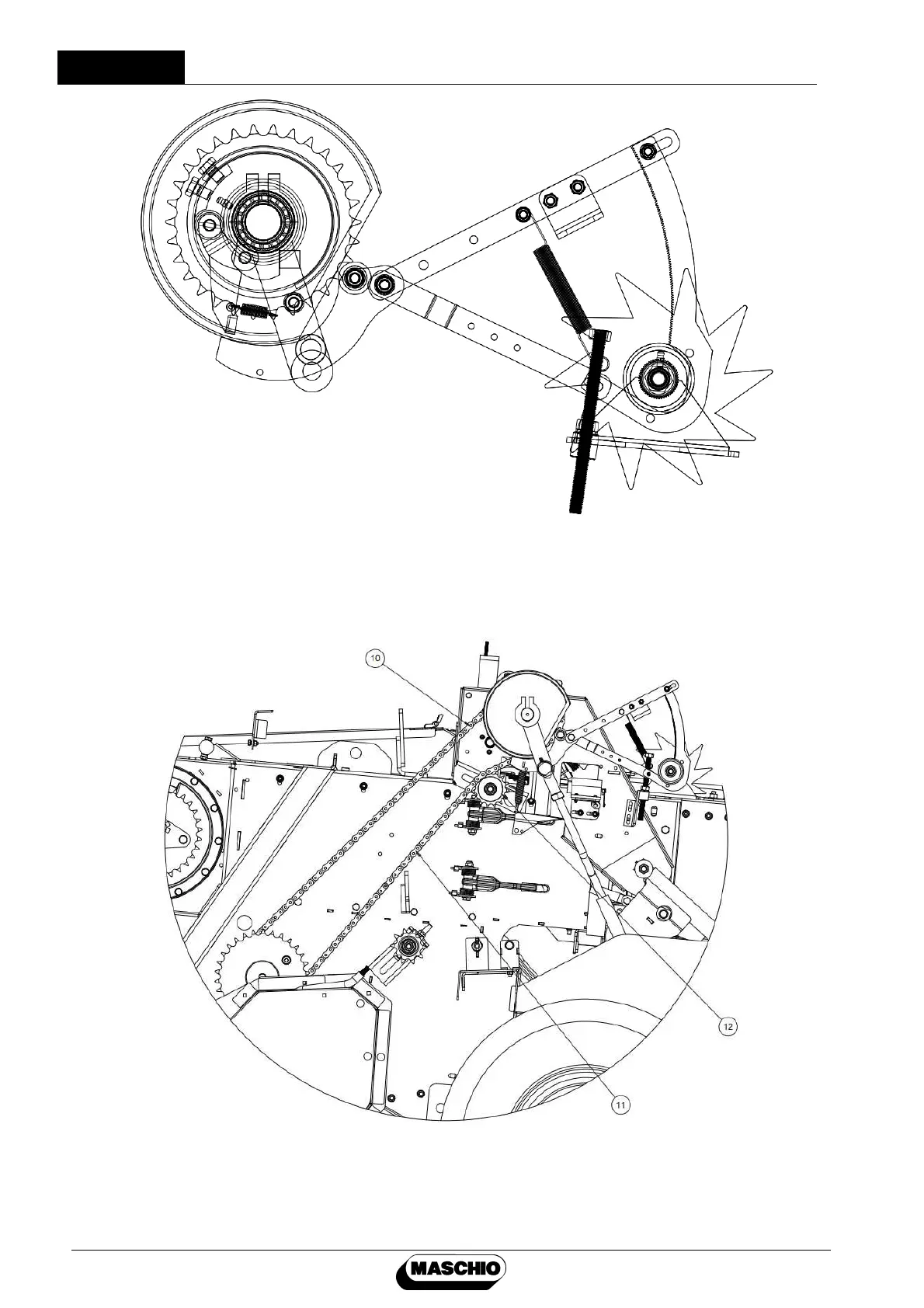

Figure 8
• Run the ASA60-H Knotter set chain (10) over knotter set drive gear and connect from
no (11). Once installed, tension the chain using tension gear no (12). (Figure 9)
Figure 9
