Maschio PITAGORA INLINE - Page 61

OPERATOR'S MANUAL
ENGLISH
Cod. EKE0002OM
61

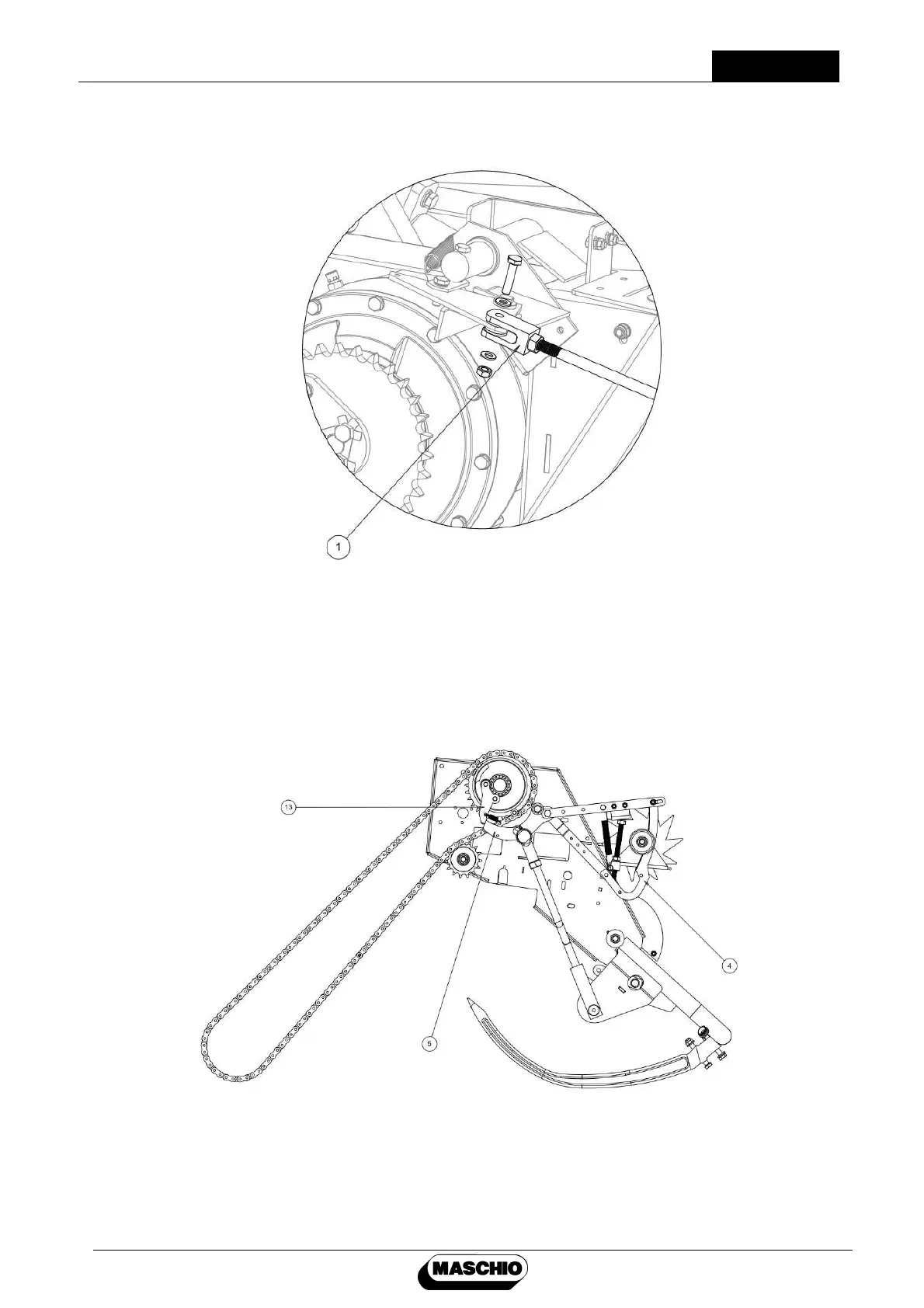

• Pull piston brake pivot backwards and re-install the fork (1) driving piston brake pivot
(Figure 10)
Figure 10
• Turn the flywheel 1 cycle before threading twines into needles, tap the bale size
adjustment seat (5) against automatic latch (13), and bring the bale size adjustment
mechanism (4) to normal position. (Figure 11)
Figure 11
