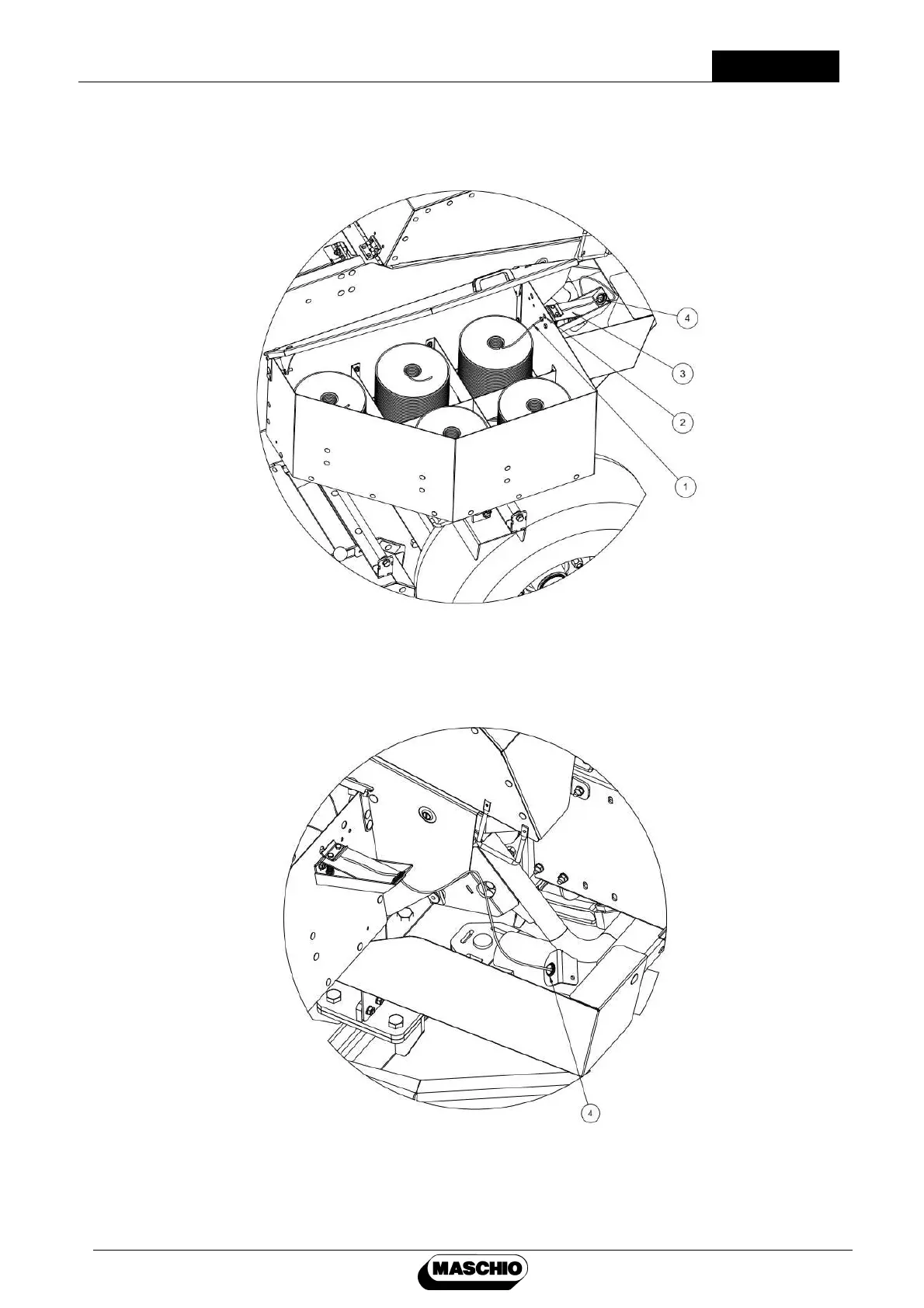

Thread the bale twine (1) through twine eyelet provided on twine cabinet (2). Then
pass the bale twine under spring clamp of the butterfly clamp (3) and thread through twine
cup (4) located on the butterfly clamp. (Figure 2)
Figure 2
After threading the bale twine through twine cup on the butterfly clamp, thread it
through twine cup located on needle saddle (4). (Figure 3)
Figure 3
