Figure 2
Dimensions of the 4th bale is measured and weighed after the first bale for weight and
size adjustment. If the size and weight do not match desired values, make re-adjustment and
measure bale size and weight in the 8th bale. These settings will change when switched
to another field, therefore weight and size adjustments must be re-arranged.
You can make bale density adjustment using density control rails (screw tightening
pivots) (1) located in rear part of the tail. You can adjust bale density and weight by turning
butterfly handles on control rails in clockwise direction, or reduce bale density and weight by
turning counter-clockwise. You will direct C Twist Compression Plate (3) up – down by
turning action. (Figure 3). When you begin baling process with an empty bale chamber, turn
density control levers until there is no tension on the spring. When there is too much
tension on density control rails, twine breaks from the twine retainer. This will prevent
knotting of the bale. Additionally, excessive bale density may break flywheel shear
bolt. If the crop condition or type does not change, there will be no need to re-adjust bale
density control system.

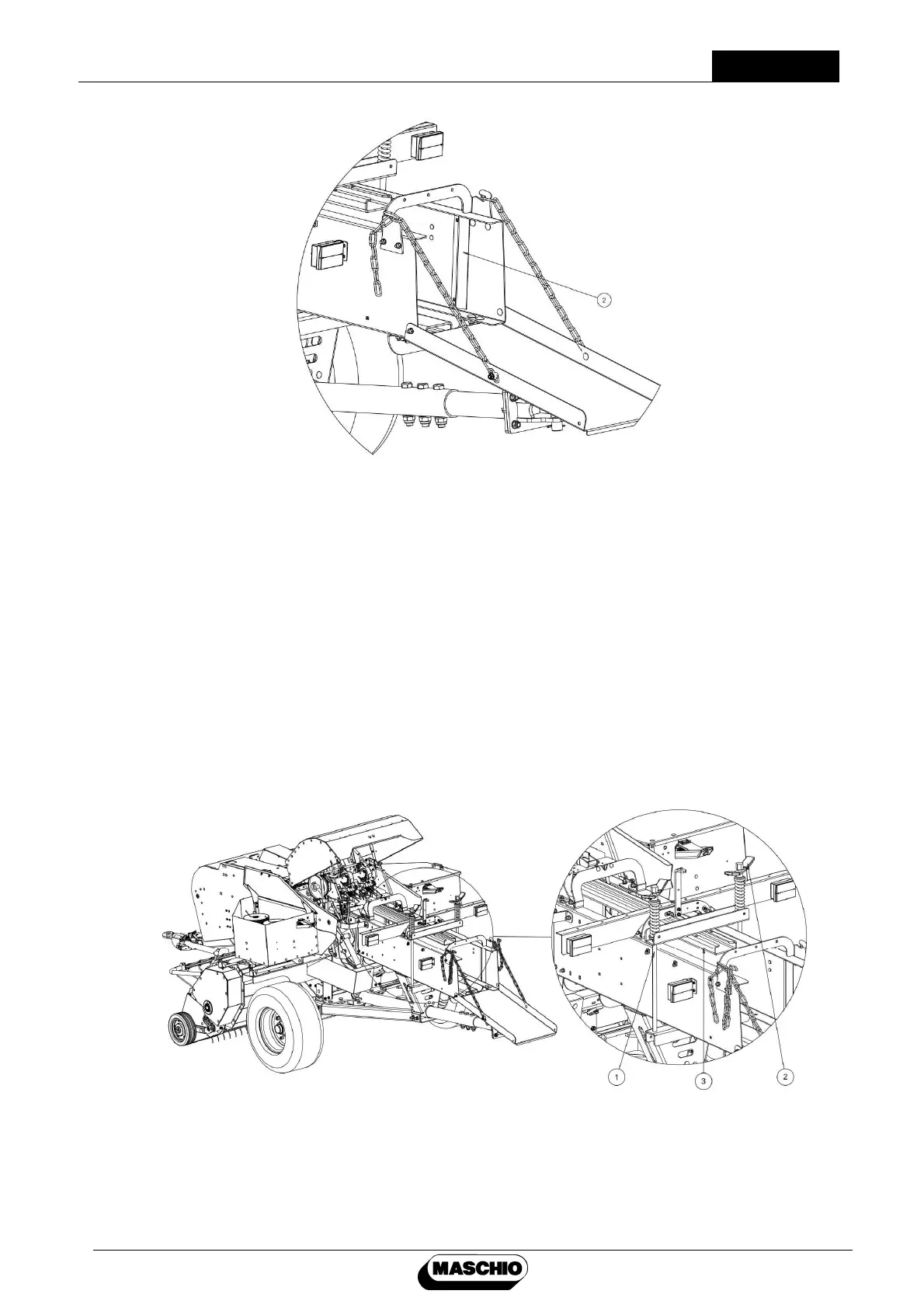

Figure 3
