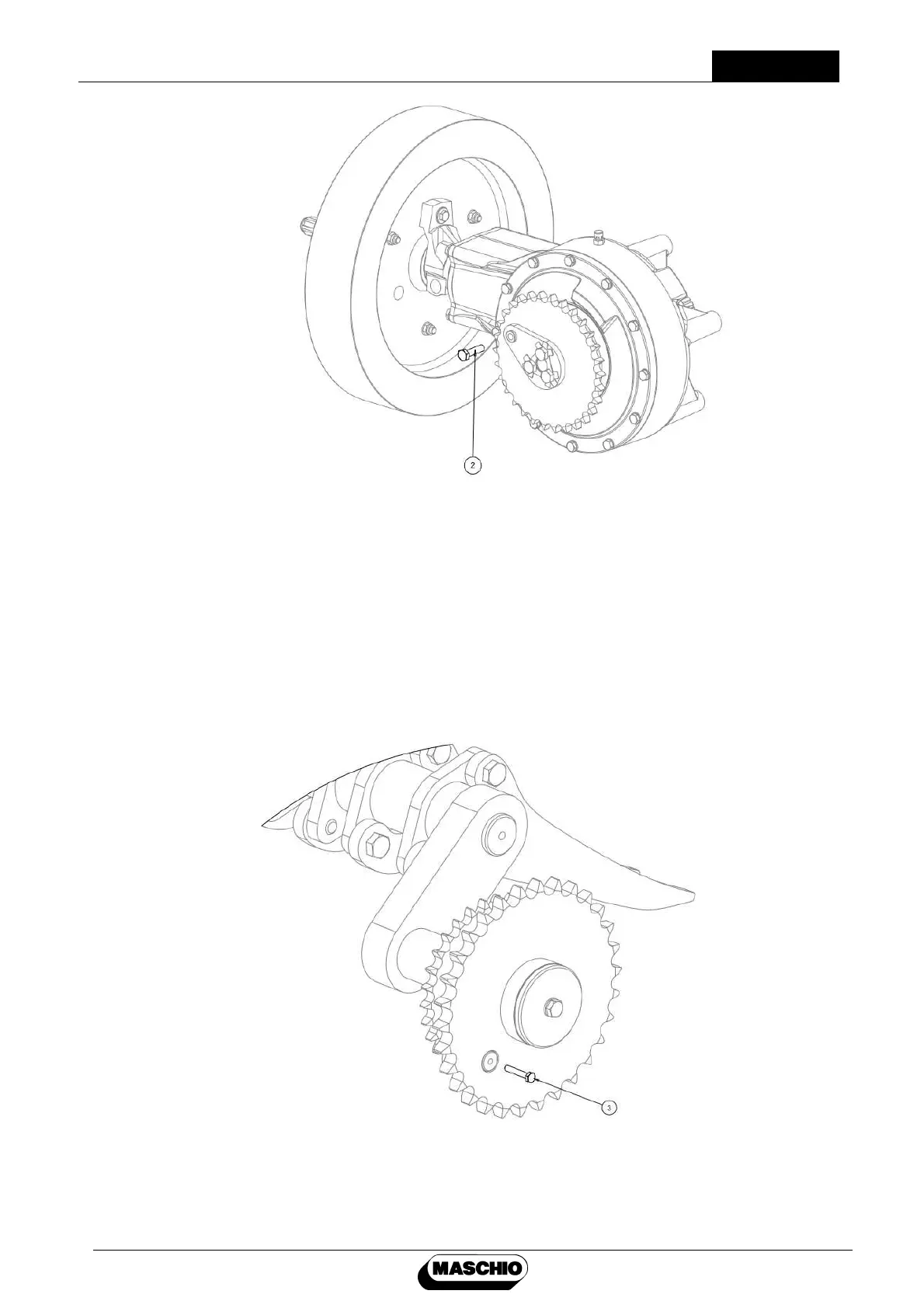

Figure 2
Hayfork Unit
There is 1 each M10X65mm knotter set shear bolt (3) on the hayfork unit. If it breaks,
first turn the chain gear located on hayfork unit and remove broken bolt pieces from shear
bolt bushings. Then, align the shear bolt bushing hole located on hayfork unit shear flange
with the shear bolt bushing hole on the hayfork chain gear, and insert M6X35mm knotter set
shear bolt through both holes. (Figure 3)
Figure 3
